Stainless Steel 304/304L,316/316L,904L Flareless Union Tee Fittings Manufacturer
Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Union Tee Fittings Manufacturer & Exporter
Duplex Steel 2205, Brass Alloy Instrumentation Flareless Union Tee Fittings Supplier & Trader
Stainless Steel 304/304L Flareless Union Tee Fittings, Stainless Steel 316/316L Flareless Union Tee, Stainless Steel 904L Flareless Union Tee, Inconel 600 Flareless Union Tee Fittings, Inconel 625 Flareless Union Tee, Incoloy 800/800H Flareless Union Tee Fittings, Monel 400 Flareless Union Tee, Monel K500 Flareless Union Tee Fittings, Nickel 200 Flareless Union Tee Fittings, Nickel 201 Flareless Union Tee, Hastelloy C22 Flareless Union Tee Fittings, Hastelloy C276 Flareless Union Tee, Duplex Steel 2205 Flareless Union Tee, Brass Alloy Flareless Union Tee

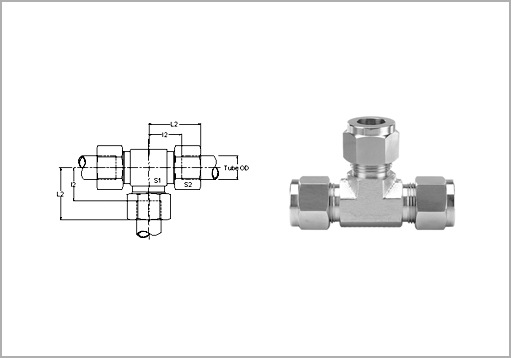

Specification for Flareless Union Tee Fittings
Union Tee |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 12 | 14 | 27 | 12 | T6L | |||
| 8 | 14 | 17 | 29 | 14 | T8L | ||||||
| 10 | 17 | 19 | 30 | 15 | T10L | ||||||
| 12 | 19 | 22 | 32 | 17 | T12L | ||||||
| 15 | 22 | 27 | 36 | 21 | T15L | ||||||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | T18L | |||||
| 22 | 30 | 36 | 44 | 27.5 | T22L | ||||||
| 100 Kg/cm2 | 28 | 36 | 41 | 47 | 30.5 | T28L | |||||
| 35 | 46 | 50 | 56 | 34.54 | T35L | ||||||
| 42 | 55 | 60 | 63 | 40 | T42L | ||||||
| H | 630 Kg/cm2 | 6 | 14 | 17 | 31 | 16 | T6H | ||||
| 8 | 17 | 19 | 32 | 17 | T8H | ||||||
| 10 | 19 | 22 | 34 | 17.5 | T10H | ||||||
| 12 | 22 | 24 | 38 | 21.5 | T12H | ||||||
| 14 | 22 | 27 | 40 | 22 | T14H | ||||||
| 400 Kg/cm2 | 16 | 24 | 30 | 43 | 24.5 | T16H | |||||
| 20 | 30 | 36 | 48 | 26.5 | T20H | ||||||
| 25 | 36 | 46 | 54 | 30 | T25H | ||||||
| 250 Kg/cm2 | 30 | 44 | 50 | 62 | 35.5 | T30H | |||||
| 38 | 55 | 60 | 72 | 41 | T38H | ||||||
Union Tee |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |||||
| INCH SI ZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.26 | 0.62 | 4T | ||||
| 3/8" | 0.75 | 0.75 | 1.22 | 0.59 | 6T | ||||||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 8T | ||||||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 12T | ||||||
| 1" | 1.42 | 1.75 | 2.12 | 1.18 | 16T | ||||||
| 3000 PSI | 1 1/4" | 1.73 | 1.97 | 2.44 | 1.38 | 20T | |||||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 24T | ||||||
| 2000 PSI | 2" | 2.5 | 2.75 | 3.07 | 1.91 | 32T | |||||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.87 | 1.06 | 1.57 | 0.87 | 4TNB | ||||
| 3/8" | 1.06 | 1.25 | 1.73 | 0.97 | 6TNB | ||||||
| 1/2" | 1.18 | 1.42 | 1.88 | 1.04 | 8TNB | ||||||
| 3/4" | 1.41 | 1.61 | 2.11 | 1.14 | 12TNB | ||||||
| 3000 PSI | 1" | 1.81 | 2.05 | 2.48 | 1.5 | 16TNB | |||||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 20TNB | ||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |
| INCH SI ZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.26 | 0.62 | 4T |
| 3/8" | 0.75 | 0.75 | 1.22 | 0.59 | 6T | ||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 8T | ||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 12T | ||
| 1" | 1.42 | 1.75 | 2.12 | 1.18 | 16T | ||
| 3000 PSI | 1 1/4" | 1.73 | 1.97 | 2.44 | 1.38 | 20T | |
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 24T | ||
| 2000 PSI | 2" | 2.5 | 2.75 | 3.07 | 1.91 | 32T | |
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.87 | 1.06 | 1.57 | 0.87 | 4TNB |
| 3/8" | 1.06 | 1.25 | 1.73 | 0.97 | 6TNB | ||
| 1/2" | 1.18 | 1.42 | 1.88 | 1.04 | 8TNB | ||
| 3/4" | 1.41 | 1.61 | 2.11 | 1.14 | 12TNB | ||
| 3000 PSI | 1" | 1.81 | 2.05 | 2.48 | 1.5 | 16TNB | |
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 20TNB | ||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.14 | 2.05 | 24TNB | |
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.14 | 2.05 | 24TNB | |
Exports for Flareless Union Tee Fittings
Metal Ministry inc. exports Flareless Union Tee in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Flareless Union Tee in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Flareless Union Tee feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
