Flareless Male Connector With Elastomeric Seal

Stainless Steel 304/304L,316/316L,904L Flareless Male Connector With Elastomeric Seal Manufacturer

Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Male Connector With Elastomeric Seal Manufacturer & Exporter

Duplex Steel 2205, Brass Alloy Instrumentation Flareless Male Connector With Elastomeric Seal Fittings Supplier & Trader

METAL MINISTRY INC. is one of the leading Flareless Male Connector With Elastomeric Seal Fittings Manufacturer, Exporter & Supplier. Our Male Connectors With Elastomeric Seal are exceptionally sought after and have gotten affirmation from the customers of worldwide market for their well execution and quality. These are outlined in view of appropriateness of many sorts of apparatuses. These connector seals are fabricated with premium quality crude materials to guarantee sturdiness and quality. Many types of these seals are:

Male Connector (Stud End Parallel Thread) With Elastomeric Seal Metric Od Tubes X BSP Thread-G Male Connector (Stud End Parallel Thread) With Elastomeric Seal Inch Od Tubes X BSP Thread-G Male Connector (Stud End Parallel Thread) With Elastomeric Seal Metric Od Tubes X BSP Thread-G
Flareless Male Connector With Elastomeric Seal Exporter

Stainless Steel 304/304L Flareless Male Connector With Elastomeric Seal, Stainless Steel 316/316L Flareless Male Connector With Elastomeric Seal, Stainless Steel 904L Flareless Male Connector With Elastomeric Seal, Inconel 600 Flareless Male Connector With Elastomeric Seal, Inconel 625 Flareless Male Connector With Elastomeric Seal, Incoloy 800/800H Flareless Male Connector With Elastomeric Seal, Monel 400 Flareless Male Connector With Elastomeric Seal, Monel K500 Flareless Male Connector With Elastomeric Seal, Nickel 200 Flareless Male Connector With Elastomeric Seal, Nickel 201 Flareless Male Connector With Elastomeric Seal, Hastelloy C22 Flareless Male Connector With Elastomeric Seal, Hastelloy C276 Flareless Male Connector With Elastomeric Seal, Duplex Steel 2205 Flareless Male Connector With Elastomeric Seal, Brass Alloy Flareless Male Connector With Elastomeric Seal

Specification for Flareless Male Connector With Elastomeric Seal

Male Connector (Stud End Parallel Thread) With Elastomeric Seal Metric Od Tubes X BSP Thread-G

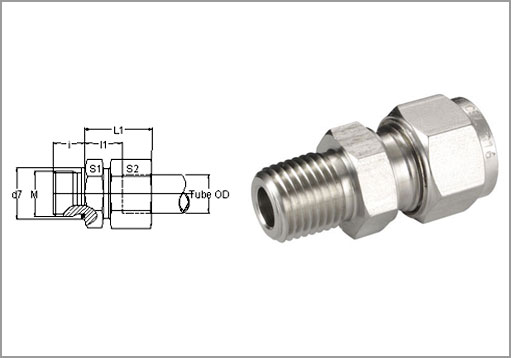

SERIES TUBE OD. S1 S2 L1 l1 i d7 BSP
THREAD
M PART NO.
METRIC
SIZE TUBE		 L 250
Kg/cm2		 6 14 14 23 8.5 8 14 M10 X 1 MC6L-M10-es
8 17 17 25 10 12 17 M12 X 1.5 MC8L-M12-es
10 19 19 26 11 12 19 M14 X 1.5 MC10L-M14-es
12 22 22 27.5 12.5 12 22 M16 X 1.5 MC12L-M16-es
15 24 27 28.5 13.5 12 24 M18 X 1.5 MC15L-M18-es
160
Kg/cm2		 18 27 32 31 14.5 14 27 M22 X 1.5 MC18L-M22-es
22 32 36 33 16.5 16 32 M26 X 1.5 MC22L-M26-es
100
Kg/cm2		 28 41 41 34 17.5 18 40 M33 X 2 MC28L-M33-es
35 50 50 39 17.5 20 50 M42 X 2 MC35L-M42-es
42 55 60 42 19 22 55 M48 X 2 MC42L-M48-es
H 630
Kg/cm2		 6 17 17 28 13 12 17 M12 X 1.5 MC6H-M12-es
8 19 19 30 15 12 19 M14 X 1.5 MC8H-M14-es
10 22 22 31.5 15 12 22 M16 X 1.5 MC10H-M16-es
12 24 24 33.5 17 12 24 M18 X 1.5 MC12H-M18-es
14 27 27 37 19 14 27 M20 X 1.5 MC14H-M20-es
400
Kg/cm2		 16 27 30 37 18.5 14 27 M22 X 1.5 MC16H-M22-es
20 32 36 43 20.5 16 32 M27 X 1.5 MC20H-M27-es
25 41 46 47 23 18 40 M33 X 2 MC25H-M33-es
250
Kg/cm2		 30 50 50 50 23.5 20 50 M42 X 2 MC30H-M42-es
38 55 60 57 26 22 55 M48 X 2 MC38H-M48-es

Male Connector (Stud End Parallel Thread) With Elastomeric Seal Inch Od Tubes X BSP Thread-G
Male Connector (Stud End Parallel Thread)
With Elastomeric Seal Inch Od Tubes X BSP Thread-G
SERIES TUBE OD. S1 S2 L1 l1 i BSP
THREAD
G PART NO.
INCH
OD TUBE		 6000 PSI 1/4" 0.75 0.67 1.1 0.47 0.43 0.75 1/4" 4MCG-es
3/8" 0.87 0.75 1.17 0.54 0.5 0.87 3/8" 6MCG-es
1/2" 1.06 0.94 1.26 0.59 0.63 1.06 1/2" 8MCG-es
3/4" 1.26 1.25 1.42 0.59 0.75 1.26 3/4" 12MCG-es
1" 1.75 1.75 1.69 0.75 0.87 1.58 1" 16MCG-es
3000 PSI 2000 PSI 1 1/4" 1.97 1.97 1.9 0.83 0.98 1.97 1 1/4" 20MCG-es
1 1/2" 2.17 2.36 2.2 0.98 1 2.17 1 1/2" 24MCG-es
2" 2.84 2.75 2.22 1.05 1 2.84 2" 32MCG-es
NB TUBE 6000 PSI 1/4" 0.94 1.06 1.26 0.55 0.43 0.9 1/4" 4MCNBGes
3/8" 1.06 1.25 1.44 0.61 0.5 0.98 3/8" 6MCNBGes
1/2" 1.26 1.41 1.41 0.57 0.63 1.16 1/2" 8MCNBGes
3/4" 1.41 1.61 1.61 0.67 0.75 1.37 3/4" 12MCNBGes
3000 PSI 1" 1.79 2.03 1.75 0.76 0.86 1.73 1" 16MCNBGes
1 1/4" 2.16 2.36 2 0.86 0.98 2.08 1 1/4" 20MCNBGes
2000 PSI 1 1/2" 2.5 2.5 2.11 1 1 2.36 1 1/2" 24MCNBGes

Male Connector (Stud End Parallel Thread) With Elastomeric Seal Metric Od Tubes X BSP Thread-G
SERIES TUBE OD. S1 S2 L1 l1 i d7 BSP
THREAD
G PART NO.
METRIC
SIZE TUBE		 L 250
Kg/cm2		 6 14 14 23 8.5 8 14 1/8" MC6L-G2-es
8 19 17 25 10 12 19 1/4" MC8L-G4-es
10 19 19 26 11 12 19 1/4" MC10L-G4-es
12 22 22 27.5 12.5 12 22 3/8" MC12L-G6-es
15 27 27 29 14 14 27 1/2" MC15L-G8-es
160
Kg/cm2		 18 27 32 31 14.5 14 27 1/2" MC18L-G8-es
22 32 36 33 16.5 16 32 3/4" MC22L-G12-es
100
Kg/cm2		 28 41 41 34 17.5 18 40 1" MC28L-G28-es
35 50 50 39 17.5 20 50 1 1/4" MC35L-G20-es
42 55 60 42 19 22 55 1 1/2" MC42L-G24-es
H 630
Kg/cm2		 6 19 17 28 13 12 19 1/4" MC6H-G4-es
8 19 19 30 15 12 19 1/4" MC8H-G4-es
10 22 22 31.5 15 12 22 3/8" MC10H-G6-es
12 22 24 32.5 17 12 22 3/8" MC12H-G6-es
14 27 27 37 19 14 27 1/2" MC14H-G8-es
400
Kg/cm2		 16 27 30 37 18.5 14 27 1/2' MC16H-G8e-s
20 32 36 43 20.5 16 32 3/4" MC20H-G12-es
25 41 46 47 23 18 40 1" MC25H-G16-es
250
Kg/cm2		 30 50 50 50 23.5 20 50 1 1/4" MC30H-G20-es
38 55 60 57 26 22 55 1 1/2" MC38H-G24-es

Exports for Flareless Male Connector With Elastomeric Seal

Metal Ministry inc. exports Flareless Male Connector With Elastomeric Seal in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Flareless Male Connector With Elastomeric Seal in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Flareless Male Connector With Elastomeric Seal feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
