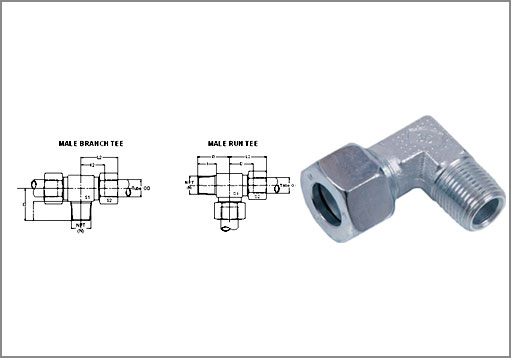

Specification for Flareless Male Elbow Taper Fittings
Male Elbow Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | l2 | l3 | i | NPT THREAD |
|||
| N | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 12 | 14 | 27 | 12 | 20 | 9.97 | 1/8" | ME6L-N2 |
| 6 | 14 | 14 | 29 | 14 | 26 | 15.1 | 1/4" | ME6L-N4 | |||
| 8 | 14 | 17 | 29 | 14 | 26 | 15.1 | 1/4" | ME8L-N4 | |||
| 10 | 14 | 19 | 30 | 15 | 27 | 15.1 | 1/4" | ME10L-N4 | |||
| 10 | 17 | 19 | 30 | 15 | 28 | 15.26 | 3/8" | ME10L-N6 | |||
| 12 | 17 | 22 | 32 | 17 | 28 | 15.26 | 3/8" | ME12L-N6 | |||
| 12 | 19 | 22 | 33 | 18 | 34 | 19.85 | 1/2" | ME12L-N8 | |||
| 15 | 22 | 27 | 36 | 21 | 34 | 19.85 | 1/2" | ME15L-N8 | |||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | 36 | 19.85 | 1/2" | ME18L-N8 | ||
| H | 630 Kg/cm2 | 6 | 14 | 17 | 31 | 16 | 26 | 15.1 | 1/4" | ME6H-N4 | |
| 8 | 17 | 19 | 32 | 17 | 27 | 15.1 | 1/4" | ME8H-N4 | |||
| 10 | 19 | 22 | 34 | 17.5 | 28 | 15.26 | 3/8" | ME10H-N6 | |||
| 12 | 22 | 24 | 38 | 21.5 | 28 | 15.26 | 3/8" | ME12H-N6 | |||
| 12 | 22 | 24 | 39 | 22.5 | 34 | 19.85 | 1/2" | ME12H-N8 | |||
| 14 | 22 | 27 | 40 | 22 | 34 | 19.85 | 1/2" | ME14H-N8 | |||
| 400 Kg/cm2 | 16 | 24 | 30 | 43 | 24.5 | 36 | 19 | 1/2" | ME16H-N8 | ||
Male Elbow Taper |
|||||||||||
| Male Elbow (Stud End Taper Thread) Metric Od Tubes X BSPT Thread-R |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | l2 | l3 | i | BSPT THREAD |
|||
| R | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 12 | 14 | 27 | 12 | 20 | 10 | 1/8" | ME6L-R2 |
| 6 | 14 | 14 | 29 | 14 | 24 | 14 | 1/4" | ME6L-R4 | |||
| 8 | 14 | 17 | 29 | 14 | 26 | 14 | 1/4" | ME8L-R4 | |||
| 10 | 14 | 19 | 30 | 15 | 27 | 14 | 1/4" | ME10L-R4 | |||
| 10 | 17 | 19 | 30 | 15 | 27 | 14 | 3/8" | ME10L-R6 | |||
| 12 | 17 | 22 | 32 | 17 | 28 | 14 | 3/8" | ME12L-R6 | |||
| 12 | 19 | 22 | 33 | 18 | 30 | 16 | 1/2" | ME12L-R8 | |||
| 15 | 22 | 27 | 36 | 21 | 34 | 16 | 1/2" | ME15L-R8 | |||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | 36 | 16 | 1/2" | ME18L-R8 | ||
| H | 630 Kg/cm2 | 6 | 14 | 17 | 31 | 16 | 26 | 14 | 1/4" | ME6H-R4 | |
| 8 | 17 | 19 | 32 | 17 | 27 | 14 | 1/4" | ME8H-R4 | |||
| 400 Kg/cm2 | 10 | 19 | 22 | 34 | 17.5 | 28 | 14 | 3/8" | ME10H-R6 | ||
| 12 | 22 | 24 | 38 | 21.5 | 28 | 14 | 3/8" | ME12H-R6 | |||
| 12 | 22 | 24 | 39 | 22.5 | 32 | 16 | 1/2" | ME12H-R8 | |||
| 14 | 22 | 27 | 40 | 22 | 32 | 16 | 1/2" | ME14H-R8 | |||
| 16 | 24 | 30 | 43 | 24.5 | 32 | 16 | 1/2" | ME16H-R8 | |||
Male Elbow Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | l3 | i | NPT THREAD |
|||
| N | PART NO. | ||||||||||
| INCH SIZE OD TUBE NOM. BORE TUBE |
6000 PSI | 6 | 12 | 14 | 27 | 12 | 20 | 9.97 | 1/8" | ME6L-N2 | |
| 6 | 14 | 14 | 29 | 14 | 26 | 15.1 | 1/4" | ME6L-N4 | |||
| 8 | 14 | 17 | 29 | 14 | 26 | 15.1 | 1/4" | ME8L-N4 | |||
| 10 | 14 | 19 | 30 | 15 | 27 | 15.1 | 1/4" | ME10L-N4 | |||
| 10 | 17 | 19 | 30 | 15 | 28 | 15.26 | 3/8" | ME10L-N6 | |||
| 12 | 17 | 22 | 32 | 17 | 28 | 15.26 | 3/8" | ME12L-N6 | |||
| 12 | 19 | 22 | 33 | 18 | 34 | 19.85 | 1/2" | ME12L-N8 | |||
| 3/4" | 1.18 | 1.25 | 1.87 | 1.04 | 1.61 | 0.74 | 3/4" | 12MEN | |||
| 1" | 1.41 | 1.75 | 2.12 | 1.18 | 1.89 | 0.94 | 1" | 16MEN | |||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 2.48 | 1.41 | 2.28 | 0.94 | 1 1/4" | 20MEN | ||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 2.4 | 1 | 1 1/2" | 24MEN | |||
| 6000 PSI | 1/4" | 0.87 | 1.06 | 1.57 | 0.87 | 1.26 | 0.55 | 1/4" | 4MENBN | ||
| 1/4" | 0.94 | 1.06 | 1.5 | 0.78 | 1.37 | 0.55 | 3/8" | 4-6MENBN | |||
| 3/8" | 1.06 | 1.25 | 1.69 | 0.93 | 1.42 | 0.55 | 3/8" | 6MENBN | |||
| 3/8" | 1.06 | 1.25 | 1.77 | 1.01 | 1.61 | 0.74 | 1/2" | 6-8MENBN | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.74 | 1/2" | 8MENBN | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.74 | 3/4" | 8-12MENBN | |||
| 3/4" | 1.42 | 1.61 | 2.1 | 1.14 | 1.81 | 0.74 | 3/4" | 12MENBN | |||
| 3000 PSI | 1" | 1.81 | 2.04 | 2.28 | 1.3 | 2.31 | 0.94 | 1" | 16MENBN | ||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 2.51 | 0.97 | 1 1/4" | 20MENBN | |||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.11 | 1.89 | 2.83 | 1 | 1 1/2" | 24MENBN | ||
Male Elbow Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | l3 | i | NPT THREAD |
|||
| R | PART NO. | ||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.55 | 0.67 | 1.26 | 0.63 | 0.87 | 0.39 | 1/8" | 4-2MER | |
| 1/4" | 0.55 | 0.67 | 1.26 | 0.63 | 1.02 | 0.55 | 1/4" | 4MER | |||
| 3/8" | 0.67 | 0.75 | 1.22 | 0.59 | 1.06 | 0.55 | 1/4" | 6-4MER | |||
| 3/8" | 0.67 | 0.75 | 1.22 | 0.59 | 1.06 | 0.55 | 3/8" | 6MER | |||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 1.1 | 0.55 | 3/8" | 8-6MER | |||
| 1/2" | 0.87 | 0.94 | 1.61 | 0.94 | 1.3 | 0.63 | 1/2" | 8MER | |||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 1.49 | 0.63 | 1/2" | 12-8MER | |||
| 3/4" | 1.18 | 1.25 | 1.87 | 1.04 | 1.61 | 0.74 | 3/4" | 12MER | |||
| 1" | 1.41 | 1.75 | 2.12 | 1.18 | 1.89 | 0.87 | 1" | 16MER | |||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 2.48 | 1.41 | 2.28 | 1 | 1 1/4" | 20MER | ||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 2.4 | 1 | 1 1/2" | 24MER | |||
| 2000 PSI | 2" | 2.5 | 2.5 | 3.66 | 2.12 | 2.55 | 1 | 2" | 32MER | ||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.87 | 1.06 | 1.57 | 0.87 | 1.18 | 0.43 | 1/4" | 4MENBR | |
| 1/4" | 0.94 | 1.06 | 1.5 | 0.78 | 1.25 | 0.5 | 3/8" | 4-6MENBR | |||
| 3/8" | 1.06 | 1.25 | 1.69 | 0.93 | 1.42 | 0.55 | 3/8" | 6MENBR | |||
| 3/8" | 1.06 | 1.25 | 1.77 | 1.01 | 1.5 | 0.63 | 1/2" | 6-8MENBR | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.63 | 1/2" | 8MENBR | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.69 | 0.75 | 3/4" | 8-12MENBR | |||
| 3/4" | 1.42 | 1.61 | 2.1 | 1.14 | 1.81 | 0.75 | 3/4" | 12MENBR | |||
| 3000 PSI | 1" | 1.81 | 2.04 | 2.28 | 1.3 | 2.24 | 0.87 | 1" | 16MENBR | ||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 2.56 | 1 | 1 1/4" | 20MENBR | |||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.11 | 1.89 | 2.83 | 1 | 1 1/2" | 24MENBR | ||
