Stainless Steel 304/304L,316/316L,904L Flareless Male Elbow Parallel Fittings Manufacturer
Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Male Elbow Parallel Fittings Manufacturer & Exporter
Duplex Steel 2205, Brass Alloy Instrumentation Flareless Male Elbow Parallel Fittings Supplier & Trader
Stainless Steel 304/304L Flareless Male Elbow Parallel Fittings, Stainless Steel 316/316L Flareless Male Elbow Parallel, Stainless Steel 904L Flareless Male Elbow Parallel, Inconel 600 Flareless Male Elbow Parallel Fittings, Inconel 625 Flareless Male Elbow Parallel, Incoloy 800/800H Flareless Male Elbow Parallel Fittings, Monel 400 Flareless Male Elbow Parallel, Monel K500 Flareless Male Elbow Parallel Fittings, Nickel 200 Flareless Male Elbow Parallel Fittings, Nickel 201 Flareless Male Elbow Parallel, Hastelloy C22 Flareless Male Elbow Parallel Fittings, Hastelloy C276 Flareless Male Elbow Parallel, Duplex Steel 2205 Flareless Male Elbow Parallel, Brass Alloy Flareless Male Elbow Parallel

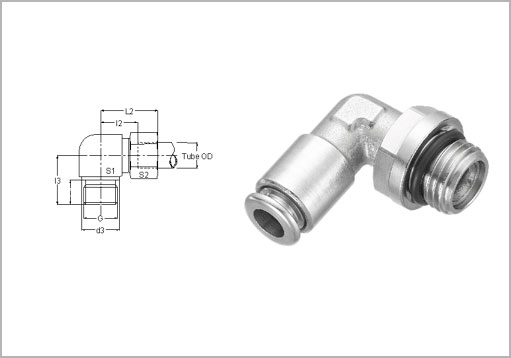

Specification for Flareless Male Elbow Parallel Fittings
Male Elbow Parallel |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | BSP THREAD | |||
| G | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 160 Kg/cm2 | 22 | 32 | 36 | 44 | 27.5 | 42 | 16 | 3/4" | ME22L-G12 |
| 100 Kg/cm2 | 28 | 41 | 41 | 47 | 30.5 | 48 | 18 | 1" | ME28L-G16 | ||
| 35 | 50 | 50 | 56 | 34.5 | 54 | 20 | 1 1/4" | ME35L-G20 | |||
| 42 | 55 | 60 | 63 | 40 | 61 | 22 | 1 1/2" | ME42L-G24 | |||
| H | 400 Kg/cm2 | 20 | 32 | 36 | 48 | 26.5 | 42 | 16 | 3/4" | ME20H-G12 | |
| 25 | 41 | 46 | 54 | 30 | 48 | 18 | 1" | ME25H-G16 | |||
| 250 Kg/cm2 | 30 | 50 | 50 | 62 | 35.5 | 54 | 20 | 1 1/4" | ME30H-G20 | ||
| 38 | 55 | 60 | 72 | 41 | 61 | 22 | 1 1/2" | ME38H-G24 | |||
Male Elbow Parallel |
||||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | BSP THREAD | ||||
| G | PART NO. | |||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.18 | 0.59 | 0.88 | 0.38 | 1/8" | 4-2MEG | ||
| 1/4" | 0.75 | 0.67 | 1.32 | 0.69 | 0.94 | 0.43 | 1/4" | 4MEG | ||||
| 3/8" | 0.75 | 0.75 | 1.22 | 0.59 | 0.98 | 0.43 | 1/4" | 6-4MEG | ||||
| 3/8" | 0.87 | 0.75 | 1.29 | 0.94 | 1.06 | 0.5 | 3/8" | 6MEG | ||||
| 1/2" | 0.87 | 0.94 | 1.54 | 1.18 | 1.18 | 0.5 | 3/8" | 8-6MEG | ||||
| 1/2" | 1.06 | 0.94 | 1.5 | 1.14 | 1.3 | 0.63 | 1/2" | 8MEG | ||||
| 3/4" | 1.06 | 1.25 | 1.81 | 1.38 | 1.42 | 0.63 | 1/2" | 12-8MEG | ||||
| 3/4" | 1.25 | 1.25 | 1.93 | 1.5 | 1.61 | 0.75 | 3/4" | 12MEG | ||||
| 1" | 1.42 | 1.75 | 1.93 | 1.46 | 1.89 | 0.75 | 3/4" | 16-12MEG | ||||
| 1" | 1.61 | 1.75 | 2.13 | 1.65 | 1.97 | 0.87 | 1" | 16MEG | ||||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 2.48 | 1.97 | 2.17 | 0.87 | 1" | 20-16MEG | |||
| 1 1/4" | 1.97 | 1.97 | 2.6 | 2.08 | 2.32 | 0.98 | 1 1/4" | 20MEG | ||||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 2.24 | 2.4 | 1 | 1 1/2" | 24MEG | ||||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.87 | 1.06 | 1.42 | 0.7 | 1.18 | 0.43 | 1/4" | 4MENBG | ||
| 1/4" | 0.94 | 1.06 | 1.5 | 0.78 | 1.25 | 0.5 | 3/8" | 4-6MENBG | ||||
| 3/8" | 1.06 | 1.25 | 1.69 | 0.93 | 1.38 | 0.5 | 3/8" | 6MENBG | ||||
| 3/8" | 1.06 | 1.25 | 1.77 | 1.01 | 1.5 | 0.63 | 1/2" | 6-8MENBG | ||||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.63 | 1/2" | 8MENBG | ||||
| 1/2" | 1.25 | 1.41 | 1.97 | 1.12 | 1.69 | 0.75 | 3/4" | 8-12MENBG | ||||
| 3/4" | 1.42 | 1.61 | 2.03 | 1.06 | 1.97 | 0.75 | 3/4" | 12MENBG | ||||
| 3000 PSI | 1" | 1.81 | 2.04 | 2.4 | 1.42 | 2.24 | 0.87 | 1" | 16MENBG | |||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 2.56 | 1 | 1 1/4" | 20MENBG | ||||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.15 | 2.05 | 2.83 | 1 | 1 1/2" | 24MENBG | |||
Exports for Flareless Male Elbow Parallel Fittings
Metal Ministry inc. exports Flareless Male Elbow Parallel in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Flareless Male Elbow Parallel in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Flareless Male Elbow Parallel feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
