Stainless Steel 304/304L,316/316L,904L Flareless Union Elbow Fittings Manufacturer
Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Union Elbow Fittings Manufacturer & Exporter
Duplex Steel 2205, Brass Alloy Instrumentation Flareless Union Elbow Fittings Supplier & Trader
Stainless Steel 304/304L Flareless Union Elbow Fittings, Stainless Steel 316/316L Flareless Union Elbow, Stainless Steel 904L Flareless Union Elbow, Inconel 600 Flareless Union Elbow Fittings, Inconel 625 Flareless Union Elbow, Incoloy 800/800H Flareless Union Elbow Fittings, Monel 400 Flareless Union Elbow, Monel K500 Flareless Union Elbow Fittings, Nickel 200 Flareless Union Elbow Fittings, Nickel 201 Flareless Union Elbow, Hastelloy C22 Flareless Union Elbow Fittings, Hastelloy C276 Flareless Union Elbow, Duplex Steel 2205 Flareless Union Elbow, Brass Alloy Flareless Union Elbow
Specification for Flareless Union Elbow Fittings

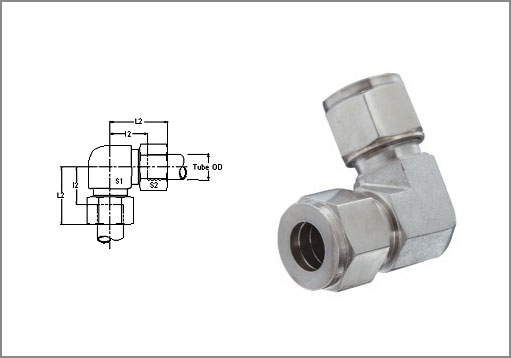

Union Elbow |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 12 | 14 | 27 | 12 | E6L | |||
| 8 | 14 | 17 | 29 | 14 | E8L | ||||||
| 10 | 17 | 19 | 30 | 15 | E10L | ||||||
| 12 | 19 | 22 | 32 | 17 | E12L | ||||||
| 15 | 22 | 27 | 36 | 21 | E15L | ||||||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | E18L | |||||
| 22 | 30 | 36 | 44 | 27.5 | E22L | ||||||
| 100 Kg/cm2 | 28 | 36 | 41 | 47 | 30.5 | E28L | |||||
| 35 | 46 | 50 | 56 | 34.54 | E35L | ||||||
| 42 | 55 | 60 | 63 | 40 | E42L | ||||||
| H | 630 Kg/cm2 | 6 | 14 | 17 | 31 | 16 | E6L | ||||
| 8 | 17 | 19 | 32 | 17 | E8L | ||||||
| 10 | 19 | 22 | 34 | 17.5 | E10L | ||||||
| 12 | 22 | 24 | 38 | 21.5 | E12L | ||||||
| 14 | 22 | 27 | 40 | 22 | E14L | ||||||
| 400 Kg/cm2 | 16 | 24 | 30 | 43 | 24.5 | E16L | |||||
| 20 | 30 | 36 | 48 | 26.5 | E20L | ||||||
| 25 | 36 | 46 | 54 | 30 | E25L | ||||||
| 250 Kg/cm2 | 30 | 44 | 50 | 62 | 35.5 | E30L | |||||
| 38 | 55 | 60 | 72 | 41 | E38L | ||||||
Union Elbow |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |||||
| INCH SI ZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.26 | 0.62 | 4E | ||||
| 3/8" | 0.75 | 0.75 | 1.22 | 0.59 | 6E | ||||||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 8E | ||||||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 12E | ||||||
| 1" | 1.42 | 1.75 | 2.12 | 1.18 | 16E | ||||||
| 3000 PSI | 1 1/4" | 1.73 | 1.97 | 2.44 | 1.38 | 20E | |||||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 24E | ||||||
| 2000 PSI | 2" | 2.5 | 2.75 | 3.07 | 2.54 | 32E | |||||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.87 | 1.06 | 1.57 | 0.87 | 4ENB | ||||
| 3/8" | 1.06 | 1.25 | 1.73 | 0.97 | 6ENB | ||||||
| 1/2" | 1.18 | 1.42 | 1.88 | 1.04 | 8ENB | ||||||
| 3/4" | 1.41 | 1.61 | 2.11 | 1.14 | 12ENB | ||||||
| 3000 PSI | 1" | 1.81 | 2.05 | 2.48 | 1.5 | 16ENB | |||||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 20ENB | ||||||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.14 | 2.05 | 24ENB | |||||
Exports for Flareless Union Elbow Fittings
Metal Ministry inc. exports Flareless Union Elbow in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Flareless Union Elbow in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Flareless Union Elbow feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
