Specification for Flareless Male Connector Parallel

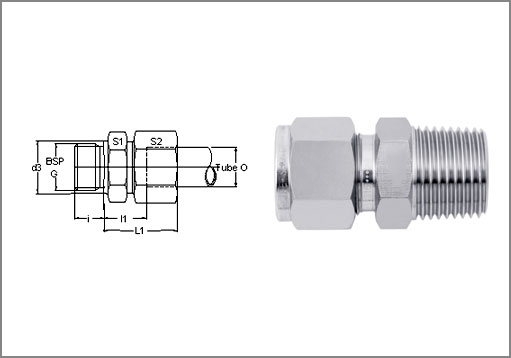

Male Connector (Stud End Parallel Thread) |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | d3 | BSP THREAD |
|||
| G | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 |
6 | 14 | 14 | 23 | 8.5 | 8 | 14 | 1/8" | MC6L-G2 |
| 6 | 19 | 14 | 25 | 10 | 12 | 18 | 1/4" | MC6L-G4 | |||
| 8 | 19 | 17 | 25 | 10 | 12 | 18 | 1/4" | MC8L-G4 | |||
| 10 | 19 | 19 | 26 | 11 | 12 | 18 | 1/4" | MC10L-G4 | |||
| 10 | 22 | 19 | 27.5 | 12.5 | 12 | 22 | 3/8" | MC10L-G6 | |||
| 12 | 19 | 22 | 27 | 12 | 12 | 18 | 1/4' | MC12L-G4 | |||
| 12 | 22 | 22 | 27.5 | 12.5 | 12 | 22 | 3/8" | MC12L-G6 | |||
| 12 | 27 | 22 | 28 | 13 | 14 | 26 | 1/2" | MC12L-G8 | |||
| 15 | 24 | 27 | 29 | 14 | 12 | 22 | 3/8" | MC15L-G6 | |||
| 15 | 27 | 27 | 29 | 14 | 14 | 26 | 1/2" | MC15L-G8 | |||
| 160 Kg/cm2 |
18 | 27 | 32 | 31 | 14.5 | 14 | 26 | 1/2" | MC18L-G8 | ||
| 22 | 32 | 36 | 33 | 16.5 | 16 | 32 | 3/4" | MC22L-G12 | |||
| 22 | 41 | 36 | 34 | 17.5 | 18 | 39 | 1" | MC22L-G16 | |||
| 100 Kg/cm2 |
28 | 41 | 41 | 34 | 17.5 | 18 | 39 | 1" | MC28L-G28 | ||
| 35 | 50 | 50 | 39 | 17.5 | 20 | 49 | 1 1/4" | MC35L-G20 | |||
| 42 | 55 | 60 | 42 | 19 | 22 | 55 | 1 1/2" | MC42L-G24 | |||
| H | 630 Kg/cm2 |
6 | 19 | 17 | 28 | 13 | 12 | 18 | 1/4" | MC6H-G4 | |
| 8 | 19 | 19 | 30 | 15 | 12 | 18 | 1/4" | MC8H-G4 | |||
| 10 | 22 | 22 | 31.5 | 15 | 12 | 22 | 3/8" | MC10H-G6 | |||
| 12 | 22 | 24 | 32.5 | 17 | 12 | 22 | 3/8" | MC12H-G6 | |||
| 12 | 27 | 24 | 34 | 17.5 | 14 | 26 | 1/2" | MC12H-G8 | |||
| 14 | 27 | 27 | 37 | 19 | 14 | 26 | 1/2" | MC14H-G8 | |||
| 400 Kg/cm2 |
16 | 27 | 30 | 37 | 18.5 | 14 | 26 | 1/2' | MC16H-G8 | ||
| 20 | 32 | 36 | 41 | 20.5 | 14 | 26 | 1/2" | MC20H-G8 | |||
| 20 | 32 | 36 | 43 | 20.5 | 16 | 32 | 3/4" | MC20H-G12 | |||
| 25 | 41 | 46 | 47 | 23 | 16 | 32 | 3/4" | MC25H-G12 | |||
| 25 | 41 | 46 | 47 | 23 | 18 | 39 | 1" | MC25H-G16 | |||
| 250 Kg/cm2 |
30 | 46 | 50 | 50 | 23.5 | 18 | 39 | 1" | MC30H-G16 | ||
| 30 | 50 | 50 | 50 | 23.5 | 20 | 49 | 1 1/4" | MC30H-G20 | |||
| 38 | 55 | 50 | 57 | 26 | 20 | 49 | 1 1/4" | MC38H-G20 | |||
| 38 | 55 | 60 | 57 | 26 | 22 | 55 | 1 1/2" | MC38H-G24 | |||
| 38 | 70 | 60 | 57 | 26 | 24 | 70 | 2" | MC38H-G32 | |||
Male Connector (Stud End Parallel Thread) |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | d3 | METRIC THREAD |
|||
| M | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 |
6 | 14 | 14 | 23 | 8.5 | 8 | 14 | M10 X 1 | MC6L-M10 |
| 8 | 17 | 17 | 25 | 10 | 12 | 17 | M12 X 1.5 | MC8L-M12 | |||
| 10 | 19 | 19 | 26 | 11 | 12 | 19 | M14 X 1.5 | MC10L-M14 | |||
| 12 | 22 | 22 | 27.5 | 12.5 | 12 | 22 | M16 X 1.5 | MC12L-M16 | |||
| 15 | 24 | 27 | 28.5 | 13.5 | 12 | 23 | M18 X 1.5 | MC15L-M18 | |||
| 160 Kg/cm2 |
18 | 27 | 32 | 31 | 14.5 | 14 | 27 | M22 X 1.5 | MC18L-M22 | ||
| 22 | 32 | 36 | 33 | 16.5 | 16 | 31 | M26 X 1.5 | MC22L-M26 | |||
| 100 Kg/cm2 |
28 | 41 | 41 | 34 | 17.5 | 18 | 39 | M33 X 2 | MC28L-M33 | ||
| 35 | 50 | 50 | 39 | 17.5 | 20 | 49 | M42 X 2 | MC35L-M42 | |||
| 42 | 55 | 60 | 42 | 19 | 22 | 55 | M48 X 2 | MC42L-M48 | |||
| H | 630 Kg/cm2 |
6 | 17 | 17 | 28 | 13 | 12 | 17 | M12 X 1.5 | MC6H-M12 | |
| 8 | 19 | 19 | 30 | 15 | 12 | 19 | M14 X 1.5 | MC8H-M14 | |||
| 10 | 22 | 22 | 31.5 | 15 | 12 | 22 | M16 X 1.5 | MC10H-M16 | |||
| 12 | 24 | 24 | 33.5 | 17 | 12 | 23 | M18 X 1.5 | MC12H-M18 | |||
| 14 | 27 | 27 | 37 | 19 | 14 | 25 | M20 X 1.5 | MC14H-M20 | |||
| 400 Kg/cm2 |
16 | 27 | 30 | 37 | 18.5 | 14 | 27 | M22 X 1.5 | MC16H-M22 | ||
| 20 | 32 | 36 | 43 | 20.5 | 16 | 32 | M27 X 1.5 | MC20H-M27 | |||
| 25 | 41 | 46 | 47 | 23 | 18 | 39 | M33 X 2 | MC25H-M33 | |||
| 250 Kg/cm2 |
30 | 50 | 50 | 50 | 23.5 | 20 | 49 | M42 X 2 | MC30H-M42 | ||
| 38 | 55 | 60 | 57 | 26 | 22 | 55 | M48 X 2 | MC38H-M48 | |||
Male Connector (Stud End Parallel Thread) |
||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | d3 | BSP THREAD |
||
| G | PART NO. | |||||||||
| INCH SIZE OD TUBE |
6000 PSI |
1/4" | 0.75 | 0.67 | 1.02 | 0.39 | 0.43 | 18 | 1/4" | 4MCG |
| 1/4" | 0.87 | 0.67 | 1.02 | 0.39 | 0.5 | 22 | 3/8" | 4-6MCG | ||
| 3/8" | 0.75 | 0.75 | 1.06 | 0.43 | 0.43 | 18 | 1/4" | 6-4MCG | ||
| 3/8" | 0.87 | 0.75 | 1.07 | 0.44 | 0.5 | 22 | 3/8" | 6MCG | ||
| 3/8" | 1.06 | 0.75 | 1.1 | 0.47 | 0.63 | 26 | 1/2" | 6-8MCG | ||
| 1/2" | 0.87 | 0.94 | 1.12 | 0.45 | 0.5 | 22 | 3/8" | 8-6MCG | ||
| 1/2" | 1.06 | 0.94 | 1.14 | 0.47 | 0.62 | 26 | 1/2" | 8MCG | ||
| 1/2" | 1.26 | 0.94 | 1.18 | 0.51 | 0.75 | 32 | 3/4" | 8-12MCG | ||
| 3/4" | 1.06 | 1.25 | 1.23 | 0.47 | 0.63 | 26 | 1/2" | 12-8MCG | ||
| 3/4" | 1.25 | 1.25 | 1.23 | 0.47 | 0.75 | 32 | 3/4" | 12MCG | ||
| 3/4" | 1.61 | 1.25 | 1.23 | 0.47 | 0.87 | 39 | 1" | 12-16MCG | ||
| 1" | 1.41 | 1.75 | 1.57 | 0.63 | 0.75 | 32 | 3/4" | 16-12MCG | ||
| 1" | 1.75 | 1.75 | 1.57 | 0.63 | 0.86 | 39 | 1" | 16MCG | ||
| 3000 PSI |
1 1/4" | 1.97 | 1.97 | 1.77 | 0.71 | 0.86 | 39 | 1" | 20-16MCG | |
| 1 1/4" | 1.97 | 1.97 | 1.77 | 0.71 | 0.98 | 49 | 1 1/4" | 20MCG | ||
| 1 1/2" | 2.16 | 2.36 | 2.08 | 0.87 | 1 | 49 | 1 1/4" | 24-20MCG | ||
| 1 1/2" | 2.16 | 2.36 | 2.08 | 0.87 | 1 | 55 | 1 1/2" | 24MCG | ||
| 2000 PSI |
2" | 2.55 | 2.75 | 2.12 | 0.93 | 1 | 55 | 1 1/2" | 32-24MCG | |
| 2" | 2.75 | 2.75 | 2.12 | 0.93 | 1 | 70 | 2" | 32MCG | ||
| NOM. BORE TUBE |
6000 PSI |
1/4" | 0.94 | 1.06 | 1.18 | 0.47 | 0.43 | 18 | 1/4" | 4MCNBG |
| 1/4" | 0.94 | 1.06 | 1.22 | 0.51 | 0.5 | 22 | 3/8" | 4-6MCNBG | ||
| 3/8" | 1.06 | 1.25 | 1.26 | 0.5 | 0.5 | 22 | 3/8" | 6MCNBG | ||
| 3/8" | 1.06 | 1.25 | 1.22 | 0.46 | 0.63 | 26 | 1/2" | 6-8MCNBG | ||
| 1/2" | 1.18 | 1.41 | 1.34 | 0.49 | 0.63 | 26 | 1/2" | 8MCNBG | ||
| 1/2" | 1.25 | 1.41 | 1.41 | 0.57 | 0.75 | 32 | 3/4" | 8-12MCNBG | ||
| 3/4" | 1.41 | 1.61 | 1.57 | 0.59 | 0.75 | 32 | 3/4" | 12MCNBG | ||
| 3/4" | 1.61 | 1.61 | 1.57 | 0.59 | 0.87 | 39 | 1" | 12-16MCNBG | ||
| 3000 PSI | 1" | 1.81 | 2.04 | 1.69 | 0.69 | 0.87 | 39 | 1" | 16MCNBG | |
| 1" | 1.97 | 2.04 | 1.69 | 0.69 | 1 | 49 | 1 1/4" | 16-20MCNBG | ||
| 1 1/4' | 2.16 | 2.36 | 1.97 | 0.82 | 0.98 | 49 | 1 1/4" | 20MCNBG | ||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 2.16 | 1.02 | 1 | 55 | 1 1/2" | 24MCNBG | |
