Stainless Steel 304/304L,316/316L,904L Flareless Union Cross Fittings Manufacturer
Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Union Cross Fittings Manufacturer & Exporter
Duplex Steel 2205, Brass Alloy Instrumentation Flareless Union Cross Fittings Supplier & Trader
Stainless Steel 304/304L Flareless Union Cross Fittings, Stainless Steel 316/316L Flareless Union Cross Fittings, Stainless Steel 904L Flareless Union Cross Fittings, Inconel 600 Flareless Union Cross Fittings, Inconel 625 Flareless Union Cross Fittings, Incoloy 800/800H Flareless Union Cross Fittings, Monel 400 Flareless Union Cross, Monel K500 Flareless Union Cross Fittings, Nickel 200 Flareless Union Cross Fittings, Nickel 201 Flareless Union Cross, Hastelloy C22 Flareless Union Cross Fittings, Hastelloy C276 Flareless Union Cross, Duplex Steel 2205 Flareless Union Cross, Brass Alloy Flareless Union Cross

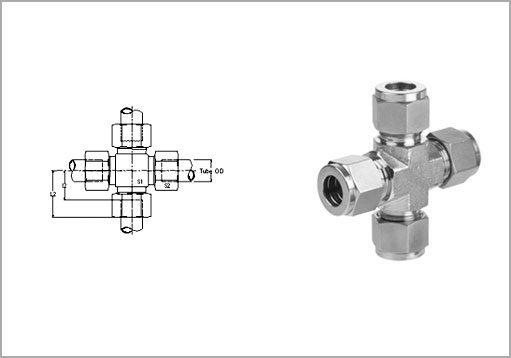

Specification for Flareless Union Cross Fittings
Union Cross |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 12 | 14 | 27 | 12 | K6L | |||
| 8 | 14 | 17 | 29 | 14 | K8L | ||||||
| 10 | 17 | 19 | 30 | 15 | K10L | ||||||
| 12 | 19 | 22 | 32 | 17 | K12L | ||||||
| 15 | 22 | 27 | 36 | 21 | K15L | ||||||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | K18L | |||||
| 22 | 30 | 36 | 44 | 27.5 | K22L | ||||||
| 100 Kg/cm2 | 28 | 36 | 41 | 47 | 30.5 | K28L | |||||
| 35 | 46 | 50 | 56 | 34.5 | K35L | ||||||
| 42 | 55 | 60 | 63 | 40 | K42L | ||||||
| H | 630 Kg/cm2 | 6 | 14 | 17 | 31 | 16 | K6H | ||||
| 8 | 17 | 19 | 32 | 17 | K8H | ||||||
| 10 | 19 | 22 | 34 | 17.5 | K10H | ||||||
| 12 | 22 | 24 | 38 | 21.5 | K12H | ||||||
| 14 | 22 | 27 | 40 | 22 | K14H | ||||||
| 400 Kg/cm2 | 16 | 24 | 30 | 43 | 24.5 | K16H | |||||
| 20 | 30 | 36 | 48 | 26.5 | K20H | ||||||
| 25 | 36 | 46 | 54 | 30 | K25H | ||||||
| 250 Kg/cm2 | 30 | 44 | 50 | 62 | 35.5 | K30H | |||||
| 38 | 55 | 60 | 72 | 41 | K38H | ||||||
Union Cross |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | PART NO. | |||||
| INCH SI ZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.26 | 0.62 | 4K | ||||
| 3/8" | 0.75 | 0.75 | 1.22 | 0.59 | 6K | ||||||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 8K | ||||||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 12K | ||||||
| 1" | 1.42 | 1.75 | 2.12 | 1.18 | 16K | ||||||
| 3000 PSI | 1 1/4" | 1.73 | 1.97 | 2.44 | 1.38 | 20K | |||||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 24K | ||||||
| 2000 PSI | 2" | 2.5 | 2.75 | 3.07 | 1.91 | 32K | |||||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.87 | 1.06 | 1.57 | 0.87 | 4KNB | ||||
| 3/8" | 1.06 | 1.25 | 1.73 | 0.97 | 6KNB | ||||||
| 1/2" | 1.18 | 1.42 | 1.88 | 1.04 | 8KNB | ||||||
| 3/4" | 1.41 | 1.61 | 2.11 | 1.14 | 12KNB | ||||||
| 3000 PSI | 1" | 1.81 | 2.05 | 2.48 | 1.5 | 16KNB | |||||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 20KNB | ||||||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.14 | 2.05 | 24KNB | |||||
Exports for Flareless Union Cross Fittings
Metal Ministry inc. exports Flareless Union Cross in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Flareless Union Cross in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Flareless Union Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
