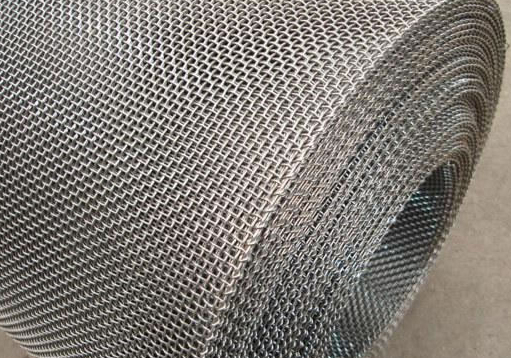

Quality Stainless Steel 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh Manufacturer

Stainless Steel - SS Wire Mesh Manufacturer , Precision woven wire Stainless Steel filter mesh Exporter

Stainless Steel Wire Mesh, Wire Cloth and Screen Supplier & Trader are available at competitive price

METAL MINISTRY INC. is one of the leading Stainless Steel 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh Manufacturer, Exporter & Supplier. We are one of the main Wire Mesh Manufacturer in India and furthermore provider of SS wire work in India.

We have the assembling capacity to weave any work from 4 to 500 according to the prerequisite of the client. Our wire cross sections are of the top most quality with 100% assurance of consistency over the whole roll. We guarantee our client of immaculate wire work weaving , guage , work and the review .

We weave wire work moves of different width and lengths according to the necessities of our customer.Since we are in the field of assembling wire work since 15 years, we guarantee our clients with best quality and rates.

Stainless Steel Wire Mesh Manufacturer Exporter

Stainless Steel Square Mesh / Fine mesh, Twill Weave (TW), Plain Dutch Weave Wire Mesh (PDW), Twill Dutch Weave Wire Mesh (TDW), Reverse Twill Dutch Weave (RTDW), Hollander Weave, Stainless Steel 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh, Stainless Steel 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh Manufacturer, Steel Wire Mesh, SS 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh, Stainless Steel Wire Mesh, 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh Suppliers, Stainless Steel 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7 Wire Mesh Screen, Wire Mesh of Stainless Steel with grades like 304,304L,304H,310,310S,316,316L,321,330,347,904L,17-4,17-7

Specification for Stainless Steel Wire Mesh

Mesh SWG DIAMETERS OF WIRE SIZE OF OPENING Approx Percentage Open Area
Inch MM Inch MM Micron
4 12 0.104 2.640 0.146 3,710 3,710 34.14
4 13 0.092 2.340 0.158 4,010 4,010 39.98
4 14 0.080 2.030 0.170 4,320 4.320 46,28
4 15 0.072 1.830 0.178 4,520 4,520 50.67
4 16 0.064 1.630 0.186 4,720 4,720 55.25
4 17 0.056 1.430 0.194 4,920 4,920 60.03
4 18 0.048 1.220 0.202 5,130 5,130 65.27
5 14 0.080 2.030 0.120 3,050 3,050 36.05
5 15 0.072 1.830 0.128 3,250 3,250 40.93
5 16 0.064 1.630 0.136 3,450 3,450 46.12
5 17 0.056 1.430 0.144 3,650 3650 51.62
5 18 0.048 1.220 0.152 3,860 3,860 57.74
5 19 0.040 1.020 0.160 4,060 4,060 63.87
5 20 0.036 0.910 0.164 4,170 4,170 67.38
6 16 0.064 1.630 0.102 2,603 2,603 37.82
6 17 0.056 1.430 0.110 2,803 2,803 43.85
6 19 0.040 1.020 0.127 3,213 3,213 57.62
6 20 0.036 0.910 0.131 3,323 3,323 61.63
6 21 0.032 0.810 0.135 3,423 3,423 65.39
8 16 0.064 1.630 0.061 1,545 1545 23.68
8 17 0.056 1.430 0.061 1,745 1,745 30.21
8 18 0.048 1.220 0.077 1,955 1,955 37.91
8 19 0.040 1.020 0.085 2,155 2,155 46.07
8 20 0.036 0.910 0.089 2,265 2,265 50.89
8210.0320.8100.0932,3652,365 55.48
8220.0280.7100.0972,4652,465 60.28
8230.0240.6100.01012,5652,565 65.27
8240.0220.5500.1032,6252,625 68.36
8250.0200.5000.1052,6752,675 70.98
10 20 0.036 0.910 0.064 1,630 1,630 41.18
10 21 0.032 0.810 0.068 1,730 1,730 46.39
10 22 0.028 0.710 0.072 1,830 1,830 51.91
10 23 0.024 0.610 0.076 1,930 1,930 57.74
10 24 0.022 0.550 0.078 1,990 1,990 61.38
10 25 0.020 0.500 0.080 2,040 2,040 64.50
12 22 0.028 0.710 0.055 1,407 1,407 44.16
12 23 0.024 0.610 0.059 1,507 1,507 50.67
12 24 0.022 0.550 0.062 1,567 1,567 54.78
12 25 0.020 0.500 0.064 1,617 1,617 58.34
12 26 0.018 0.450 0.066 1,667 1,667 62.00
14 24 0.022 0.550 0.050 1,264 1,264 48.56
14 25 0.020 0.500 0.052 1,314 1,314 52.48
14 26 0.018 0.450 0.054 1,364 1,364 56.55
14 27 0.016 0.400 0.056 1,414 1,414 60.77
14 28 0.015 0.370 0.057 1,444 1,444 63.37
16 24 0.022 0.550 0.041 1,038 1,038 42.71
16 25 0.020 0.500 0.043 1,088 1,088 46.93
16 26 0.018 0.450 0.045 1,138 1,138 51.34
16 27 0.016 0.400 0.047 1,188 1,188 55.96
16 29 0.013 0.340 0.049 1,248 1,248 61.75
16 30 0.012 0.310 0.050 1,278 1,278 64.76
18 25 0.020 0.500 0.036 0.911 911 41.69
18 26 0.018 0.450 0.038 0.961 961 46.39
18 27 0.016 0.400 0.040 1.011 1,011 51.34
18 28 0.015 0.370 0.041 1.041 1,041 54.43
20 24 0.022 0.550 0.028 0.720 720 32.14
20 25 0.020 0.500 0.030 0.770 770 36.76
20 26 0.018 0.450 0.032 0.820 820 41.69
20 27 0.016 0.400 0.034 0.870 870 46.93
20 28 0.015 0.370 0.035 0.900 900 50.22
20 29 0.013 0.340 0.037 0.930 930 53.62
20 30 0.012 0.310 0.038 0.960 960 57.14
24 27 0.016 0.400 0.026 0.658 658 38.69
24 28 0.015 0.370 0.027 0.688 688 42.30
24 29 0.013 0.340 0.028 0.718 718 46.07
24 30 0.012 0.310 0.029 0.748 748 50.00
24 32 0.011 0.270 0.031 0.788 788 55.48
30 28 0.015 0.370 0.019 0.477 477 31.70
30 29 0.013 0.340 0.020 0.507 507 35.81
30 30 0.012 0.310 0.021 0.537 537 40.18
30 31 0.011 0.290 0.022 0.557 557 43.23
30 32 0.011 0.270 0.023 0.557 577 46.39
40 32 0.011 0.270 0.014 0.365 365 33.04
40 33 0.010 0.250 0.015 0.385 385 36.76
40 34 0.009 0.234 0.016 0.401 401 39.88
40 35 0.008 0.210 0.017 0.425 425 44.80
40 36 0.008 0.193 0.017 0.442 442 48.45
50 34 0.009 0.234 0.011 0.274 274 29.09
50 35 0.008 0.210 0.012 0.298 298 34.41
50 36 0.008 0.193 0.012 0.315 315 38.45
50 37 0.007 0.172 0.013 0.336 336 43.75
50 38 0.006 0.152 0.014 0.356 356 49.11
60 36 0.008 0.193 0.009 0.230 230 29.60
60 37 0.007 0.172 0.010 0.251 251 32.25
60 38 0.006 0.152 0.011 0.271 271 41.08
80 38 0.006 0.152 0.007 0.166 166 21.17
80 39 0.005 0.130 0.007 0.188 188 34.88
80 40 0.005 0.122 0.008 0.196 196 37.91
80 41 0.004 0.112 0.008 0.206 206 41.89
80 42 0.004 0.102 0.008 0.216 216 46.07
100 42 0.004 0.102 0.006 0.152 152 35.81
100 43 0.004 0.091 0.006 0.163 163 41.18
100 44 0.003 0.081 0.007 0.173 173 46.39
120 44 0.003 0.081 0.005 0.131 131 38.11
150 45 0.003 0.071 0.004 0.098 98 33.72
150 45.5 0.002 0.063 0.004 0.106 106 39.43
200 47 0.002 0.050 0.003 0.077 77 36.76
250 48 0.002 0.040 0.002 0.062 62 36.76
300 48 0.002 0.040 0.002 0.045 45 27.83
325 48.5 0.001 0.035 0.002 0.043 43 30.49
400 49.5 0.001 0.028 0.001 0.036 36 31.25
500 50 0.001 0.025 0.001 0.026 26 25.79

WEAVE TYPE MESH COUNT WARP WIRE IN INCHES SHUTE WIRE IN INCHES ABSOLUTE MICRON RATING NOMINAL MICRON RATING
PDW 8X20 0.014 0.0126 330-350  280
PDW 12X64 0.024 0.0165 270-290  200
PDW 14X88 0.02 0.013 220-240  150
PDW 16X80 0.0169 0.0134 225-235  140
PDW 24X110 0.015 0.01 115-125  80
PDW - TWIN WARP 24X128 2 X .010 0.004 110-120  75
PDW 30X150 0.009 0.007 110-112  63
PDW - TWIN WARP 30X150 2 X .009 .007" 95-113  60
PDW 40X200 0.007 0.0055 70-75  55
PDW 50X250 0.0055 0.0045 58-63  40
PDW 80X400 0.005 0.003 40-45  35
TDW 30X250 0.01 0.008 110-120  53
TDW 80X700 0.004 0.003 35-40  25
TDW 120X400 0.004 0.0025 50-55  40
TDW 165X800 0.0028 0.002 25-28  15
TDW 200X600 0.0024 0.0018 30  20
TDW 165X1400 0.0028 0.0016 16-20  10
TDW 200X1400 0.0028 0.0016 12-14   5
TDW 325X2300 0.0014 0.001 8-9   2
TDW 400X2800 0.001 0.0008 6-7   1

Grades for Stainless Steel Material Used

Grade C
Max		 Mn
Max		 P
Max		 S
Max		 Si
Max		 Cr
Min/Max		 Ni
Max		 MO
Max
304 0.08 2.00 0.05 0.03 1.00 18-20 18-10 -
304L 0.03 2.00 0.05 0.03 1.00 16-18 18-12 -
316 0.08 2.00 0.05 0.03 1.00 16-18 10-14 2-2.25
316L 0.03 2.00 0.05 0.03 1.00 16-18 10-14 2-2.25

Exports for Stainless Steel Wire Mesh

Metal Ministry inc. exports Stainless Steel Wire Mesh in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Stainless Steel Wire Mesh in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Stainless Steel Wire Mesh feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
