Flareless Bulk Head Union Fittings

Stainless Steel 304/304L,316/316L,904L Flareless Bulk Head Union Fittings Manufacturer

Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Bulk Head Union Fittings Manufacturer & Exporter

Duplex Steel 2205, Brass Alloy Instrumentation Flareless Bulk Head Union Fittings Supplier & Trader

METAL MINISTRY INC. is one of the leading Flareless Bulk Head Union Fittings Manufacturer, Exporter & Supplier. Bulk Head Union made by us, is of good qualities which takes into account jumpers businesses universally and have been acknowledged broadly by the customers. These are the fundamental segment under Union Fittings to be utilized as a part of oil, gas, vehicle, synthetic and petro-concoction and different other such enterprises.
Flareless Bulk Head Union Fittings Exporter

Stainless Steel 304/304L Flareless Bulk Head Union Fittings, Stainless Steel 316/316L Flareless Bulk Head Union Fittings, Stainless Steel 904L Flareless Bulk Head Union Fittings, Inconel 600 Flareless Bulk Head Union Fittings, Inconel 625 Flareless Bulk Head Union Fittings, Incoloy 800/800H Flareless Bulk Head Union Fittings, Monel 400 Flareless Bulk Head Union Fittings, Monel K500 Flareless Bulk Head Union Fittings, Nickel 200 Flareless Bulk Head Union Fittings, Nickel 201 Flareless Bulk Head Union Fittings, Hastelloy C22 Flareless Bulk Head Union Fittings, Hastelloy C276 Flareless Bulk Head Union Fittings, Duplex Steel 2205 Flareless Bulk Head Union Fittings, Brass Alloy Flareless Bulk Head Union Fittings

Specification for Flareless Bulk Head Union Fittings

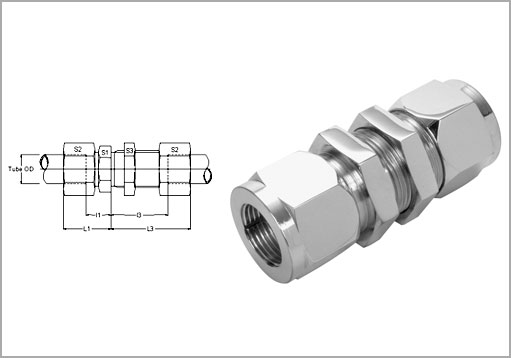

Bulk Head Union
SERIES TUBE OD. S1 S2 S3 L1 I1 L3 I3 PART NO.
METRIC
SIZE
TUBE		 L 250 Kg/cm2 6 17 14 17 22 7 42 27 UB6L
8 19 17 19 23 8 42 27 UB8L
10 22 19 22 25 10 43 28 UB10L
12 24 22 24 25 10 44 29 UB12L
15 27 27 30 27 12 46 31 UB15L
160 Kg/cm2 18 32 32 36 30 13.5 49 32.5 UB18L
22 36 36 41 33 16.5 51 34.5 UB22L
100 Kg/cm2 28 41 41 46 35 18.5 52 35.5 UB28L
35 50 50 55 40 18.5 58 36.5 UB35L
42 60 60 65 42 19 59 36 UB42L
H 630 Kg/cm2 6 19 17 19 27 12 44 29 UB6H
8 22 19 22 28 13 44 29 UB8H
10 24 22 24 31 14.5 46 29.5 UB10H
12 27 24 27 31 14.5 47 30.5 UB12H
14 30 27 30 35 17 50 32 UB14H
400 Kg/cm2 16 32 30 32 35 16.5 50 31.5 UB16H
20 41 36 41 39 17.5 55 33.5 UB20H
25 46 46 46 44 20 59 35 UB25H
250 Kg/cm2 30 50 50 50 48 21.5 64 37.5 UB30H
38 65 60 65 53 22 68 37 UB38H

Bulk head Union
SERIES TUBE OD. S1 S2 S3 L1 I1 L3 I3 PART NO.
INCH OD
TUBE		 6000 PSI 1/4" 0.75 0.67 0.75 1.02 0.40 1.64 1.02 4UB
3/8" 0.88 0.75 0.87 1.06 0.41 1.65 1.00 6UB
1/2" 1.06 0.94 1.06 1.14 0.47 1.68 1.01 8UB
3/4" 1.42 1.25 1.42 1.34 0.51 1.89 1.06 12UB
1" 1.75 1.75 1.75 1.54 59.00 2.27 1.22 16UB
3000 PSI 1 1/4" 1.97 1.97 1.91 1.78 0.71 2.40 1.34 20UB
11/2" 2.56 2.36 2.56 2.13 0.88 2.70 1.46 24UB
NOM. BORE
TUBE		 6000 PSI 1/4" 1.18 1.06 1.18 1.15 0.44 1.77 1.06 4UBNB
3/8" 1.25 1.25 1.26 1.25 0.50 1.77 1.02 6UBNB
1/2" 1.50 1.42 1.00 1.32 0.50 1.95 1.13 8UBNB
3/4" 1.75 1.61 1.75 1.54 0.59 2.10 1.15 12UBNB
3000 PSI 1" 2.16 2.05 2.16 1.76 0.72 2.37 1.34 16UBNB
1 1/4" 2.36 2.36 2.36 1.81 0.75 2.86 1.80 20UBNB
2000 PSI 1 1/2" 2.75 2.75 2.75 2.03 0.88 3.10 1.93 24UBNB

Exports for Flareless Bulk Head Union Fittings

Metal Ministry inc. exports Flareless Bulk Head Union Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Flareless Bulk Head Union Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Flareless Bulk Head Union Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
