Stainless Steel 304/304L,316/316L,904L Flareless Male Tee Taper Fittings Manufacturer
Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Male Tee Taper Fittings Manufacturer & Exporter
Duplex Steel 2205, Brass Alloy Instrumentation Flareless Male Tee Taper Fittings Supplier & Trader
Stainless Steel 304/304L Flareless Male Tee Taper Fittings, Stainless Steel 316/316L Flareless Male Tee Taper, Stainless Steel 904L Flareless Male Tee Taper, Inconel 600 Flareless Male Tee Taper Fittings, Inconel 625 Flareless Male Tee Taper, Incoloy 800/800H Flareless Male Tee Taper Fittings, Monel 400 Flareless Male Tee Taper, Monel K500 Flareless Male Tee Taper Fittings, Nickel 200 Flareless Male Tee Taper Fittings, Nickel 201 Flareless Male Tee Taper, Hastelloy C22 Flareless Male Tee Taper Fittings, Hastelloy C276 Flareless Male Tee Taper, Duplex Steel 2205 Flareless Male Tee Taper, Brass Alloy Flareless Male Tee Taper
Specification for Flareless Male Tee Taper Fittings

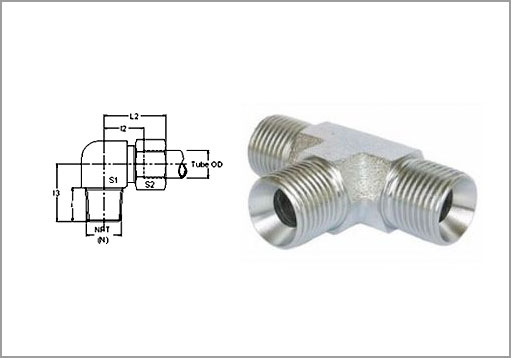

Male Tee Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | NPT THREAD | |||
| N | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 |
6 | 12 | 14 | 27 | 12 | 20 | 9.97 | 1/8" | MBT6L-N2 |
| 6 | 14 | 14 | 29 | 14 | 26 | 15.1 | 1/4" | MBT6L-N4 | |||
| 8 | 14 | 17 | 29 | 14 | 26 | 15.1 | 1/4" | MBT8LN-4 | |||
| 10 | 14 | 19 | 30 | 15 | 27 | 15.1 | 1/4" | MBT10L-N4 | |||
| 10 | 17 | 19 | 30 | 15 | 28 | 15.26 | 3/8" | MBT10L-N6 | |||
| 12 | 17 | 22 | 32 | 17 | 28 | 15.26 | 3/8" | MBT12L-N6 | |||
| 12 | 19 | 22 | 33 | 18 | 34 | 19.85 | 1/2" | MBT12L-N8 | |||
| 15 | 22 | 27 | 36 | 21 | 34 | 19.85 | 1/2" | MBT15L-N8 | |||
| 160 Kg/cm2 |
18 | 27 | 32 | 40 | 23.5 | 36 | 19.85 | 1/2" | MBT18L-N8 | ||
| H | 630 Kg/cm2 |
6 | 14 | 17 | 31 | 16 | 26 | 15.1 | 1/4" | MBT6H-N4 | |
| 8 | 17 | 19 | 32 | 17 | 27 | 15.1 | 1/4" | MBT8H-N4 | |||
| 10 | 19 | 22 | 34 | 17.5 | 28 | 15.26 | 3/8" | MBT10H-N6 | |||
| 12 | 22 | 24 | 38 | 21.5 | 28 | 15.26 | 3/8" | MBT12H-N6 | |||
| 12 | 22 | 24 | 39 | 22.5 | 32 | 19.85 | 1/2" | MBT12H-N8 | |||
| 14 | 22 | 27 | 40 | 22 | 32 | 19.85 | 1/2" | MBT14H-N8 | |||
| 400 Kg/cm2 |
16 | 24 | 30 | 43 | 24.5 | 32 | 19 | 1/2" | MBT16H-N8 | ||
Male Tee Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | BSPT THREAD | |||
| R | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 |
6 | 12 | 14 | 27 | 12 | 20 | 10 | 1/8" | MBT6L-R2 |
| 6 | 14 | 14 | 29 | 14 | 24 | 14 | 1/4" | MBT6L-R4 | |||
| 8 | 14 | 17 | 29 | 14 | 26 | 14 | 1/4" | MBT8L-R4 | |||
| 10 | 14 | 19 | 30 | 15 | 27 | 14 | 1/4" | MBT10L-R4 | |||
| 10 | 17 | 19 | 30 | 15 | 27 | 14 | 3/8" | MBT10L-R6 | |||
| 12 | 17 | 22 | 32 | 17 | 28 | 14 | 3/8" | MBT12L-R6 | |||
| 12 | 19 | 22 | 33 | 18 | 30 | 16 | 1/2" | MBT12L-R8 | |||
| 15 | 22 | 27 | 36 | 21 | 34 | 16 | 1/2" | MBT15L-R8 | |||
| 160 Kg/cm2 |
18 | 27 | 32 | 40 | 23.5 | 36 | 16 | 1/2" | MBT18L-R8 | ||
| H | 630 Kg/cm2 |
6 | 14 | 17 | 31 | 16 | 26 | 14 | 1/4" | MBT6H-R4 | |
| 8 | 17 | 19 | 32 | 17 | 27 | 14 | 1/4" | MBT8H-R4 | |||
| 10 | 19 | 22 | 34 | 17.5 | 28 | 14 | 3/8" | MBT10H-R6 | |||
| 12 | 22 | 24 | 38 | 21.5 | 28 | 14 | 3/8" | MBT12H-R6 | |||
| 12 | 22 | 24 | 39 | 22.5 | 32 | 16 | 1/2" | MBT12H-R8 | |||
| 14 | 22 | 27 | 40 | 22 | 32 | 16 | 1/2" | MBT14H-R8 | |||
| 400 Kg/cm2 |
16 | 24 | 30 | 43 | 24.5 | 32 | 16 | 1/2" | MBT16H-R8 | ||
Male Tee Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | NPT THREAD | |||
| N | PART NO. | ||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.55 | 0.67 | 1.26 | 0.63 | 0.87 | 0.39 | 1/8" | 4-2MBTN | |
| 1/4" | 0.55 | 0.67 | 1.26 | 0.63 | 1.06 | 0.55 | 1/4" | 4MBTN | |||
| 3/8" | 0.67 | 0.75 | 1.22 | 0.59 | 1.06 | 0.55 | 1/4" | 6-4MBTN | |||
| 3/8" | 0.67 | 0.75 | 1.22 | 0.59 | 1.06 | 0.55 | 3/8" | 6MBTN | |||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 1.25 | 0.55 | 3/8" | 8-6MBTN | |||
| 1/2" | 0.87 | 0.94 | 1.61 | 0.94 | 1.41 | 0.74 | 1/2" | 8MBTN | |||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 1.61 | 0.74 | 1/2" | 12-8MBTN | |||
| 3/4" | 1.18 | 1.25 | 1.87 | 1.04 | 1.61 | 0.74 | 3/4" | 12MBTN | |||
| 1" | 1.41 | 1.75 | 2.12 | 1.18 | 1.69 | 0.74 | 3/4" | 16-12MBTN | |||
| 1" | 1.41 | 1.75 | 2.12 | 1.18 | 1.89 | 0.94 | 1" | 16MBTN | |||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 2.48 | 1.41 | 2.28 | 0.94 | 1" | 20-16MBTN | ||
| 1 1/4" | 1.75 | 1.97 | 2.48 | 1.41 | 2.28 | 0.94 | 1 1/4" | 20MBTN | |||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 2.4 | 1 | 1 1/2" | 24MBTN | |||
| 2000 PSI | 2" | 2.5 | 2.5 | 3.66 | 2.12 | 2.55 | 1 | 2" | 32MBTN | ||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 1 | 1.06 | 1.57 | 0.87 | 1.26 | 0.55 | 1/4" | 4MBTNBN | |
| 1/4" | 0.94 | 1.06 | 1.5 | 0.78 | 1.37 | 0.55 | 3/8" | 4-6MBTNBN | |||
| 3/8" | 1.06 | 1.25 | 1.69 | 0.93 | 1.41 | 0.55 | 3/8" | 6MBTNBN | |||
| 3/8" | 1.13 | 1.25 | 1.77 | 1.01 | 1.61 | 0.74 | 1/2" | 6-8MBTNBN | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.74 | 1/2" | 8MBTNBN | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.43 | 1.57 | 0.74 | 3/4" | 8-12MBTNBN | |||
| 3/4" | 1.42 | 1.61 | 2.1 | 1.14 | 1.81 | 0.74 | 3/4" | 12MBTNBN | |||
| 3000 PSI | 1" | 1.81 | 2.04 | 2.34 | 1.3 | 2.31 | 0.94 | 1" | 16MBTNBN | ||
| 1" | 1.81 | 2.04 | 2.34 | 1.3 | 2.34 | 0.97 | 1 1/4" | 16-20MBTNBN | |||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 2.51 | 0.97 | 1 1/4" | 20MBTNBN | |||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 3.11 | 1.89 | 2.83 | 1 | 1 1/2" | 24MBTNBN | ||
Male Tee Taper |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L2 | I2 | I3 | i | BSPT THREAD | |||
| R | PART NO. | ||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.55 | 0.67 | 1.26 | 0.63 | 0.87 | 0.39 | 1/8" | 4-2MBTR | |
| 1/4" | 0.55 | 0.67 | 1.26 | 0.63 | 1.02 | 0.55 | 1/4" | 4MBTR | |||
| 3/8" | 0.67 | 0.75 | 1.22 | 0.59 | 1.06 | 0.55 | 1/4" | 6-4MBTR | |||
| 3/8" | 0.67 | 0.75 | 1.22 | 0.59 | 1.06 | 0.55 | 3/8" | 6MBTR | |||
| 1/2" | 0.87 | 0.94 | 1.49 | 0.82 | 1.1 | 0.55 | 3/8" | 8-6MBTR | |||
| 1/2" | 0.87 | 0.94 | 1.61 | 0.94 | 1.3 | 0.63 | 1/2" | 8MBTR | |||
| 3/4" | 1.06 | 1.25 | 1.87 | 1.04 | 1.49 | 0.63 | 1/2" | 12-8MBTR | |||
| 3/4" | 1.18 | 1.25 | 1.87 | 1.04 | 1.61 | 0.74 | 3/4" | 12MBTR | |||
| 1" | 1.41 | 1.75 | 2.12 | 1.18 | 1.76 | 0.74 | 3/4" | 16-12MBTR | |||
| 1" | 1.41 | 1.75 | 2.12 | 1.18 | 1.89 | 0.87 | 1" | 16MBTR | |||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 2.48 | 1.41 | 2.15 | 0.87 | 1" | 20-16MBTR | ||
| 1 1/4" | 1.75 | 1.97 | 2.48 | 1.41 | 2.28 | 1 | 1 1/4" | 20MBTR | |||
| 1 1/2" | 2.16 | 2.36 | 2.83 | 1.61 | 2.4 | 1 | 1 1/2" | 24MBTR | |||
| 2000 PSI | 2" | 2.5 | 2.5 | 3.66 | 2.12 | 2.55 | 1 | 2" | 32MBTR | ||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 1 | 1.06 | 1.57 | 0.87 | 1.18 | 0.43 | 1/4" | 4MBTNBR | |
| 1/4" | 0.94 | 1.06 | 1.5 | 0.78 | 1.25 | 0.55 | 3/8" | 4-6MBTNBR | |||
| 3/8" | 1.06 | 1.25 | 1.69 | 0.93 | 1.42 | 0.55 | 3/8" | 6MBTNBR | |||
| 3/8" | 1.13 | 1.25 | 1.77 | 1.01 | 1.5 | 0.63 | 1/2" | 6-8MBTNBR | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.04 | 1.57 | 0.63 | 1/2" | 8MBTNBR | |||
| 1/2" | 1.18 | 1.41 | 1.89 | 1.43 | 1.69 | 0.75 | 3/4" | 8-12MBTNBR | |||
| 3/4" | 1.42 | 1.61 | 2.1 | 1.14 | 1.81 | 0.75 | 3/4" | 12MBTNBR | |||
| 3000 PSI | 1" | 1.81 | 2.04 | 2.34 | 1.3 | 2.24 | 0.87 | 1" | 16MBTNBR | ||
| 2000 PSI | 1" | 1.81 | 2.04 | 2.34 | 1.3 | 2.37 | 1 | 1 1/4" | 16-20MBTNBR | ||
| 1 1/4" | 2.16 | 2.36 | 3.07 | 1.93 | 2.56 | 1 | 1 1/4" | 20MBTNBR | |||
| 1 1/2" | 2.5 | 2.75 | 3.11 | 1.89 | 2.83 | 1 | 1 1/2" | 24MBTNBR | |||
Exports for Flareless Male Tee Taper Fittings
Metal Ministry inc. exports Flareless Male Tee Taper in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Flareless Male Tee Taper in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Flareless Male Tee Taper feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
