Specification for Flareless Male Connector Taper

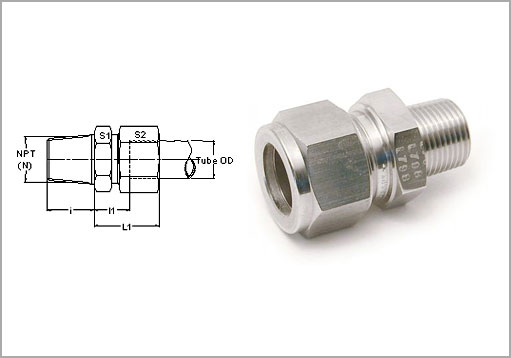

Male Connector (Stud End Taper Thread) |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | NPT THREAD |
||||
| N | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 14 | 14 | 23 | 8 | 9.97 | 1/8" | MC6L-N2 | |
| 6 | 14 | 14 | 23 | 8 | 15.1 | 1/4" | MC6L-N4 | ||||
| 8 | 17 | 17 | 23 | 8 | 15.1 | 1/4" | MC8L-N4 | ||||
| 10 | 17 | 19 | 24 | 9 | 15.1 | 1/4" | MC10L-N4 | ||||
| 12 | 19 | 22 | 25 | 10 | 15.1 | 1/4" | MC12L-N4 | ||||
| 12 | 19 | 22 | 25 | 10 | 15.26 | 3/8" | MC12L-N6 | ||||
| 12 | 22 | 22 | 26 | 11 | 19.85 | 1/2" | MC12L-N8 | ||||
| 15 | 24 | 27 | 26 | 11 | 19.85 | 1/2" | MC15L-N8 | ||||
| 160 Kg/cm2 | 18 | 27 | 32 | 28 | 12 | 19.85 | 1/2" | MC18L-N8 | |||
| 22 | 32 | 36 | 30 | 14 | 20.15 | 3/4" | MC22L-N12 | ||||
| 100 Kg/cm2 | 28 | 41 | 41 | 31 | 14.5 | 25 | 1" | MC28L-N16 | |||
| 35 | 46 | 50 | 36 | 15 | 25.62 | 1 1/4" | MC35L-N20 | ||||
| 42 | 55 | 60 | 39 | 16 | 26.04 | 1 1/2" | MC42L-N24 | ||||
| H | 630 Kg/cm2 | 6 | 17 | 17 | 28 | 13 | 15.1 | 1/4" | MC6H-N4 | ||
| 8 | 17 | 19 | 28 | 13 | 15.1 | 1/4" | MC8H-N4 | ||||
| 10 | 19 | 22 | 29 | 12.5 | 15.1 | 1/4" | MC10H-N4 | ||||
| 10 | 19 | 22 | 29 | 13 | 15.26 | 3/8" | MC10H-N6 | ||||
| 12 | 22 | 24 | 31 | 14.5 | 15.1 | 1/4" | MC12H-N4 | ||||
| 12 | 22 | 24 | 31 | 14.5 | 15.26 | 3/8" | MC12H-N6 | ||||
| 12 | 22 | 24 | 31 | 15 | 19.98 | 1/2" | MC12H-N8 | ||||
| 14 | 24 | 27 | 34 | 16 | 19.98 | 1/2" | MC14H-N8 | ||||
| 400 Kg/cm2 | 16 | 27 | 30 | 34 | 16 | 19.98 | 1/2" | MC16H-N8 | |||
| 20 | 32 | 36 | 40 | 17.35 | 20.15 | 3/4" | MC20H-N12 | ||||
| 25 | 41 | 46 | 44 | 20 | 25 | 1" | MC25H-N16 | ||||
| 250 Kg/cm2 | 30 | 55 | 50 | 47.5 | 21 | 25.62 | 1 1/4" | MC30H-N20 | |||
| 38 | 70 | 60 | 54 | 23 | 26.04 | 1 1/2" | MC38H-N24 | ||||
Male Connector (Stud End Taper Thread) |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | BSPT THREAD |
||||
| R | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 14 | 14 | 23 | 8 | 8 | 1/8" | MC6L-R2 | |
| 6 | 14 | 14 | 23 | 8 | 14 | 1/4" | MC6L-R4 | ||||
| 8 | 17 | 17 | 23 | 8 | 12 | 1/4" | MC8L-R4 | ||||
| 10 | 17 | 19 | 24 | 9 | 14 | 1/4" | MC10L-R4 | ||||
| 12 | 19 | 22 | 25 | 10 | 12 | 1/4" | MC12L-R4 | ||||
| 12 | 19 | 22 | 25 | 10 | 14 | 3/8" | MC12L-R6 | ||||
| 12 | 22 | 22 | 26 | 11 | 16 | 1/2" | MC12L-R8 | ||||
| 15 | 24 | 27 | 26 | 11 | 16 | 1/2" | MC15L-R8 | ||||
| 160 Kg/cm2 | 18 | 27 | 32 | 28 | 12 | 16 | 1/2" | MC18L-R8 | |||
| 22 | 32 | 36 | 30 | 14 | 19 | 3/4" | MC22L-R12 | ||||
| 100 Kg/cm2 | 28 | 41 | 41 | 31 | 14.5 | 22 | 1" | MC28L-R16 | |||
| 35 | 46 | 50 | 36 | 15 | 20 | 1 1/4" | MC35L-R20 | ||||
| 42 | 55 | 60 | 39 | 16 | 22 | 1 1/2" | MC42L-R24 | ||||
| H | 630 Kg/cm2 | 6 | 17 | 17 | 28 | 13 | 14 | 1/4" | MC6H-R4 | ||
| 8 | 17 | 19 | 28 | 13 | 14 | 1/4" | MC8H-R4 | ||||
| 10 | 19 | 22 | 29 | 12.5 | 12 | 1/4" | MC10H-R4 | ||||
| 10 | 19 | 22 | 29 | 13 | 14 | 3/8" | MC10H-R6 | ||||
| 12 | 22 | 24 | 31 | 14.5 | 14 | 1/4" | MC12H-R4 | ||||
| 12 | 22 | 24 | 31 | 14.5 | 14 | 3/8" | MC12H-R6 | ||||
| 12 | 22 | 24 | 31 | 15 | 14 | 1/2" | MC12H-R8 | ||||
| 14 | 24 | 27 | 34 | 16 | 14 | 1/2" | MC14H-R8 | ||||
| 400 Kg/cm2 | 16 | 27 | 30 | 34 | 16 | 14 | 1/2" | MC16H-R8 | |||
| 20 | 32 | 36 | 40 | 17.35 | 19 | 3/4" | MC20H-R12 | ||||
| 25 | 41 | 46 | 44 | 20 | 22 | 1" | MC25H-R16 | ||||
| 250 Kg/cm2 | 30 | 55 | 50 | 47.5 | 21 | 20 | 1 1/4" | MC30H-R20 | |||
| 38 | 70 | 60 | 54 | 23 | 22 | 1 1/2" | MC38H-R24 | ||||
Male Connector (Stud End Taper Thread) |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | NPT THREAD |
||||
| N | PART NO. | ||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.02 | 0.39 | 0.55 | 1/4" | 4MCN | ||
| 1/4" | 0.75 | 0.67 | 1.02 | 0.39 | 0.55 | 3/8" | 4-6MCN | ||||
| 3/8" | 0.67 | 0.75 | 1.06 | 0.43 | 0.55 | 1/4" | 6-4MCN | ||||
| 3/8" | 0.75 | 0.75 | 1.07 | 0.44 | 0.55 | 3/8" | 6MCN | ||||
| 3/8" | 0.87 | 0.75 | 1.1 | 0.47 | 0.75 | 1/2" | 6-8MCN | ||||
| 1/2" | 0.87 | 0.94 | 1.12 | 0.45 | 0.55 | 3/8" | 8-6MCN | ||||
| 1/2" | 0.87 | 0.94 | 1.14 | 0.47 | 0.75 | 1/2" | 8MCN | ||||
| 3/4" | 1.18 | 1.25 | 1.23 | 0.47 | 0.75 | 1/2" | 12-8MCN | ||||
| 3/4" | 1.18 | 1.25 | 1.23 | 0.47 | 0.75 | 3/4" | 12MCN | ||||
| 3/4" | 1.42 | 1.25 | 1.23 | 0.47 | 0.94 | 1" | 12-16MCN | ||||
| 1" | 1.48 | 1.75 | 1.57 | 0.63 | 0.75 | 3/4" | 16-12MCN | ||||
| 1" | 1.48 | 1.75 | 1.57 | 0.63 | 0.94 | 1" | 16MCN | ||||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 1.77 | 0.71 | 0.94 | 1" | 20-16MCN | |||
| 1 1/4" | 1.75 | 1.97 | 1.77 | 0.71 | 0.97 | 1 1/4" | 20MCN | ||||
| 1 1/2" | 2.16 | 2.36 | 2.08 | 0.86 | 0.94 | 1" | 24-16MCN | ||||
| 1 1/2" | 2.16 | 2.36 | 2.08 | 0.87 | 1 | 1 1/2" | 24MCN | ||||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.94 | 1.06 | 1.18 | 0.47 | 0.55 | 1/4" | 4MCNBN | ||
| 1/4" | 0.98 | 1.06 | 1.18 | 0.47 | 0.75 | 1/2" | 4-8MCNBN | ||||
| 3/8" | 1.06 | 1.25 | 1.22 | 0.5 | 0.55 | 3/8" | 6MCNBN | ||||
| 1/2" | 1.18 | 1.41 | 1.34 | 0.49 | 0.55 | 1/4" | 8-4MCNBN | ||||
| 1/2" | 1.18 | 1.41 | 1.38 | 0.49 | 0.75 | 1/2" | 8MCNBN | ||||
| 3/4" | 1.48 | 1.61 | 1.57 | 0.59 | 0.75 | 3/4" | 12MCNBN | ||||
| 3000 PSI | 1" | 2 | 2.04 | 1.69 | 0.69 | 0.94 | 1" | 16MCNBN | |||
| 1 1/4' | 2.16 | 2.36 | 1.97 | 0.82 | 0.97 | 1 1/4" | 20MCNBN | ||||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 2.16 | 1.02 | 1 | 1 1/2" | 24MCNBN | |||
Male Connector (Stud End Taper Thread) |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | BSPT THREAD |
||||
| R | PART NO. | ||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.67 | 0.67 | 1.02 | 0.39 | 0.43 | 1/4" | 4MCR | ||
| 1/4" | 0.75 | 0.67 | 1.02 | 0.39 | 0.5 | 3/8" | 4-6MCR | ||||
| 3/8" | 0.67 | 0.75 | 1.06 | 0.43 | 0.43 | 1/4" | 6-4MCR | ||||
| 3/8" | 0.75 | 0.75 | 1.07 | 0.44 | 0.5 | 3/8" | 6MCR | ||||
| 3/8" | 0.87 | 0.75 | 1.1 | 0.47 | 0.63 | 1/2" | 6-8MCR | ||||
| 1/2" | 0.87 | 0.94 | 1.12 | 0.45 | 0.5 | 3/8" | 8-6MCR | ||||
| 1/2" | 0.87 | 0.94 | 1.14 | 0.47 | 0.63 | 1/2" | 8MCR | ||||
| 3/4" | 1.18 | 1.25 | 1.23 | 0.47 | 0.63 | 1/2" | 12-8MCR | ||||
| 3/4" | 1.18 | 1.25 | 1.23 | 0.47 | 0.75 | 3/4" | 12MCR | ||||
| 3/4" | 1.42 | 1.25 | 1.23 | 0.47 | 0.87 | 1" | 12-16MCR | ||||
| 1" | 1.48 | 1.75 | 1.57 | 0.63 | 0.75 | 3/4" | 16-12MCR | ||||
| 1" | 1.48 | 1.75 | 1.57 | 0.63 | 0.87 | 1" | 16MCR | ||||
| 3000 PSI | 1 1/4" | 1.75 | 1.97 | 1.77 | 0.71 | 0.87 | 1" | 20-16MCR | |||
| 1 1/4" | 1.75 | 1.97 | 1.77 | 0.71 | 1 | 1 1/4" | 20MCR | ||||
| 1 1/2" | 2.16 | 2.36 | 2.08 | 0.86 | 0.87 | 1" | 24-16MCR | ||||
| 1 1/2" | 2.16 | 2.36 | 2.08 | 0.87 | 1 | 1 1/2" | 24MCR | ||||
| NOM. BORE TUBE |
6000 PSI | 1/4" | 0.94 | 1.06 | 1.18 | 0.47 | 0.43 | 1/4" | 4MCNBR | ||
| 1/4" | 0.98 | 1.06 | 1.18 | 0.47 | 0.75 | 1/2" | 4-8MCNBR | ||||
| 3/8" | 1.06 | 1.25 | 1.22 | 0.5 | 0.5 | 3/8" | 6MCNBR | ||||
| 1/2" | 1.18 | 1.41 | 1.34 | 0.49 | 0.43 | 1/4" | 8-4MCNBR | ||||
| 1/2" | 1.18 | 1.41 | 1.38 | 0.49 | 0.63 | 1/2" | 8MCNBR | ||||
| 3/4" | 1.48 | 1.61 | 1.57 | 0.59 | 0.75 | 3/4" | 12MCNBR | ||||
| 3000 PSI | 1" | 2 | 2.04 | 1.69 | 0.69 | 0.88 | 1" | 16MCNBR | |||
| 1 1/4' | 2.16 | 2.36 | 1.97 | 0.82 | 1 | 1 1/4" | 20MCNBR | ||||
| 2000 PSI | 1 1/2" | 2.5 | 2.75 | 2.16 | 1.02 | 1 | 1 1/2" | 24MCNBR | |||
