Stainless Steel 304/304L,316/316L,904L Flareless Female Connector Manufacturer
Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Flareless Female Connector Fittings Manufacturer & Exporter
Duplex Steel 2205, Brass Alloy Instrumentation Flareless Female Connectors Fittings Supplier & Trader
Female Connector (Stud End Parallel Thread)Metric Od Tubes X BSP Female ThreadG Female Connector (Stud End Parallel Thread) Inch Od Tubes X BSP Female Thread G Female Connector (Stud End Parallel Thread) Metric Od Tubes X Metric Female Thread-M Female Connector (Stud End Parallel Thread) Inch Od Tubes X BSP Female Thread-G
Stainless Steel 304/304L Flareless Female Connector, Stainless Steel 316/316L Flareless Female Connector, Stainless Steel 904L Flareless Female Connector, Inconel 600 Flareless Female Connector, Inconel 625 Flareless Female Connector, Incoloy 800/800H Flareless Female Connector, Monel 400 Flareless Female Connector, Monel K500 Flareless Female Connector, Nickel 200 Flareless Female Connector, Nickel 201 Flareless Female Connector, Hastelloy C22 Flareless Female Connector, Hastelloy C276 Flareless Female Connector, Duplex Steel 2205 Flareless Female Connector, Brass Alloy Flareless Female Connector

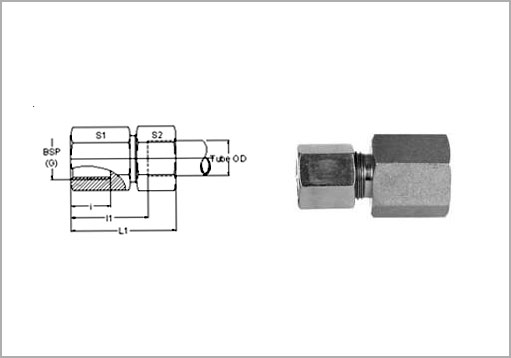

Specification for Flareless Female Connector
Female Connector (Stud End Parallel Thread)Metric Od Tubes X BSP Female Thread-G |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | BSP THREAD |
||||
| G | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 14 | 14 | 30 | 15 | 8 | 1/8 | FC6L-G2 | |
| 8 | 19 | 17 | 34 | 19 | 12 | 1/4 | FC8L-G4 | ||||
| 10 | 19 | 19 | 35 | 20 | 12 | 1/4 | FC10L-G4 | ||||
| 12 | 22 | 22 | 36 | 21 | 12 | 3/8 | FC12L-G6 | ||||
| 15 | 27 | 27 | 39 | 24 | 14 | 1/2 | FC15L-G8 | ||||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | 14 | 1/2 | FC158L-G8 | |||
| 22 | 32 | 36 | 45 | 28.5 | 16 | 3/4 | FC22L-G12 | ||||
| 100Kg/cm2 | 28 | 41 | 41 | 47 | 30.5 | 18 | 1 | FC28L-G16 | |||
| 35 | 50 | 50 | 54 | 32.5 | 20 | 1 1/4 | FC35L-G20 | ||||
| 42 | 55 | 60 | 57 | 34 | 22 | 1 1/2 | FC42L-G24 | ||||
| H | 630 Kg/cm2 | 6 | 19 | 17 | 36 | 21 | 12 | 1/4 | FC6H-G4 | ||
| 8 | 19 | 19 | 36 | 21 | 12 | 1/4 | FC8H-G4 | ||||
| 10 | 24 | 22 | 38 | 21.5 | 12 | 3/8 | FC10H-G6 | ||||
| 12 | 24 | 24 | 38 | 21.5 | 12 | 3/8 | FC12H-G6 | ||||
| 14 | 27 | 27 | 44 | 26 | 14 | 1/2 | FC14H-G8 | ||||
| 400 Kg/cm2 | 16 | 27 | 30 | 44 | 25.5 | 14 | 1/2 | FC16H-G8 | |||
| 20 | 36 | 36 | 50 | 28.5 | 16 | 3/4 | FC20H-G12 | ||||
| 25 | 41 | 46 | 55 | 31 | 18 | 1 | FC25H-G16 | ||||
| 250 Kg/cm2 | 30 | 55 | 50 | 62 | 35.5 | 20 | 1 1/4 | FC30H-G20 | |||
| 38 | 60 | 60 | 68 | 37 | 22 | 1 1/2 | FC38H-G24 | ||||
Female Connector (Stud End Parallel Thread) Inch Od Tubes X BSP Female Thread-G |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | BSP THREAD |
||||
| G | PART NO. | ||||||||||
| METRIC SIZE TUBE |
L | 250 Kg/cm2 | 6 | 14 | 14 | 30 | 15 | 8 | M10 X 1 | FC6L-M10 | |
| 8 | 19 | 17 | 34 | 19 | 12 | M12 X 1.5 | FC8L-M12 | ||||
| 10 | 19 | 19 | 35 | 20 | 12 | M14 X 1.5 | FC10L-M14 | ||||
| 12 | 22 | 22 | 36 | 21 | 12 | M16 X1.5 | FC12L-M16 | ||||
| 15 | 27 | 27 | 39 | 24 | 14 | M18 X 1.5 | FC15L-M18 | ||||
| 160 Kg/cm2 | 18 | 27 | 32 | 40 | 23.5 | 14 | M22 X 1.5 | FC158L-M22 | |||
| 22 | 32 | 36 | 45 | 28.5 | 16 | M26 X 1.5 | FC22L-M26 | ||||
| 100Kg/cm2 | 28 | 41 | 41 | 47 | 30.5 | 18 | M33 X 2 | FC28L-M33 | |||
| 35 | 50 | 50 | 54 | 32.5 | 20 | M42 X 2 | FC35L-M42 | ||||
| 42 | 55 | 60 | 57 | 34 | 22 | M48 X 2 | FC42L-M48 | ||||
| H | 630 Kg/cm2 | 6 | 19 | 17 | 36 | 21 | 12 | M12 X 1.5 | FC6H-M12 | ||
| 8 | 19 | 19 | 36 | 21 | 12 | M14 X 1.5 | FC8H-M14 | ||||
| 10 | 24 | 22 | 38 | 21.5 | 12 | M16 X 1.5 | FC10H-M16 | ||||
| 12 | 24 | 24 | 38 | 21.5 | 12 | M18 X 1.5 | FC12H-M18 | ||||
| 14 | 27 | 27 | 44 | 26 | 14 | M20 X 1.5 | FC14H-M20 | ||||
| 400 Kg/cm2 | 16 | 27 | 30 | 44 | 25.5 | 14 | M22 X 1.5 | FC16H-M22 | |||
| 20 | 36 | 36 | 50 | 28.5 | 16 | M27 X 1.5 | FC20H-M27 | ||||
| 25 | 41 | 46 | 55 | 31 | 18 | M33 X 2 | FC25H-M33 | ||||
| 250 Kg/cm2 | 30 | 55 | 50 | 62 | 35.5 | 20 | M42 X 2 | FC30H-M42 | |||
| 38 | 60 | 60 | 68 | 37 | 22 | M48 X 2 | FC38H-M48 | ||||
Female Connector (Stud End Parallel Thread) Metric Od Tubes X Metric Female Thread-M |
|||||||||||
| Female Connector (Stud End Parallel Thread) Inch Od Tubes X BSP Female Thread-G |
|||||||||||
| SERIES | TUBE OD. | S1 | S2 | L1 | l1 | i | BSP THREAD |
||||
| G | PART NO. | ||||||||||
| INCH SIZE OD TUBE |
6000 PSI | 1/4" | 0.75 | 0.67 | 1.42 | 0.79 | 0.43 | 1/4 | 4FCG | ||
| 1/4" | 0.87 | 0.67 | 1.53 | 0.94 | 0.5 | 3/8 | 4-6FCG | ||||
| 3/8" | 0.87 | 0.75 | 1.52 | 0.88 | 0.5 | 3/8 | 6FCG | ||||
| 3/8" | 1.06 | 0.75 | 1.65 | 1 | 0.63 | 1/2 | 6-8FCG | ||||
| 1/2" | 0.87 | 0.94 | 1.5 | 0.83 | 0.5 | 3/8 | 8-6FCG | ||||
| 1/2" | 0.95 | 0.94 | 1.63 | 0.96 | 0.63 | 1/2 | 8FCG | ||||
| 3/4" | 1.25 | 1.25 | 2 | 1.14 | 0.75 | 3/4 | 12FCG | ||||
| 1" | 1.61 | 1.75 | 2.3 | 1.35 | 0.88 | 1 | 16FCG | ||||
| 3000 PSI | 1 1/4" | 2 | 1.97 | 2.56 | 1.5 | 1 | 1 1/4 | 20FCG | |||
| 1 1/2" | 2.36 | 2.36 | 2.9 | 1.63 | 1 | 1 1/2 | 24FCG. | ||||
Exports for Flareless Female Connector
Metal Ministry inc. exports Flareless Female Connector in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Flareless Female Connector in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Flareless Female Connector feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
