Sweepolet Branch Outlet Fittings

Worldwide Exporter of Sweepolet Branch Outlet Fittings as per ASTM/ASME B564 ASME B16.11, ANSI/ASME B16.9, ANSI/ASME B16.25 or MSS SP-97.

Sweepolet Branch Outlet Fittings is manufactured in various grades of Stainless Steel, Nickel Alloys, Duplex/Super Duplex Steel, Cupro Nickel, Inconel, Incoloy, Monel, Hastelloy, Titanium & other High Temperature Alloys.

Sweepolet Branch Outlet Connection Fittings are available in Class 3000# and Class 6000# and all pipe schedules from SCH 10S to SCH XXS in Stainless Steel, Nickel Alloys, Carbon Steel & Alloy Steel.

METAL MINISTRY INC. is one of the leading Sweepolet Branch Outlet Fittings Manufacturer, Exporter & Supplier.With our skill in this area, we can offer an unrivaled quality scope of Sweepolet Branch Outlet Fittings. Sweepolet Branch Outlet Fittings is a shaped, fundamentally fortified, butt-weld branch association with a low anxiety escalation figure for low anxieties and long weakness life. The connection weld is effortlessly inspected by radiography, ultrasound and other standard non-ruinous methods. Fabricated to meet your particular fortification requirements. These Sweepolet Branch Outlet Fittings are generally notable for the most extreme yield and remarkable outcomes that it gives. Our Sweepolet Branch Outlet Fittings are accessible at market driving cost.
Sweepolet Fittings Manufacturer Exporter In Stainless Steel Nickel Alloys

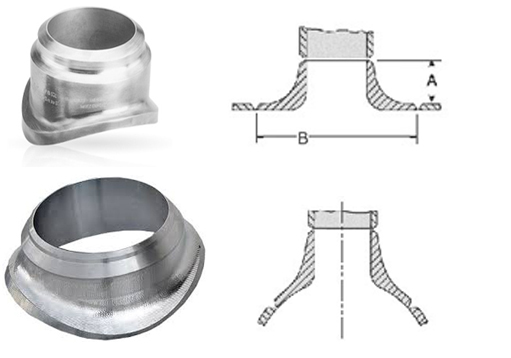

ASTM 105 Dimensions Sweepolets®

Run Size Outlet Size
Inches		 Dimensions
*A B
6 to 36 1 1/4 1 1/4 4
6 to 36 1 1/2 1 3/4 5 1/2
6 to 36 2 1 1/2 5 1/2
6 to 36 3 1 21/32 7
6 to 36 4 2 1/32 8 3/4
10 to 36 6 2 11/16 13
12 to 36 8 3 15
16 to 36 10 3 1/8 18 1/2
16 to 36 12 3 5/16 20 1/2
20 to 36 14 3 5/8 24
24 to 36 16 3 3/4 28
24 to 36 18 4 5/8 31
24 to 36 20 5 1/8 33
30 to 36 24 5 5/8 38

Specification of Sweepolet Branch Outlet Fitting

Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Outlet's : 1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

Stainless Steel Sweepolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Carbon Steel Sweepolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70

Alloy Steel Sweepolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91

MATERIALS :
Nickel Alloy Sweepolet :
Standard : ASTM / ASME SB 564 / 160 / 472.
Grades : UNS 10276 (HASTELLOY C 276 Sweepolet) / UNS 2200 (NICKEL 200 Sweepolet), UNS 2201 (NICKEL 201 Sweepolet), / UNS 4400 (MONEL 400 Sweepolet), UNS 8020 (ALLOY 20 Sweepolet) / UNS 8825 INCONEL 825 Sweepolet ), UNS 6600 (INCONEL 600 Sweepolet), / UNS 6601 (INCONEL 601 Sweepolet), UNS 6625 (INCONEL 625 Sweepolet).

Copper Alloy Sweepolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grades : C 70600 (CU -NI- 90/10) – Cupro Nickel Sweepolet C 71500 (CU -NI- 70/30) – Copper Nickel Sweepolet UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200

 Duplex Steel Sweepolet   ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  Stainless Steel Sweepolet –
SS Sweepolet		   ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
  Alloy Steel Sweepolet – AS Sweepolet   ASTM / ASME A/SA 182  F1/F5/F9/F11/F22/F91
  Carbon Steel Sweepolet–CS Sweepolet   ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
  Low Temperature Carbon Steel
Sweepolet – LTCS Sweepolet		   A350 LF3/A350 LF2

VALUE ADDED SERVICES
Hot Dip Galvanizing & Electro polish

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Nickel & Copper Alloy Forged Fittings & Outlets

Nickel Alloy Forged Fitting & Nickel Alloy Outlets Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

Copper Alloy Forged Fittings & Outlets

Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Stainless Steel 304/304L Sweepolet Branch Outlet Fittings, Stainless Steel 316/316L Sweepolet Branch Outlet Fittings, Stainless Steel 904L Sweepolet Branch Outlet Fittings, Nickel Alloy 200 Sweepolet Branch Outlet Fittings, Nickel Alloy 201 Sweepolet Branch Outlet Fittings, Inconel Alloy 600 Sweepolet Branch Outlet Fittings, Inconel Alloy 625 Sweepolet Branch Outlet Fittings, Incoloy 800/800H Sweepolet Branch Outlet Fittings, Hastelloy C22 Sweepolet Branch Outlet Fittings, Hastelloy C276 Sweepolet Branch Outlet Fittings, Monel Alloy 400 Sweepolet Branch Outlet Fittings, Monel Alloy K500 Sweepolet Branch Outlet Fittings, Titanium Alloy Gr1 Sweepolet Branch Outlet Fittings, Titanium Alloy Gr2 Sweepolet Branch Outlet Fittings, Titanium Alloy Gr5 Sweepolet Branch Outlet Fittings, Titanium Alloy Gr7 Sweepolet Branch Outlet Fittings, Duplex Steel 2205 Sweepolet Branch Outlet Fittings, Super Duplex Steel 2507 Sweepolet Branch Outlet Fittings, Carbon Steel Sweepolet Branch Outlet Fittings, Alloy Steel Sweepolet Branch Outlet Fittings.

Exports for Stainless Steel, Nickel Alloy Sweepolet Branch Outlet Fittings

Metal Ministry inc. exports Stainless Steel, Nickel Alloy Sweepolet Branch Outlet Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Stainless Steel, Nickel Alloy Sweepolet Branch Outlet Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Stainless Steel, Nickel Alloy Sweepolet Branch Outlet Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
