Coupolet Branch Outlet Fittings

Worldwide Exporter of Coupolet Branch Outlet Fittings as per ASTM/ASME B564 ASME B16.11, ANSI/ASME B16.9, ANSI/ASME B16.25 or MSS SP-97.

Coupolet Branch Outlet Fittings is manufactured in various grades of Stainless Steel, Nickel Alloys, Duplex/Super Duplex Steel, Cupro Nickel, Inconel, Incoloy, Monel, Hastelloy, Titanium & other High Temperature Alloys.

Coupolet Branch Outlet Connection Fittings are available in Class 3000# and Class 6000# and all pipe schedules from SCH 10S to SCH XXS in Stainless Steel, Nickel Alloys, Carbon Steel & Alloy Steel.

METAL MINISTRY INC. is one of the leading Coupolet Branch Outlet Fittings Manufacturer, Exporter & Supplier. We are path forward in assembling and providing Coupolet. In regard for keep up the nature of the Coupolet Branch Outlet Fittings, we put the Coupolet Branch Outlet Fittings under different tests before conveying it. This Coupolet Branch Outlet Fitting contains productive components in it, for example, it withstands high temperature and weight in addition, it is anything but difficult to introduce. Coupolet Branch Outlet Fittings are very respected for exceptional capacity to withstand high weight conditions and guarantee smooth stream of liquids. It is made from the best grades of steel compounds and can be benefited in various standard and additionally tweaked details at sensible rates by our esteemed clients.

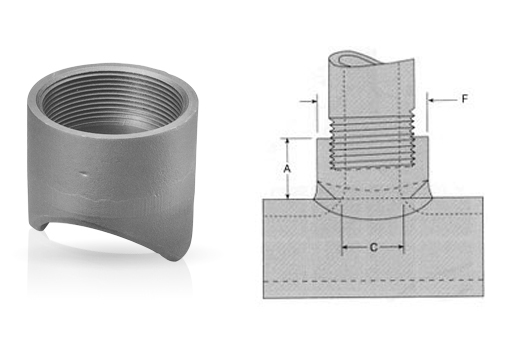

Coupolet Fittings Manufacturer Exporter In Stainless Steel Nickel Alloys

ASTM 105 Dimensions Coupolets®

300# Female Threaded Coupolet
Nominal
Outlet Size		 Dimensions
A C F
1/2 15/16 0.745 1.188
3/4 1 0.958 1.441
1 1 3/16 1.188 1.562
1 1/4 1 5/16 1.550 1.906
1 1/2 1 9/16 1.780 2.188
2 1 11/16 2.260 2.750
2 1/2 1 13/16 2.890 3.386
3 2 1/2 3.400 4.000
4 3 4.380 5.000

Interchangeability or Combination of Sizes of Coupolets®

Coupolet Outlet
Size Inches		 Run Sizes
1/2 1/2 3/4 1 1/4 -1 8-3 36-10
3/4 3/4 1 2 – 1 1/4 36-8
1 1 1 1/4 2 – 1 1/2 8-5 36-10
1 1/4 1 1/4 1 1/2 2 1/2 – 2 8-5 36-10
1 1/2 1 1/2 2 2 1/2 8-5 16-10 36-18
2 2 2 1/2 3 4 5 6 8 10 16-12 36-18
2 1/2 2 1/2 3 3 1/2 5 6 8 12-10 16-14 36-18
3 3 3 1/2 4 6 8 10 12 14 18-16 36-20
4 5 6 8 14-12 16 18 20 24 36

Specification of Coupolet Branch Outlet Fitting

Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Outlet's : 1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

Stainless Steel Coupolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Carbon Steel Coupolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70

Alloy Steel Coupolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91

MATERIALS :
Nickel Alloy Coupolet :
Standard : ASTM / ASME SB 564 / 160 / 472.
Grades : UNS 10276 (HASTELLOY C 276 Coupolet) / UNS 2200 (NICKEL 200 Coupolet), UNS 2201 (NICKEL 201 Coupolet), / UNS 4400 (MONEL 400 Coupolet), UNS 8020 (ALLOY 20 Coupolet) / UNS 8825 INCONEL 825 Coupolet ), UNS 6600 (INCONEL 600 Coupolet), / UNS 6601 (INCONEL 601 Coupolet), UNS 6625 (INCONEL 625 Coupolet).

Copper Alloy Coupolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grades : C 70600 (CU -NI- 90/10) – Cupro Nickel Coupolet C 71500 (CU -NI- 70/30) – Copper Nickel Coupolet UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200

 Duplex Steel Coupolet   ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.
  Stainless Steel Coupolet –
SS Coupolet		   ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
  Alloy Steel Coupolet – AS Coupolet   ASTM / ASME A/SA 182  F1/F5/F9/F11/F22/F91
  Carbon Steel Coupolet–CS Coupolet   ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
  Low Temperature Carbon Steel
Coupolet – LTCS Coupolet		   A350 LF3/A350 LF2

VALUE ADDED SERVICES
Hot Dip Galvanizing & Electro polish

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Nickel & Copper Alloy Forged Fittings & Outlets

Nickel Alloy Forged Fitting & Nickel Alloy Outlets Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

Copper Alloy Forged Fittings & Outlets

Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Stainless Steel 304/304L Coupolet Branch Outlet Fittings, Stainless Steel 316/316L Coupolet Branch Outlet Fittings, Stainless Steel 904L Coupolet Branch Outlet Fittings, Nickel Alloy 200 Coupolet Branch Outlet Fittings, Nickel Alloy 201 Coupolet Branch Outlet Fittings, Inconel Alloy 600 Coupolet Branch Outlet Fittings, Inconel Alloy 625 Coupolet Branch Outlet Fittings, Incoloy 800/800H Coupolet Branch Outlet Fittings, Hastelloy C22 Coupolet Branch Outlet Fittings, Hastelloy C276 Coupolet Branch Outlet Fittings, Monel Alloy 400 Coupolet Branch Outlet Fittings, Monel Alloy K500 Coupolet Branch Outlet Fittings, Titanium Alloy Gr1 Coupolet Branch Outlet Fittings, Titanium Alloy Gr2 Coupolet Branch Outlet Fittings, Titanium Alloy Gr5 Coupolet Branch Outlet Fittings, Titanium Alloy Gr7 Coupolet Branch Outlet Fittings, Duplex Steel 2205 Coupolet Branch Outlet Fittings, Super Duplex Steel 2507 Coupolet Branch Outlet Fittings, Carbon Steel Coupolet Branch Outlet Fittings, Alloy Steel Coupolet Branch Outlet Fittings.

Exports for Stainless Steel, Nickel Alloy Coupolet Branch Outlet Fittings

Metal Ministry inc. exports Stainless Steel, Nickel Alloy Coupolet Branch Outlet Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Stainless Steel, Nickel Alloy Coupolet Branch Outlet Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Stainless Steel, Nickel Alloy Coupolet Branch Outlet Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
