Worldwide Exporter of Elbolet Branch Outlet Fittings as per ASTM/ASME B564 ASME B16.11, ANSI/ASME B16.9, ANSI/ASME B16.25 or MSS SP-97.
Elbolet Branch Outlet Fittings is manufactured in various grades of Stainless Steel, Nickel Alloys, Duplex/Super Duplex Steel, Cupro Nickel, Inconel, Incoloy, Monel, Hastelloy, Titanium & other High Temperature Alloys.
Elbolet Branch Outlet Connection Fittings are available in Class 3000# and Class 6000# and all pipe schedules from SCH 10S to SCH XXS in Stainless Steel, Nickel Alloys, Carbon Steel & Alloy Steel.

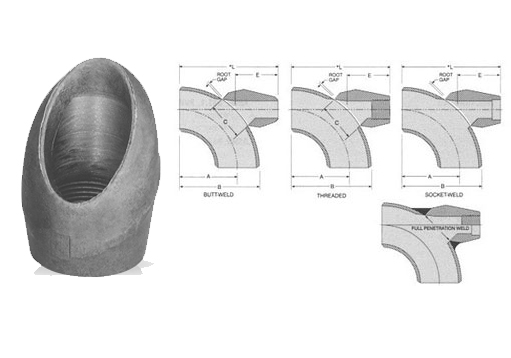

| Nominal Elbow Size Inches |
Outlet Size Inches |
Dimensions | |||
| CL 3000 Threaded & Socket Weld Std. & XS Butt-Weld |
CL 6000 Threaded & Socket Socket-Weld Sch. 160 & XXS Butt-Weld |
||||
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | ||
| **2 1/2 | 4 3/16 | 3 1/4 | |||
| **3 | 5 1/16 | 3 7/8 | |||
| Order to Specific | **4 | 6 5/8 | 4 13/16 | ||
| Elbow Sizes | **6 | 9 3/8 | 6 1/2 | ** | ** |
| **8 | 13 5/16 | 8 1/16 | |||
| **10 | 17 1/32 | 10 3/8 | |||
| **12 | 19 5/8 | 11 1/8 | |||
Specification of Elbolet Branch Outlet Fitting
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Outlet's : 1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.
Stainless Steel Elbolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Elbolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Alloy Steel Elbolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
MATERIALS :
Nickel Alloy Elbolet :
Standard : ASTM / ASME SB 564 / 160 / 472.
Grades : UNS 10276 (HASTELLOY C 276 Elbolet) / UNS 2200 (NICKEL 200 Elbolet),
UNS 2201 (NICKEL 201 Elbolet), / UNS 4400 (MONEL 400 Elbolet),
UNS 8020 (ALLOY 20 Elbolet) / UNS 8825 INCONEL 825 Elbolet ),
UNS 6600 (INCONEL 600 Elbolet), / UNS 6601 (INCONEL 601 Elbolet),
UNS 6625 (INCONEL 625 Elbolet).
Copper Alloy Elbolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grades : C 70600 (CU -NI- 90/10) – Cupro Nickel Elbolet
C 71500 (CU -NI- 70/30) – Copper Nickel Elbolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
| Duplex Steel Elbolet | ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| Stainless Steel Elbolet – SS Elbolet |
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Alloy Steel Elbolet – AS Elbolet | ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91 |
| Carbon Steel Elbolet–CS Elbolet | ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70 |
| Low Temperature Carbon Steel Elbolet – LTCS Elbolet |
A350 LF3/A350 LF2 |
VALUE ADDED SERVICES
Hot Dip Galvanizing & Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Nickel & Copper Alloy Forged Fittings & Outlets
Nickel Alloy Forged Fitting &
Nickel Alloy Outlets
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Copper Alloy Forged Fittings & Outlets
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Stainless Steel 304/304L Elbolet Branch Outlet Fittings, Stainless Steel 316/316L Elbolet Branch Outlet Fittings, Stainless Steel 904L Elbolet Branch Outlet Fittings, Nickel Alloy 200 Elbolet Branch Outlet Fittings, Nickel Alloy 201 Elbolet Branch Outlet Fittings, Inconel Alloy 600 Elbolet Branch Outlet Fittings, Inconel Alloy 625 Elbolet Branch Outlet Fittings, Incoloy 800/800H Elbolet Branch Outlet Fittings, Hastelloy C22 Elbolet Branch Outlet Fittings, Hastelloy C276 Elbolet Branch Outlet Fittings, Monel Alloy 400 Elbolet Branch Outlet Fittings, Monel Alloy K500 Elbolet Branch Outlet Fittings, Titanium Alloy Gr1 Elbolet Branch Outlet Fittings, Titanium Alloy Gr2 Elbolet Branch Outlet Fittings, Titanium Alloy Gr5 Elbolet Branch Outlet Fittings, Titanium Alloy Gr7 Elbolet Branch Outlet Fittings, Duplex Steel 2205 Elbolet Branch Outlet Fittings, Super Duplex Steel 2507 Elbolet Branch Outlet Fittings, Carbon Steel Elbolet Branch Outlet Fittings, Alloy Steel Elbolet Branch Outlet Fittings.
Exports for Stainless Steel, Nickel Alloy Elbolet Branch Outlet Fittings
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Elbolet Branch Outlet Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Elbolet Branch Outlet Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Stainless Steel, Nickel Alloy Elbolet Branch Outlet Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
