Worldwide Exporter of Brazolet Branch Outlet Fittings as per ASTM/ASME B564 ASME B16.11, ANSI/ASME B16.9, ANSI/ASME B16.25 or MSS SP-97.
Brazolet Branch Outlet Fittings is manufactured in various grades of Stainless Steel, Nickel Alloys, Duplex/Super Duplex Steel, Cupro Nickel, Inconel, Incoloy, Monel, Hastelloy, Titanium & other High Temperature Alloys.
Brazolet Branch Outlet Connection Fittings are available in Class 3000# and Class 6000# and all pipe schedules from SCH 10S to SCH XXS in Stainless Steel, Nickel Alloys, Carbon Steel & Alloy Steel.

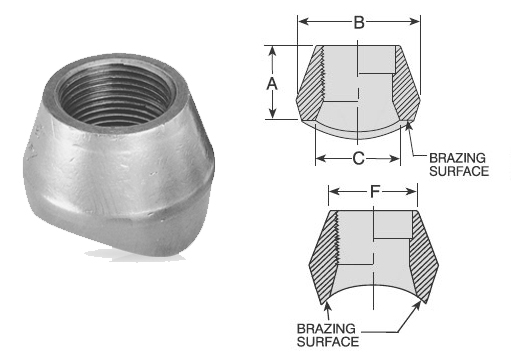

| Brazolet® for IPS Pipe | |||||
| ASME SB-98 UNS C665500 Alloy A | |||||
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 3/4 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/4 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 2 1/2 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 3 | 2 | 4 13/16 | 3 11/16 | 0.442 | 3.880 |
| 4 | 2 1/4 | 6 | 4 3/4 | 0.476 | 4.940 |
| 5 | 2 5/8 | 7 1/16 | 5 9/16 | 0.656 | 6.163 |
| Brazolet® for Tubing | |||||
| Type K, L, and M Tubing. ASME SB-98 UNS C65500 Alloy A | |||||
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 3/4 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 1 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 1/4 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/2 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 1/2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 3 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 4 | 2 1/8 | 5 1/2 | 4 5/16 | 0.437 | 4.400 |
Specification of Brazolet Branch Outlet Fitting
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Outlet's : 1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.
Stainless Steel Brazolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Brazolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Alloy Steel Brazolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
MATERIALS :
Nickel Alloy Brazolet :
Standard : ASTM / ASME SB 564 / 160 / 472.
Grades : UNS 10276 (HASTELLOY C 276 Brazolet) / UNS 2200 (NICKEL 200 Brazolet),
UNS 2201 (NICKEL 201 Brazolet), / UNS 4400 (MONEL 400 Brazolet),
UNS 8020 (ALLOY 20 Brazolet) / UNS 8825 INCONEL 825 Brazolet ),
UNS 6600 (INCONEL 600 Brazolet), / UNS 6601 (INCONEL 601 Brazolet),
UNS 6625 (INCONEL 625 Brazolet).
Copper Alloy Brazolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grades : C 70600 (CU -NI- 90/10) – Cupro Nickel Brazolet
C 71500 (CU -NI- 70/30) – Copper Nickel Brazolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
| Duplex Steel Brazolet | ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| Stainless Steel Brazolet – SS Brazolet |
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Alloy Steel Brazolet – AS Brazolet | ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91 |
| Carbon Steel Brazolet–CS Brazolet | ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70 |
| Low Temperature Carbon Steel Brazolet – LTCS Brazolet |
A350 LF3/A350 LF2 |
VALUE ADDED SERVICES
Hot Dip Galvanizing & Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Nickel & Copper Alloy Forged Fittings & Outlets
Nickel Alloy Forged Fitting &
Nickel Alloy Outlets
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Copper Alloy Forged Fittings & Outlets
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Stainless Steel 304/304L Brazolet Branch Outlet Fittings, Stainless Steel 316/316L Brazolet Branch Outlet Fittings, Stainless Steel 904L Brazolet Branch Outlet Fittings, Nickel Alloy 200 Brazolet Branch Outlet Fittings, Nickel Alloy 201 Brazolet Branch Outlet Fittings, Inconel Alloy 600 Brazolet Branch Outlet Fittings, Inconel Alloy 625 Brazolet Branch Outlet Fittings, Incoloy 800/800H Brazolet Branch Outlet Fittings, Hastelloy C22 Brazolet Branch Outlet Fittings, Hastelloy C276 Brazolet Branch Outlet Fittings, Monel Alloy 400 Brazolet Branch Outlet Fittings, Monel Alloy K500 Brazolet Branch Outlet Fittings, Titanium Alloy Gr1 Brazolet Branch Outlet Fittings, Titanium Alloy Gr2 Brazolet Branch Outlet Fittings, Titanium Alloy Gr5 Brazolet Branch Outlet Fittings, Titanium Alloy Gr7 Brazolet Branch Outlet Fittings, Duplex Steel 2205 Brazolet Branch Outlet Fittings, Super Duplex Steel 2507 Brazolet Branch Outlet Fittings, Carbon Steel Brazolet Branch Outlet Fittings, Alloy Steel Brazolet Branch Outlet Fittings.
Exports for Stainless Steel, Nickel Alloy Brazolet Branch Outlet Fittings
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Brazolet Branch Outlet Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Brazolet Branch Outlet Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Stainless Steel, Nickel Alloy Brazolet Branch Outlet Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
