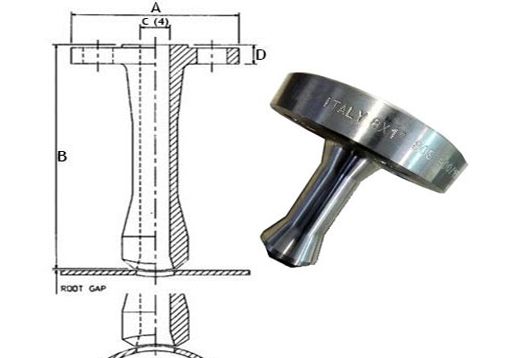

Worldwide Exporter of Nipoflange Branch Outlet Fittings as per ASTM/ASME B564 ASME B16.11, ANSI/ASME B16.9, ANSI/ASME B16.25 or MSS SP-97.
Nipoflange Branch Outlet Fittings is manufactured in various grades of Stainless Steel, Nickel Alloys, Duplex/Super Duplex Steel, Cupro Nickel, Inconel, Incoloy, Monel, Hastelloy, Titanium & other High Temperature Alloys.
Nipoflange Branch Outlet Connection Fittings are available in Class 3000# and Class 6000# and all pipe schedules from SCH 10S to SCH XXS in Stainless Steel, Nickel Alloys, Carbon Steel & Alloy Steel.

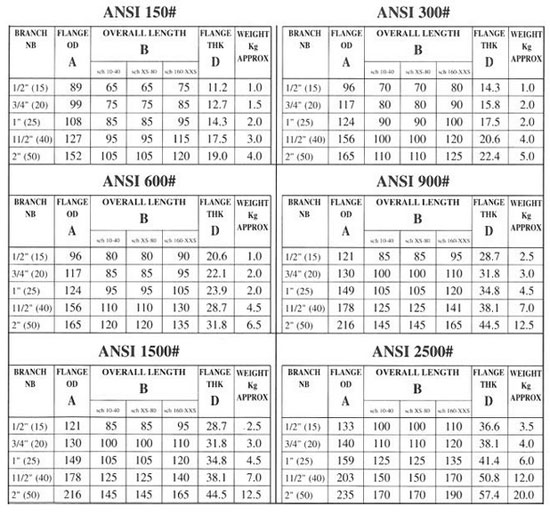

Specification of Nipoflange Branch Outlet Fitting
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Outlet's : 1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.
Stainless Steel Nipoflange
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Nipoflange
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Alloy Steel Nipoflange
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
MATERIALS :
Nickel Alloy Nipoflange :
Standard : ASTM / ASME SB 564 / 160 / 472.
Grades : UNS 10276 (HASTELLOY C 276 Nipoflange) / UNS 2200 (NICKEL 200 Nipoflange),
UNS 2201 (NICKEL 201 Nipoflange), / UNS 4400 (MONEL 400 Nipoflange),
UNS 8020 (ALLOY 20 Nipoflange) / UNS 8825 INCONEL 825 Nipoflange ),
UNS 6600 (INCONEL 600 Nipoflange), / UNS 6601 (INCONEL 601 Nipoflange),
UNS 6625 (INCONEL 625 Nipoflange).
Copper Alloy Nipoflange
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grades : C 70600 (CU -NI- 90/10) – Cupro Nickel Nipoflange
C 71500 (CU -NI- 70/30) – Copper Nickel Nipoflange
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
| Duplex Steel Nipoflange | ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| Stainless Steel Nipoflange – SS Nipoflange |
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Alloy Steel Nipoflange – AS Nipoflange | ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91 |
| Carbon Steel Nipoflange–CS Nipoflange | ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70 |
| Low Temperature Carbon Steel Nipoflange – LTCS Nipoflange |
A350 LF3/A350 LF2 |
VALUE ADDED SERVICES
Hot Dip Galvanizing & Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Nickel & Copper Alloy Forged Fittings & Outlets
Nickel Alloy Forged Fitting &
Nickel Alloy Outlets
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Copper Alloy Forged Fittings & Outlets
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Stainless Steel 304/304L Nipoflange Branch Outlet Fittings, Stainless Steel 316/316L Nipoflange Branch Outlet Fittings, Stainless Steel 904L Nipoflange Branch Outlet Fittings, Nickel Alloy 200 Nipoflange Branch Outlet Fittings, Nickel Alloy 201 Nipoflange Branch Outlet Fittings, Inconel Alloy 600 Nipoflange Branch Outlet Fittings, Inconel Alloy 625 Nipoflange Branch Outlet Fittings, Incoloy 800/800H Nipoflange Branch Outlet Fittings, Hastelloy C22 Nipoflange Branch Outlet Fittings, Hastelloy C276 Nipoflange Branch Outlet Fittings, Monel Alloy 400 Nipoflange Branch Outlet Fittings, Monel Alloy K500 Nipoflange Branch Outlet Fittings, Titanium Alloy Gr1 Nipoflange Branch Outlet Fittings, Titanium Alloy Gr2 Nipoflange Branch Outlet Fittings, Titanium Alloy Gr5 Nipoflange Branch Outlet Fittings, Titanium Alloy Gr7 Nipoflange Branch Outlet Fittings, Duplex Steel 2205 Nipoflange Branch Outlet Fittings, Super Duplex Steel 2507 Nipoflange Branch Outlet Fittings, Carbon Steel Nipoflange Branch Outlet Fittings, Alloy Steel Nipoflange Branch Outlet Fittings.
Exports for Stainless Steel, Nickel Alloy Nipoflange Branch Outlet Fittings
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Nipoflange Branch Outlet Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Nipoflange Branch Outlet Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Stainless Steel, Nickel Alloy Nipoflange Branch Outlet Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
