Worldwide Exporter of Sockolet Branch Outlet Fittings as per ASTM/ASME B564 ASME B16.11, ANSI/ASME B16.9, ANSI/ASME B16.25 or MSS SP-97.
Sockolet Branch Outlet Fittings is manufactured in various grades of Stainless Steel, Nickel Alloys, Duplex/Super Duplex Steel, Cupro Nickel, Inconel, Incoloy, Monel, Hastelloy, Titanium & other High Temperature Alloys.
Sockolet Branch Outlet Connection Fittings are available in Class 3000# and Class 6000# and all pipe schedules from SCH 10S to SCH XXS in Stainless Steel, Nickel Alloys, Carbon Steel & Alloy Steel.
Highlights:
Scraped area resistance
Hearty development
Longer administration life

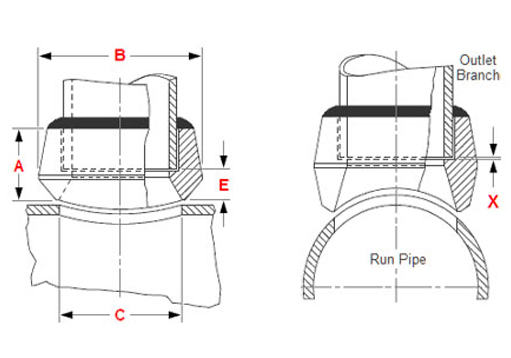

| NPS | A | B | C | D | E | |
| 1/2 | INCH MM |
1 25.40 |
1-13/32 35.71 |
29/32 23.01 |
0.622 15.80 |
9/16 14.28 |
| 3/4 | INCH MM |
1-1/16 26.98 |
1-23/32 43.65 |
1-5/32 29.36 |
0.824 20.93 |
9/16 14.28 |
| 1 | INCH MM |
1-5/16 33.33 |
2 50.8 |
1-7/16 36.51 |
1.049 26.64 |
25/32 19.84 |
| 1¼ | INCH MM |
1-5/16 33.33 |
2-9/16 65.08 |
1-3/4 44.45 |
1.380 35.05 |
3/4 19.05 |
| 1½ | INCH MM |
1-3/8 34.92 |
2-27/32 72.23 |
2 50.8 |
1.610 40.89 |
3/4 19.05 |
| 2 | INCH MM |
1-1/2 38.1 |
3-15/32 88.10 |
2-9/16 65.08 |
2.067 52.50 |
13/16 20.63 |
| 2½ | INCH MM |
1-9/16 39.68 |
4-1/16 103.18 |
3 76.2 |
2.469 62.71 |
3/4 19.05 |
| 3 | INCH MM |
1-3/4 44.45 |
4-13/16 122.23 |
3-11/16 93.66 |
3.068 77.93 |
15/16 23.81 |
| 3½ | INCH MM |
1-11/16 42.86 |
5-3/8 136.52 |
4-7/16 112.71 |
3.548 90.12 |
11/16 17.46 |
| 4 | INCH MM |
1-7/8 47.62 |
5-31/32 151.60 |
4-3/4 120.65 |
4.026 102.26 |
1-1/16 26.98 |
| 5 | INCH MM |
2-5/8 66.67 |
7-5/16 185.73 |
5-9/16 141.28 |
5.047 128.19 |
1-11/32 34.13 |
| 6 | INCH MM |
2-3/4 69.85 |
8-5/8 219.07 |
6-11/16 169.86 |
6.065 154.05 |
1-13/32 35.71 |
| X = Min. 1/16 (1.6 mm) | ||||||
| NPS | A | B | C | D | E | |
| 1/2 | INCH MM |
1-1/4 31.75 |
1-23/32 43.65 |
3/4 19.05 |
0.466 11.84 |
7/8 22.22 |
| 3/4 | INCH MM |
1-7/16 36.51 |
1-61/64 49.60 |
1 25.4 |
0.614 15.60 |
7/8 22.22 |
| 1 | INCH MM |
1-9/16 39.68 |
2-7/16 61.91 |
1-5/16 33.33 |
0.815 20.70 |
15/16 23.81 |
| 1¼ | INCH MM |
1-5/8 41.27 |
2-23/32 69.05 |
1-1/2 38.1 |
1.160 29.46 |
13/16 20.63 |
| 1½ | INCH MM |
1-11/16 42.86 |
3-1/4 82.55 |
1-15/16 49.21 |
1.338 33.99 |
7/8 22.22 |
| 2 | INCH MM |
2-1/16 52.38 |
4-1/32 102.39 |
2-3/4 69.85 |
1.689 42.90 |
1-3/16 30.16 |
| X = Min. 1/16 (1.6 mm) | ||||||
| NPS | A | B | C | D | E | |
| 1/2 | INCH MM |
1 25.4 |
1-3/8 34.92 |
15/16 23.81 |
0.622 15.80 |
17/32 13.49 |
| 3/4 | INCH MM |
1-1/16 26.98 |
1-5/8 41.27 |
1-3/16 30.16 |
0.824 20.93 |
15/32 11.90 |
| 1 | INCH MM |
1-5/16 33.33 |
2 50.8 |
1-7/16 36.51 |
1.049 26.64 |
23/32 18.25 |
| 1¼ | INCH MM |
1-5/16 33.33 |
2-3/8 60.32 |
1-3/4 44.45 |
1.380 35.05 |
9/16 14.28 |
| 1½ | INCH MM |
1-3/8 34.92 |
2-7/8 73.02 |
2 50.8 |
1.610 40.89 |
21/32 16.66 |
| 2 | INCH MM |
1-1/2 38.1 |
3-1/2 88.9 |
2-9/16 65.08 |
2.067 52.50 |
15/16 23.81 |
| 2½ | INCH MM |
1-9/16 39.68 |
4-1/16 103.18 |
3 76.2 |
2.469 62.71 |
3/4 19.05 |
| 3 | INCH MM |
1-3/4 44.45 |
4-13/16 122.23 |
3-11/16 93.66 |
3.068 77.93 |
15/16 23.81 |
| 3½ | INCH MM |
1-11/16 42.86 |
5-3/8 136.52 |
4-7/16 112.71 |
3.548 90.12 |
11/16 17.46 |
| 4 | INCH MM |
1-7/8 47.62 |
6-1/16 153.98 |
4-3/4 120.65 |
4.026 102.26 |
1-1/16 26.98 |
| 5 | INCH MM |
2-7/16 61.91 |
7-1/4 184.15 |
5-1/4 133.35 |
5.047 128.19 |
1 25.4 |
| 6 | INCH MM |
2-11/16 68.26 |
8-11/16 220.66 |
6-1/16 153.98 |
6.065 154.05 |
1-3/16 30.16 |
| X = Min. 1/16 (1.6 mm) | ||||||
Specification of Sockolet Branch Outlet Fitting
Size : 1/2"NB TO 24"NB IN
Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
MATERIALS :
Nickel Alloy Sockolet :
Standard : ASTM / ASME SB 564 / 160 / 472.
Grades : UNS 10276 (HASTELLOY C 276 Sockolet) / UNS 2200 (NICKEL 200 Sockolet),
UNS 2201 (NICKEL 201 Sockolet), / UNS 4400 (MONEL 400 Sockolet),
UNS 8020 (ALLOY 20 Sockolet) / UNS 8825 INCONEL 825 Sockolet ),
UNS 6600 (INCONEL 600 Sockolet), / UNS 6601 (INCONEL 601 Sockolet),
UNS 6625 (INCONEL 625 Sockolet).
Copper Alloy Sockolet
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grades : C 70600 (CU -NI- 90/10) – Cupro Nickel Sockolet
C 71500 (CU -NI- 70/30) – Copper Nickel Sockolet
UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100,
C 10200, C 10300, C 10800, C 12000, C 12200
| Duplex Steel Sockolet | ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. |
| Stainless Steel Sockolet – SS Sockolet |
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Alloy Steel Sockolet – AS Sockolet | ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91 |
| Carbon Steel Sockolet–CS Sockolet | ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70 |
| Low Temperature Carbon Steel Sockolet – LTCS Sockolet |
A350 LF3/A350 LF2 |
VALUE ADDED SERVICES
Hot Dip Galvanizing & Electro polish
TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B
Stainless Steel
Duplex Forged Fittings & Outlets
Stainless Steel Forged Fitting & Stainless Steel Outlets
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Duplex Steel Forged Fitting & Super Duplex Forged Fittings
Duplex Steel Outlets & Super Duplex Outlets
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61.
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Carbon & Alloy Steel Forged Fittings & Outlets
Carbon Steel Forged Fittings &
Carbon Steel Outlets
Standard : ASTMA 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Alloy Steel Forged Fittings
Alloy Steel Outlets
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Nickel & Copper Alloy Forged Fittings & Outlets
Nickel Alloy Forged Fitting &
Nickel Alloy Outlets
Standard : ASTM / ASME SB 564 / 160 / 472
Grade : UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
Copper Alloy Forged Fittings & Outlets
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
SPECIFICATIONS AS PER THE INTERNATIONAL STANDARD
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Stainless Steel 304/304L Sockolet Branch Outlet Fittings, Stainless Steel 316/316L Sockolet Branch Outlet Fittings, Stainless Steel 904L Sockolet Branch Outlet Fittings, Nickel Alloy 200 Sockolet Branch Outlet Fittings, Nickel Alloy 201 Sockolet Branch Outlet Fittings, Inconel Alloy 600 Sockolet Branch Outlet Fittings, Inconel Alloy 625 Sockolet Branch Outlet Fittings, Incoloy 800/800H Sockolet Branch Outlet Fittings, Hastelloy C22 Sockolet Branch Outlet Fittings, Hastelloy C276 Sockolet Branch Outlet Fittings, Monel Alloy 400 Sockolet Branch Outlet Fittings, Monel Alloy K500 Sockolet Branch Outlet Fittings, Titanium Alloy Gr1 Sockolet Branch Outlet Fittings, Titanium Alloy Gr2 Sockolet Branch Outlet Fittings, Titanium Alloy Gr5 Sockolet Branch Outlet Fittings, Titanium Alloy Gr7 Sockolet Branch Outlet Fittings, Duplex Steel 2205 Sockolet Branch Outlet Fittings, Super Duplex Steel 2507 Sockolet Branch Outlet Fittings, Carbon Steel Sockolet Branch Outlet Fittings, Alloy Steel Sockolet Branch Outlet Fittings.
Exports for Stainless Steel, Nickel Alloy Sockolet Branch Outlet Fittings
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Sockolet Branch Outlet Fittings in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Stainless Steel, Nickel Alloy Sockolet Branch Outlet Fittings in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Stainless Steel, Nickel Alloy Sockolet Branch Outlet Fittings feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
