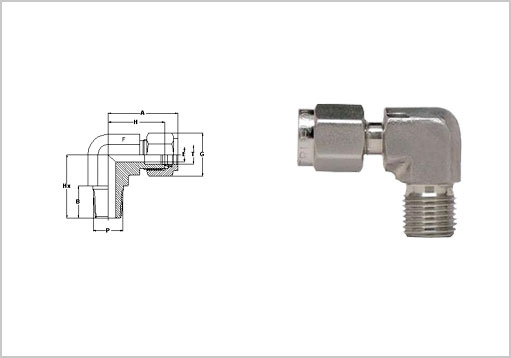

Male Elbow (Stud End Taper Thread) Metric Od Tubes X Npt Thread N |
|||||||||||
TUBE OD |
NPT MALE |
A | B | C | D | E | F | G | Hx | Hy | PART No. |
inch | P | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
3 | 1/8 | 23.6 | 9.6 | 15.3 | 12.9 | 2.4 | 11 | 11 | 17 | 17.8 | D-ME3-N2 |
3 | 1/4 | 24.6 | 14.3 | 15.3 | 12.9 | 2.4 | 14 | 11 | 18 | 23.4 | D-ME3-N4 |
6 | 1/8 | 27 | 9.6 | 17.7 | 15.3 | 4.8 | 14 | 14 | 19.6 | 18.8 | D-ME6-N2 |
6 | 1/4 | 27 | 14.3 | 17.7 | 15.3 | 4.8 | 14 | 14 | 19.6 | 23.4 | D-ME6-N4 |
6 | 3/8 | 29.8 | 14.3 | 17.7 | 15.3 | 4.8 | 17 | 14 | 22.4 | 26.2 | D-ME6-N6 |
6 | 1/2 | 31.8 | 19.1 | 17.7 | 15.3 | 4.8 | 22 | 14 | 24.4 | 33 | D-ME6-N8 |
8 | 1/8 | 28.8 | 9.6 | 18.6 | 16.2 | 4.8 | 14 | 16 | 21.3 | 19.8 | D-ME8-N2 |
8 | 1/4 | 28.8 | 14.3 | 18.6 | 16.2 | 6.3 | 14 | 16 | 21.3 | 24.4 | D-ME8-N4 |
8 | 3/8 | 30.6 | 14.3 | 18.6 | 16.2 | 6.3 | 17 | 16 | 23.1 | 26.2 | D-ME8-N6 |
8 | 1/2 | 32.6 | 19.1 | 18.6 | 16.2 | 6.3 | 22 | 16 | 25.1 | 33 | D-ME8-N8 |
10 | 1/4 | 31.5 | 14.3 | 19.5 | 17.2 | 7.1 | 17 | 19 | 23.9 | 26.2 | D-ME10-N4 |
10 | 3/8 | 31.5 | 14.3 | 19.5 | 17.2 | 7.9 | 17 | 19 | 23.9 | 26.2 | D-ME10-N6 |
10 | 1/2 | 33.5 | 19.1 | 19.5 | 17.2 | 7.9 | 22 | 19 | 25.9 | 33 | D-ME10-N8 |
12 | 1/4 | 36 | 14.3 | 22 | 22.8 | 7.1 | 22 | 22 | 25.9 | 26.2 | D-ME12-N4 |
12 | 3/8 | 36 | 14.3 | 22 | 22.8 | 9.5 | 22 | 22 | 25.9 | 28.2 | D-ME12-N6 |
12 | 1/2 | 36 | 19.1 | 22 | 22.8 | 9.5 | 22 | 22 | 25.9 | 33 | D-ME12-N8 |
15 | 1/2 | 38 | 19.1 | 22 | 24.4 | 11.9 | 24 | 25 | 27.9 | 35.1 | D-ME15-N8 |
16 | 1/2 | 38 | 19.1 | 22 | 24.4 | 11.9 | 24 | 25 | 27.9 | 35.1 | D-ME16-N8 |
16 | 3/4 | 39.8 | 19.1 | 22 | 24.4 | 11.9 | 24 | 25 | 29.7 | 36.8 | D-ME16-N12 |
22 | 3/4 | 44.6 | 19.1 | 22 | 26 | 15.9 | 35 | 32 | 34.5 | 41.7 | D-ME22-N12 |
22 | 1 | 44.6 | 23.9 | 22 | 26 | 18.3 | 35 | 32 | 34.5 | 46.5 | D-ME22-N16 |
25 | 3/4 | 49.1 | 19.1 | 26.5 | 31.3 | 19.9 | 35 | 38 | 36.8 | 41.7 | D-ME25-N12 |
25 | 1 | 49.1 | 23.9 | 26.5 | 31.3 | 21.8 | 35 | 38 | 36.8 | 46.5 | D-ME25-N16 |
Male Elbow (Stud End Taper Thread) Inch Od Tubes X Npt Thread-N |
|||||||||||
TUBE OD |
NPT MALE |
A | B | C | D | E | F | G | Hx | Hy | PART No. |
mm | P | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
1/8 | 1/8 | 23.6 | 9.6 | 15.3 | 12.7 | 2.4 | 11 | 11 | 17 | 17.8 | 2D-MEN |
1/8 | 1/4 | 24.6 | 14.3 | 15.3 | 12.7 | 2.4 | 14 | 11 | 18 | 23.4 | 2-4D-MEN |
1/4 | 1/8 | 26.9 | 10.4 | 17.8 | 15.3 | 4.8 | 14 | 14 | 19.6 | 19 | 4-2D-MEN |
1/4 | 1/4 | 29.7 | 15 | 17.8 | 15.3 | 4.8 | 19 | 14 | 22.4 | 22.4 | 4D-MEN |
1/4 | 3/8 | 31.8 | 15 | 17.8 | 15.3 | 4.8 | 22 | 14 | 24.4 | 22.4 | 4-6D-MEN |
1/4 | 2/4 | 34.6 | 19.8 | 17.8 | 15.3 | 4.8 | 27 | 14 | 27.2 | 28.5 | 4-8D-MEN |
3/8 | 1/8 | 30.5 | 9.6 | 19.3 | 16.8 | 4.8 | 14 | 17 | 23.2 | 19.1 | 6-2D-MEN |
3/8 | 1/4 | 30.5 | 14.3 | 19.3 | 16.8 | 7.1 | 17 | 17 | 23.2 | 19.1 | 6-4D-MEN |
3/8 | 3/8 | 31.2 | 15 | 19.3 | 16.8 | 7.1 | 17 | 17 | 23.9 | 22.4 | 6D-MEN |
3/8 | 1/2 | 33.3 | 15 | 19.3 | 16.8 | 7.1 | 22 | 17 | 25.9 | 22.4 | 6-8D-MEN |
1/2 | 1/4 | 36 | 14.3 | 21.8 | 22.9 | 4.8 | 22 | 22 | 25.9 | 28.2 | 8-4D-MEN |
1/2 | 3/8 | 36 | 14.3 | 21.8 | 22.9 | 9.6 | 22 | 22 | 25.9 | 28.2 | 8-6D-MEN |
1/2 | 1/2 | 36 | 19.1 | 21.8 | 22.9 | 10.4 | 22 | 22 | 25.9 | 33 | 8D-MEN |
1/2 | 3/4 | 39.9 | 19.1 | 21.8 | 22.9 | 10.4 | 27 | 22 | 29.7 | 36.8 | 8-12D-MEN |
3/4 | 1/2 | 39.9 | 19.1 | 21.8 | 24.4 | 11.9 | 27 | 29 | 29.7 | 36.8 | 12-8D-MEN |
3/4 | 3/4 | 39.9 | 19.1 | 21.8 | 24.4 | 15.8 | 27 | 29 | 29.7 | 36.8 | 12D-MEN |
1 | 3/4 | 49 | 19.1 | 26.4 | 31.2 | 15.8 | 35 | 38 | 36.8 | 41.6 | 16-12D-MEN |
1 | 1 | 49 | 23.8 | 26.4 | 31.2 | 22.3 | 35 | 38 | 36.8 | 46.5 | 16D-MEN |
