Double Ferrule Male Connectors

Stainless Steel 304/304L,316/316L,904L Double Ferrule Male Connector Manufacturer

Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Double Ferrule Male Connector Fittings Manufacturer & Exporter

Duplex Steel 2205, Brass Alloy Double Ferrule Male Connectors Fittings Supplier & Trader

METAL MINISTRY INC. is one of the leading Double Ferrule Male Connectors Manufacturer, Exporter & Supplier.We are the main maker and exporter of Double Ferrule Male Connectors Fittings. We fabricate a broad scope of top notch Male Connectors. These connectors are built with high thickness materials, for example, metal, stainless steel, plastics and copper. Our wide scope of Double Ferrule Male Connectors can be fitted with containers of each distance across and are accessible in strings of metric and inch particulars. Double Ferrule Male Connectors are additionally accessible in assortment of materials for an application that requires solid tube associations with weight tight fixing.

Double Ferrule Compression Tube Fittings give airtight torque free seals at all tubing associations. They take out perilous holes in instrumentation, prepare, pneumatic, pressure driven, gas and other pertinent tubing framework which could somehow or another end up being exorbitant to the establishment.
Double Ferrule Male Connector Exporter

Stainless Steel 304/304L Double Ferrule Male Connector, Stainless Steel 316/316L Double Ferrule Male Connector, Stainless Steel 904L Double Ferrule Male Connector, Inconel 600 Double Ferrule Male Connector, Inconel 625 Double Ferrule Male Connector, Incoloy 800/800H Double Ferrule Male Connector, Monel 400 Double Ferrule Male Connector, Monel K500 Double Ferrule Male Connector, Nickel 200 Double Ferrule Male Connector, Nickel 201 Double Ferrule Male Connector, Hastelloy C22 Double Ferrule Male Connector, Hastelloy C276 Double Ferrule Male Connector, Duplex Steel 2205 Double Ferrule Male Connectors, Brass Alloy Double Ferrule Male Connector

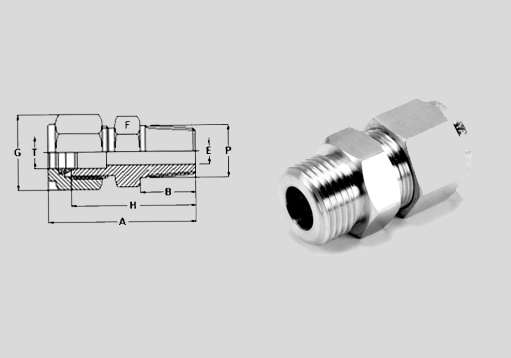

Specification for Double Ferrule Male Connector

Male Connector (Stud End Parallel Thread) Inch Od Tubes X BSP Thread -G
TUBE OD BSP MALE A D E F PART No.
inch mm mm mm mm mm
1/8 1/8 30 12.7 2.4 14 2D-MCG
1/8 1/4 35.3 12.7 2.4 19 2-4D-MCG
1/4 1/8 32.3 15.3 4.8 14 4-2D-MCG
1/4 1/4 37.6 15.3 4.8 19 4D-MC\G
1/4 3/8 38.9 15.3 4.8 22 4-6D-MCG
1/4 1/2 44.7 15.3 4.8 27 4-8D-MCG
3/8 1/4 39.2 16.8 5.8 19 6-4D-MCG
3/8 3/8 40.2 16.8 7.1 22 6D-MCG
3/8 1/2 46.3 16.8 7.1 27 6-8D-MCG
1/2 1/4 42.7 22.9 5.8 22 8-4D-MCG
1/2 3/8 43.2 22.9 7.9 22 8-6D-MCG
1/2 1/2 49 22.9 10.4 27 8D-MCG
1/2 3/4 52.8 22.9 10.4 35 8-12D-MCG
3/4 1/2 49 24.4 11.9 27 12-8D-MCG
3/4 3/4 52.8 24.4 15.8 35 12D-MCG
3/4 1 55.4 24.4 15.8 41 12-16D-MCG
1 1/2 55.9 31.2 11.89 35 16-8D-MCG
1 3/4 57.5 31.2 15.8 35 16-12D-MCG
1 1 60 31.2 19.8 41 16D-MCG

Male Connector (Stud End Taper Thread) Metric Od Tubes X Npt Thread -N
TUBE OD NPT MALE A D E F PART No.
mm mm mm mm mm mm
3 1/8 30.5 12.9 2.4 11 D-MC3-N2
3 1/4 35.6 12.9 2.4 14 D-MC3-N4
6 1/8 32.8 15.3 4.8 14 D-MC6-N2
6 1/4 37.9 16.3 4.8 14 D-MC6-N4
6 3/8 38.4 15.3 4.8 19 D-MC6-N6
6 1/2 44.7 15.3 4.8 20 D-MC6-N8
8 1/8 34.2 16.2 4.8 14 D-MC8-N2
8 1/4 38.7 16.2 6.3 14 D-MC8-N4
8 3/8 39.3 16.2 6.3 19 D-MC8-N6
8 1/2 45.6 16.2 6.3 22 D-MC8-N8
10 1/8 36.3 17.2 4.8 17 D-MC10-N2
10 1/4 40.9 17.2 7.9 19 D-MC10-N4
10 3/8 40.9 17.2 7.9 19 D-MC10-N6
10 1/2 46.5 17.2 7.9 22 D-MC10-N8
12 1/4 43.4 22.8 7.1 22 D-MC12-N4
12 3/8 43.4 22.8 9.5 22 D-MC12-N6
12 1/2 49 22.8 9.5 22 D-MC12-N8
12 3/4 50.5 22.8 9.5 27 D-MC12-N12
12 1 57.1 22.8 9.5 35 D-MC12-N16
14 3/8 44.1 24.4 9.5 24 D-MC14-N6
14 1/2 49 24.4 11.1 24 D-MC14-N8
16 3/8 44.1 24.4 9.5 24 D-MC16-N6
16 1/2 49 24.4 11.9 24 D-MC16-N8
16 3/4 50.5 24.4 12.7 27 D-MC16-N12
18 1/2 50.5 24.4 11.9 27 D-MC18-N8
18 3/4 50.5 24.4 15.1 27 D-MC18-N12
20 1/2 52.3 26 15.9 30 D-MC20-N8
20 3/4 57.1 26 18.3 35 D-MC20-N12
25 1/2 57.5 31.3 11.9 35 D-MC25-N8
25 3/4 57.5 31.3 15.8 35 D-MC25-N12
25 1 62.3 31.3 21.8 35 D-MC25-N16

Male Connector (Stud End Taper Thread) Inch Od Tubes X Npt Thread -N
TUBE OD NPT MALE A D E F PART No.
inch mm mm mm mm mm
1/8 1/8 30.5 12.7 2.4 11 2D-MCN
1/8 1/4 35.6 12.7 2.4 14 2-4D-MCN
1/4 1/8 32.8 15.3 4.8 14 4-2D-MCN
1/4 1/4 37.8 15.3 4.8 14 4D-MCN
1/4 3/8 38.4 15.3 4.8 19 4-6D-MCN
1/4 1/2 44.7 15.3 4.8 22 4-8D-MCN
5/16 1/4 38.6 16.3 6.3 14 5-4D-MCN
3/8 1/8 35.3 16.8 4.8 16 6-2D-MCN
3/8 1/4 39.8 16.8 7.1 16 6-4D-MCN
3/8 3/8 39.8 16.8 7.1 19 6D-MCN
3/8 1/2 46.8 16.8 7.1 22 6-8D-MCN
1/2 1/4 43.4 22.9 7.1 22 8-4D-MCN
1/2 3/8 43.4 22.9 9.6 22 8-6D-MCN
1/2 1/2 49 22.9 10.4 22 8D-MCN
1/2 3/4 50.5 22.9 10.4 27 8-12D-MCN
1/2 1 57.1 22.9 10.4 35 8-16D-MCN
5/8 3/8 44.2 24.4 9.6 24 10-6D-MCN
5/8 1/2 49 24.4 10.4 24 10-8D-MCN
3/4 1/2 50.5 24.4 10.4 27 12-8D-MCN
3/4 3/4 50.5 24.4 15.8 27 12D-MCN
3/4 1 57.1 24.4 15.8 35 12-16D-MCN
7/8 3/4 50.5 26 15.8 30 14-12D-MCN
1 1/2 57.4 31.2 10.4 35 16-8D-MCN
1 3/4 57.4 31.2 15.8 35 16-12D-MCN
1 1 62.2 31.2 22.3 35 16D-MCN

Male Connector (Stud End Taper Thread) Metric Od Tubes X BSPT Thread -R
TUBE OD BSPT MALE A D E F PART No.
mm mm mm mm mm mm
3 1/8 30.5 12.9 2.4 11 D-MC3-R2
3 1/4 35.6 12.9 2.4 14 D-MC3-R4
6 1/8 32.8 15.3 4.8 14 D-MC6-R2
6 1/4 37.9 16.3 4.8 14 D-MC6-R4
6 3/8 38.4 15.3 4.8 19 D-MC6-R6
6 1/2 44.7 15.3 4.8 20 D-MC6-R8
8 1/8 34.2 16.2 4.8 14 D-MC8-R2
8 1/4 38.7 16.2 6.3 14 D-MC8-R4
8 3/8 39.3 16.2 6.3 19 D-MC8-R6
8 1/2 45.6 16.2 6.3 22 D-MC8-R8
10 1/8 36.3 17.2 4.8 17 D-MC10-R2
10 1/4 40.9 17.2 7.9 19 D-MC10-R4
10 3/8 40.9 17.2 7.9 19 D-MC10-R6
10 1/2 46.5 17.2 7.9 22 D-MC10-R8
12 1/4 43.4 22.8 7.1 22 D-MC12-R4
12 3/8 43.4 22.8 9.5 22 D-MC12-R6
12 1/2 49 22.8 9.5 22 D-MC12-R8
12 3/4 50.5 22.8 9.5 27 D-MC12-R12
12 1 57.1 22.8 9.5 35 D-MC12-R16
14 3/8 44.1 24.4 9.5 24 D-MC14-R6
14 1/2 49 24.4 11.1 24 D-MC14-R8
16 3/8 44.1 24.4 9.5 24 D-MC16-R6
16 1/2 49 24.4 11.9 24 D-MC16-R8
16 3/4 50.5 24.4 12.7 27 D-MC16-N12
18 1/2 50.5 24.4 11.9 27 D-MC18-N8
18 3/4 50.5 24.4 15.1 27 D-MC18-R12
20 1/2 52.3 26 15.9 30 D-MC20-R8
20 3/4 57.1 26 18.3 35 D-MC20-R12
25 1/2 57.5 31.3 11.9 35 D-MC25-R8
25 3/4 57.5 31.3 15.8 35 D-MC25-R12
25 1 62.3 31.3 21.8 35 D-MC25-R16

Male Connector (Stud End Taper Thread) Inch Od Tubes X BSPT Thread -R
TUBE OD BSPTMALE A D E F PART No.
inch mm mm mm mm mm
1/8 1/8 30.5 12.7 2.4 11 2D-MCR
1/8 1/4 35.6 12.7 2.4 14 2-4D-MCR
1/4 1/8 32.8 15.3 4.8 14 4-2D-MCR
1/4 1/4 37.8 15.3 4.8 14 4D-MCR
1/4 3/8 38.4 15.3 4.8 19 4-6D-MCR
1/4 1/2 44.7 15.3 4.8 22 4-8D-MCR
5/16 1/4 38.6 16.3 6.3 14 5-4D-MCR
3/8 1/8 35.3 16.8 4.8 16 6-2D-MCR
3/8 1/4 39.8 16.8 7.1 16 6-4D-MCR
3/8 3/8 39.8 16.8 7.1 19 6D-MCR
3/8 1/2 46.8 16.8 7.1 22 6-8D-MCR
1/2 1/4 43.4 22.9 7.1 22 8-4D-MCR
1/2 3/8 43.4 22.9 9.6 22 8-6D-MCR
1/2 1/2 49 22.9 10.4 22 8D-MCR
1/2 3/4 50.5 22.9 10.4 27 8-12D-MCR
1/2 1 57.1 22.9 10.4 35 8-16D-MCR
5/8 3/8 44.2 24.4 9.6 24 10-6D-MCR
5/8 1/2 49 24.4 10.4 24 10-8D-MCR
3/4 1/2 50.5 24.4 10.4 27 12-8D-MCR
3/4 3/4 50.5 24.4 15.8 27 12D-MCR
3/4 1 57.1 24.4 15.8 35 12-16D-MCR
7/8 3/4 50.5 26 15.8 30 14-12D-MCR
1 1/2 57.4 31.2 10.4 35 16-8D-MCR
1 3/4 57.4 31.2 15.8 35 16-12D-MCR
1 1 62.2 31.2 22.3 35 16D-MCR

Exports for Double Ferrule Male Connectors

Metal Ministry inc. exports Double Ferrule Male Connectors in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Double Ferrule Male Connectors in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Double Ferrule Male Connectors feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
