Double Ferrule Male Branch Tee-N

Stainless Steel 304/304L,316/316L,904L Double Ferrule Male Branch Tee-N Manufacturer

Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Double Ferrule Male Branch Tee-N Manufacturer & Exporter

Duplex Steel 2205, Brass Alloy Double Ferrule Male Branch Tee-N Supplier & Trader

METAL MINISTRY INC. is one of the leading Double Ferrule Male Branch Tee-N Manufacturer, Exporter & Supplier. We offer extensive variety of Male Branch Tee-N for various pipe distances across and in various strings assortment. Our items can withstand higher weight than the tubes. These high qualities Male Branch Tee-N are solid, tried and durable to suit all applications. These exactness planned and manufactured Male Branch Tee-N are offered in both standard and tweaked determinations to suit distinctive applications. These connectors are broadly utilized for joining channels and tubes crosswise over industry.

These precision designed and fabricated Male Branch Tee are offered in both standard and customised specifications to suit different applications. This branch tee is also quality tested with the aid of our quality controllers to ensure error free quality dispatch for our variegated clients.
Double Ferrule Male Branch Tee-N Exporter

Stainless Steel 304/304L Double Ferrule Male Branch Tee-N , Stainless Steel 316/316L Double Ferrule Male Branch Tee-N, Stainless Steel 904L Double Ferrule Male Branch Tee-N, Inconel 600 Double Ferrule Male Branch Tee-N, Inconel 625 Double Ferrule Male Branch Tee-N, Incoloy 800/800H Double Ferrule Male Branch Tee-N, Monel 400 Double Ferrule Male Branch Tee-N, Monel K500 Double Ferrule Male Branch Tee-N, Nickel 200 Double Ferrule Male Branch Tee-N, Nickel 201 Double Ferrule Male Branch Tee-N, Hastelloy C22 Double Ferrule Male Branch Tee-N, Hastelloy C276 Double Ferrule Male Branch Tee-N, Duplex Steel 2205 Double Ferrule Male Branch Tee-N, Brass Alloy Double Ferrule Male Branch Tee-N

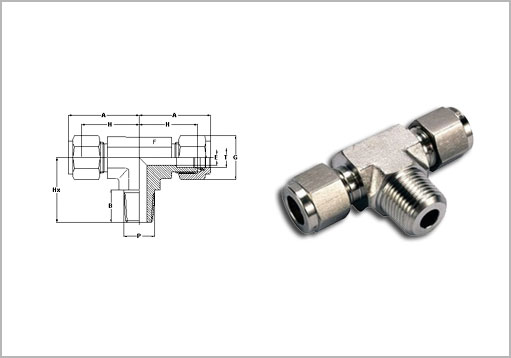

Specification for Double Ferrule Male Branch Tee-N

Male Branch Tee (Stud End Taper Thread) Metric Od Tubes X Npt Thread N
TUBE
OD		 NPT
Female		 A Ax B C D E F G H Hx Hy PART NO.
mm P mm mm mm mm mm mm mm mm mm mm mm
3 1/8 47.2 23.6 9.6 15.3 12.9 2.4 11 11 34 17 17.8 D-MBT3-N2
3 1/4 49.2 24.6 14.3 15.3 12.9 2.4 14 11 36 18 23.4 D-MBT3-N4
6 1/8 54 27 9.6 17.7 15.3 4.8 14 14 39.2 19.6 18.8 D-MBT6-N2
6 1/4 54 27 14.3 17.7 15.3 4.8 14 14 39.2 19.6 23.4 D-MBT6-N4
6 3/8 59.6 29.8 14.3 17.7 15.3 4.8 17 14 44.8 22.4 26.2 D-MBT6-N6
8 1/4 57.6 28.8 14.3 18.6 16.2 6.3 14 16 42.6 21.3 24.4 D-MBT8-N4
8 3/8 61.2 30.6 14.3 18.6 16.2 6.3 17 16 46.2 23.1 26.2 D-MBT8-N6
8 1/2 65.2 32.6 19.1 18.6 16.2 6.3 22 16 50.2 25.1 33 D-MBT8-N8
10 1/4 63 31.5 14.3 19.5 17.2 7.1 17 19 47.8 23.9 26.2 D-MBT10-N4
10 3/8 63 31.5 14.3 19.5 17.2 7.9 17 19 47.8 23.9 26.2 D-MBT10-N6
10 1/2 67 33.5 19.1 19.5 17.2 7.9 22 19 51.8 25.9 33 D-MBT10-N8
12 1/4 72 36 14.3 22 22.8 7.1 22 22 51.8 25.9 26.2 D-MBT12-N4
12 3/8 72 36 14.3 22 22.8 9.5 22 22 51.8 25.9 28.2 D-MBT12-N6
12 1/2 72 36 19.1 22 22.8 9.5 22 22 51.8 25.9 33 D-MBT12-N8
16 1/2 76 38 19.1 22 24 11.3 24 25 55.8 27.9 35.1 D-MBT16-N8
25 3/4 98.2 49.1 19.1 26.5 31.3 15.8 35 38 73.6 36.8 41.7 D-MBT25-N12
25 1 98.2 49.1 23.8 26.5 31.3 21.8 35 38 73.6 36.8 46.5 D-MBT25-N16


Male Branch Tee (Stud End Taper Thread) Inch Od Tubes X Npt Thread N
TUBE
OD		 NPT
Male		 A Ax B C D E F G H Hx Hy PART
NO.
inch P mm mm mm mm mm mm mm mm mm mm mm mm
1/8 1/8 47.2 23.6 9.6 15.3 12.7 2.4 11 11 34 17 17.8 2D-MBTN
1/8 1/4 49.2 24.6 14.3 15.3 12.7 2.4 14 11 36 18 23.4 2-4D-MBTN
1/4 1/8 53.8 26.9 9.6 17.8 15.3 4.8 14 14 39.2 19.6 18.8 4-2D-MBTN
1/4 1/4 53.8 26.9 14.3 17.8 15.3 4.8 14 14 39.2 19.6 23.4 4D-MBTN
1/4 3/8 59.4 29.7 14.3 17.8 15.3 4.8 17 14 44.8 22.4 26.2 4-6D-MBTN
1/4 2/4 63.6 31.8 19.1 17.8 15.3 4.8 22 14 48.8 24.4 33 4-8D-MBTN
3/8 1/4 61 30.5 14.3 19.3 16.8 7.1 17 17 46.2 23.1 25.4 6-4D-MBTN
3/8 3/8 62.4 31.2 14.3 19.3 16.8 7.1 17 17 47.8 23.9 26.2 6D-MBTN
3/8 1/2 66.6 33 19.1 19.3 16.8 7.1 22 17 51.8 25.9 33 6-8D-MBTN
1/2 1/4 72 36 14.3 21.8 22.9 4.8 22 22 51.8 25.9 28.2 8-4D-MBTN
1/2 3/8 72 36 14.3 21.8 22.9 9.6 22 22 51.8 25.9 28.2 8-6D-MBTN
1/2 1/2 72 36 19.1 21.8 22.9 10.4 22 22 51.8 25.9 33 8D-MBTN
5/8 1/2 76.2 38.1 19.1 21.8 24.4 11.9 22 25 55.8 27.9 35 10-8D-MBTN
3/4 1/2 79.8 39.9 19.1 21.8 24.4 11.9 27 29 59.4 29.7 36.8 12-8D-MBTN
3/4 3/4 79.8 39.9 19.1 21.8 24.4 15.8 27 29 59.4 29.7 36.8 12D-MBTN
1 3/4 98 49 19.1 26.4 31.2 15.8 35 38 73.6 36.8 41.6 16-12D-MBTN
1 1 98 49 23.8 26.4 31.2 22.3 35 38 73.6 36.8 46.5 16D-MBTN


Exports for Double Ferrule Male Branch Tee-N

Metal Ministry inc. exports Double Ferrule Male Branch Tee-N in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Double Ferrule Male Branch Tee-N in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Double Ferrule Male Branch Tee-N feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
