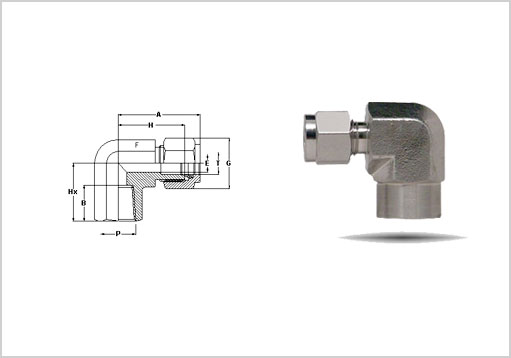

Female Stud Elbow (Stud End Taper) Metric Od Tubes X Npt Thread N |
|||||||||||
TUBE OD |
NPT MALE |
A | B | C | D | E | F | G | Hx | Hy | PART No. |
mm | P | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
3 | 1/8 | 24.6 | 10.4 | 15.3 | 12.9 | 2.4 | 14 | 11 | 18 | 19 | DFE3-N2 |
3 | 1/4 | 27.4 | 15 | 15.3 | 12.9 | 2.4 | 19 | 11 | 20.8 | 22.4 | DFE3-N4 |
6 | 1/8 | 27 | 10.4 | 17.7 | 15.3 | 4.8 | 14 | 14 | 19.6 | 19 | D-FE6-N2 |
6 | 1/4 | 29.8 | 15 | 17.7 | 15.3 | 4.8 | 19 | 14 | 22.4 | 22.4 | D-FE6-N4 |
6 | 1/2 | 34.6 | 19.8 | 17.7 | 15.3 | 4.8 | 27 | 14 | 27.2 | 28.5 | D-FE6-N8 |
8 | 1/4 | 30.6 | 15 | 18.6 | 16.2 | 6.3 | 19 | 16 | 23.1 | 22.4 | D-FE8-N4 |
8 | 3/8 | 32.6 | 15 | 18.6 | 16.2 | 6.3 | 22 | 16 | 25.1 | 22.4 | D-FE8-N6 |
10 | 1/4 | 33.5 | 15 | 19.5 | 17.2 | 7.9 | 19 | 19 | 25.9 | 22.4 | D-FE10-N4 |
10 | 3/8 | 33.5 | 15 | 19.5 | 17.2 | 7.9 | 22 | 19 | 25.9 | 22.4 | D-FE10-N6 |
12 | 1/4 | 36 | 15 | 22 | 22.8 | 9.5 | 22 | 22 | 25.9 | 22.4 | D-FE12-N4 |
12 | 3/8 | 36 | 15 | 22 | 22.8 | 9.5 | 22 | 22 | 25.9 | 22.4 | D-FE12-N6 |
12 | 1/2 | 38.8 | 19.8 | 22 | 22.8 | 9.5 | 27 | 22 | 28.7 | 28.5 | D-FE12-N8 |
16 | 1/2 | 39.5 | 19.8 | 22 | 24.4 | 12.7 | 27 | 25 | 29.7 | 28.5 | D-FE16-N8 |
25 | 3/4 | 49 | 20.6 | 26.5 | 31.3 | 22.3 | 35 | 38 | 36.8 | 31.8 | D-FE25-N12 |
25 | 1 | 53.6 | 25.4 | 26.5 | 31.3 | 22.3 | 41 | 38 | 41.4 | 38.1 | D-FE25-N16 |
Female Stud Elbow (Stud End Taper) Inch Od Tubes X Npt Thread-N |
|||||||||||
TUBE OD |
NPT MALE |
A | B | C | D | E | F | G | Hx | Hy | PART No. |
inch | P | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
1/8 | 1/8 | 24.6 | 10.4 | 15.3 | 12.7 | 2.4 | 14 | 11 | 18 | 19 | 2D-FEN |
1/8 | 1/4 | 27.4 | 15 | 15.3 | 12.7 | 2.4 | 19 | 11 | 20.8 | 22.4 | 2-4D-FEN |
1/4 | 1/8 | 26.9 | 10.4 | 17.8 | 15.3 | 4.8 | 14 | 14 | 19.6 | 19 | 4-2D-FEN |
1/4 | 1/4 | 29.7 | 15 | 17.8 | 15.3 | 4.8 | 19 | 14 | 22.4 | 22.4 | 4D-FEN |
1/4 | 3/8 | 31.8 | 15 | 17.8 | 15.3 | 4.8 | 22 | 14 | 24.4 | 22.4 | 4-6D-FEN |
1/4 | 2/4 | 34.6 | 19.8 | 17.8 | 15.3 | 4.8 | 27 | 14 | 27.2 | 28.5 | 4-8D-FEN |
3/8 | 1/8 | 30.5 | 10.4 | 19.3 | 16.8 | 7.1 | 17 | 17 | 23.2 | 19.1 | 6-2D-FEN |
3/8 | 1/4 | 31.2 | 15 | 19.3 | 16.8 | 7.1 | 19 | 17 | 23.9 | 22.4 | 6-4D-FEN |
3/8 | 3/8 | 33.3 | 15 | 19.3 | 16.8 | 7.1 | 22 | 17 | 25.9 | 22.4 | 6D-FEN |
3/8 | 1/2 | 36 | 19.8 | 19.3 | 16.8 | 7.1 | 27 | 17 | 28.7 | 28.5 | 6-8D-FEN |
1/2 | 1/4 | 36 | 15 | 21.8 | 22.9 | 7.1 | 22 | 22 | 25.9 | 22.4 | 8-4D-FEN |
1/2 | 3/8 | 36 | 15 | 21.8 | 22.9 | 10.4 | 22 | 22 | 25.9 | 22.4 | 8-6D-FEN |
1/2 | 1/2 | 38.9 | 19.8 | 31.8 | 22.9 | 10.4 | 17 | 22 | 28.7 | 28.5 | 8D-FEN |
3/4 | 1/2 | 39.9 | 19.8 | 21.8 | 24.4 | 15.8 | 27 | 28.5 | 29.7 | 28.5 | 12-8D-FEN |
3/4 | 3/4 | 44.7 | 20.6 | 21.8 | 24.4 | 15.8 | 35 | 28.5 | 34.6 | 31.8 | 12D-FEN |
1 | 3/4 | 49 | 20.6 | 26.4 | 31.2 | 22.3 | 35 | 38 | 36.8 | 31.8 | 16-12D-FEN |
1 | 1 | 53.6 | 25.4 | 26.4 | 31.2 | 22.3 | 41 | 38 | 41.4 | 38.1 | 16D-FEN |
