Double Ferrule Female Connectors

Stainless Steel 304/304L,316/316L,904L Double Ferrule Female Connector Manufacturer

Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 Double Ferrule Female Connector Fittings Manufacturer & Exporter

Duplex Steel 2205, Brass Alloy Double Ferrule Female Connectors Fittings Supplier & Trader

METAL MINISTRY INC. is one of the leading Double Ferrule Female Connectors Manufacturer, Exporter & Supplier. We are the main maker and exporter of Double Ferrule Female Connectors Fittings. Our scope of Female Connectors suited to a wide range of tubing's and fittings. These Female Connectors are made by utilizing the fantastic materials that incorporate stainless steels of 316 and 304 evaluations separated from metal and others fine crude material. Exceptionally strong and dependable with best execution these connectors are made to global and mechanical principles. These great Female Connectors are tried and reasonable for any application requiring dependable tube associations with weight tight fixing.
Double Ferrule Female Connector Exporter

Stainless Steel 304/304L Double Ferrule Female Connector, Stainless Steel 316/316L Double Ferrule Female Connector, Stainless Steel 904L Double Ferrule Female Connector, Inconel 600 Double Ferrule Female Connector, Inconel 625 Double Ferrule Female Connector, Incoloy 800/800H Double Ferrule Female Connector, Monel 400 Double Ferrule Female Connector, Monel K500 Double Ferrule Female Connector, Nickel 200 Double Ferrule Female Connector, Nickel 201 Double Ferrule Female Connector, Hastelloy C22 Double Ferrule Female Connector, Hastelloy C276 Double Ferrule Female Connector, Duplex Steel 2205 Double Ferrule Female Connectors, Brass Alloy Double Ferrule Female Connector

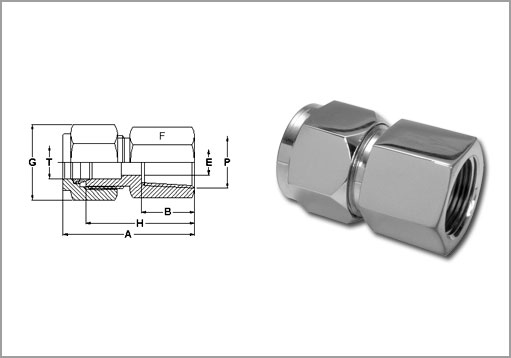

Specification for Double Ferrule Female Connector

Female Connector (Stud End Taper Thread) Metric Od Tubes X Npt Thread-N
TUBE OD NPT FEMALE L B E F G PART No.
mm mm mm mm mm mm mm
6 1/8 10.4 2.4 14 11 22.1 D-FC6-N2
6 1/4 15 2.4 19 11 26.9 D-FC6-N4
8 1/8 9.9 4.8 14 14 23.9 D-FC8-N2
8 1/4 15 4.8 19 14 28.5 D-FC8-N4
8 3/8 15 4.8 22 14 30.2 D-FC8-N6
8 1/2 19.8 4.8 27 14 35 D-FC8-N8
10 1/8 32.8 7.1 16 17 25.4 D-FC10-N2
10 1/4 37.6 7.1 19 17 30.2 D-FC10-N4
10 3/8 39.1 7.1 22 17 31.8 D-FC10-N6
10 1/2 43.9 7.1 27 17 36.6 D-FC10-N8
12 1/4 15 10.4 22 22 30.2 D-FC12-N4
12 3/8 15 10.4 22 22 30.2 D-FC12-N6
12 1/2 19.8 10.4 27 22 36.6 D-FC12-N8
12 3/4 20.6 10.4 32 22 38.1 D-FC12-N12
25 3/4 20.6 22.3 35 38 41.2 D-FC25-N12
25 1 25.4 22.3 41 38 50 D-FC25-N16


Female Connector (Stud End Taper Thread) Inch Od Tubes X Npt Thread-N
TUBE OD NPT FEMALE L B E F G PART No.
inch mm mm mm mm mm mm
1/8 1/8 22.1 10.4 2.4 14 11 2D-FCN
1/8 1/4 26.9 15 2.4 19 11 2-4D-FCN
1/4 1/8 23.9 9.9 4.8 14 14 4-2D-FCN
1/4 1/4 28.5 15 4.8 19 14 4D-FCN
1/4 3/8 30.2 15 4.8 22 14 4-6D-FCN
1/4 1/2 35 19.8 4.8 27 14 4-8D-FCN
3/8 1/4 30.2 15 7.1 19 17 6-4D-FCN
3/8 3/8 31.8 15 7.1 22 17 6D-FCN
3/8 1/2 36.6 19.8 7.1 27 17 6-8D-FCN
1/2 1/4 40.4 15 10.4 22 22 8-4D-FCN
1/2 3/8 30.2 15 10.4 22 22 8-6D-FCN
1/2 1/2 31.8 19.8 10.4 27 22 8D-FCN
5/8 3/8 41.9 15 12.7 24 25 10-6D-FCN
5/8 1/2 46.7 19.8 12.7 27 25 10-8D-FCN
3/4 1/2 46.7 19.8 15.8 27 28.5 12-8D-FCN
3/4 3/4 48.3 20.6 15.8 35 28.5 12D-FCN
7/8 3/4 49.8 20.6 18.3 35 32 14-12D-FCN
1 3/4 53.4 20.6 22.3 35 38 16-12D-FCN
1 1 62.3 25.4 22.3 41 38 16D-FCN

Female Connector (Stud End Taper Thread) Metric Od Tubes X BSPT Thread -R
TUBE OD BSPT FEMALE L B E F G PART No.
mm mm mm mm mm mm mm
6 1/8 10.4 2.4 14 11 22.1 D-FC6-R2
6 1/4 15 2.4 19 11 26.9 D-FC6-R4
8 1/8 9.9 4.8 14 14 23.9 D-FC8-R2
8 1/4 15 4.8 19 14 28.5 D-FC8-R4
8 3/8 15 4.8 22 14 30.2 D-FC8-R6
8 1/2 19.8 4.8 27 14 35 D-FC8-R8
10 1/8 32.8 7.1 16 17 25.4 D-FC10-R2
10 1/4 37.6 7.1 19 17 30.2 D-FC10-R4
10 3/8 39.1 7.1 22 17 31.8 D-FC10-R6
10 1/2 43.9 7.1 27 17 36.6 D-FC10-R8
12 1/4 15 10.4 22 22 30.2 D-FC12-R4
12 3/8 15 10.4 22 22 30.2 D-FC12-R6
12 1/2 19.8 10.4 27 22 36.6 D-FC12-R8
12 3/4 20.6 10.4 32 22 38.1 D-FC12-R12
25 3/4 20.6 22.3 35 38 41.2 D-FC25-R12
25 1 25.4 22.3 41 38 50 D-FC25-R16


Female Connector (Stud End Taper Thread) Inch Od Tubes X BSPT Thread -R
TUBE OD NPT FEMALE L B E F G PART No.
inch mm mm mm mm mm mm
1/8 1/8 22.1 10.4 2.4 14 11 2D-FCR
1/8 1/4 26.9 15 2.4 19 11 2-4D-FCR
1/4 1/8 23.9 9.9 4.8 14 14 4-2D-FCR
1/4 1/4 28.5 15 4.8 19 14 4D-FCR
1/4 3/8 30.2 15 4.8 22 14 4-6D-FCR
1/4 1/2 35 19.8 4.8 27 14 4-8D-FCR
3/8 1/4 30.2 15 7.1 19 17 6-4D-FCR
3/8 3/8 31.8 15 7.1 22 17 6D-FCR
3/8 1/2 36.6 19.8 7.1 27 17 6-8D-FCR
1/2 1/4 40.4 15 10.4 22 22 8-4D-FCR
1/2 3/8 30.2 15 10.4 22 22 8-6D-FCR
1/2 1/2 31.8 19.8 10.4 27 22 8D-FCR
5/8 3/8 41.9 15 12.7 24 25 10-6D-FCR
5/8 1/2 46.7 19.8 12.7 27 25 10-8D-FCR
3/4 1/2 46.7 19.8 15.8 27 28.5 12-8D-FCR
3/4 3/4 48.3 20.6 15.8 35 28.5 12D-FCR
7/8 3/4 49.8 20.6 18.3 35 32 14-12D-FCR
1 3/4 53.4 20.6 22.3 35 38 16-12D-FCR
1 1 62.3 25.4 22.3 41 38 16D-FCR

Exports for Double Ferrule Female Connectors

Metal Ministry inc. exports Double Ferrule Female Connectors in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports Double Ferrule Female Connectors in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to Double Ferrule Female Connectors feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
