Stainless Steel 304/304L,316/316L,904L 2 Valve Tee Manifold Valve Manufacturer
Inconel Alloy 600/625, Incoloy 800/800H, Monel Alloy 400/K500, Nickel Alloy 200/201, Hastelloy C22, C276 2 Valve Tee Manifold Valve Manufacturer & Exporter
Duplex Steel 2205 2 Valve Tee Manifold Valve, Super Duplex Steel 2507 2 Valve Tee Manifold Valve Supplier & Trader
Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves that we make and supply are material for stream exchange of steam, gas and oil handling. Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves are generally requested in petrochemical and substance plants where high temperature and weight preparing is finished. We send out these Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves in different parts of the world at focused costs.
Stainless Steel 304/304L 2 Valve Tee Manifold Valves, Stainless Steel 316/316L 2 Valve Tee Manifold Valves, Stainless Steel 904L 2 Valve Tee Manifold Valves, Nickel Alloy 200 2 Valve Tee Manifold Valve, Nickel Alloy 201 2 Valve Tee Manifold Valve, Inconel Alloy 600 2 Valve Tee Manifold Valve, Inconel Alloy 625 2 Valve Tee Manifold Valve, Incoloy 800/800H 2 Valve Tee Manifold Valve, Hastelloy C22 2 Valve Tee Manifold Valve, Hastelloy C276 2 Valve Tee Manifold Valve, Monel Alloy 400 2 Valve Tee Manifold Valve, Monel Alloy K500 2 Valve Tee Manifold Valve, Titanium Alloy Gr1 2 Valve Tee Manifold Valve, Titanium Alloy Gr2 2 Valve Tee Manifold Valve, Titanium Alloy Gr5 2 Valve Tee Manifold Valve, Titanium Alloy Gr7 2 Valve Tee Manifold Valve.
Types of Stainless Steel, Nickel Alloy 2 Valve Manifold Valves

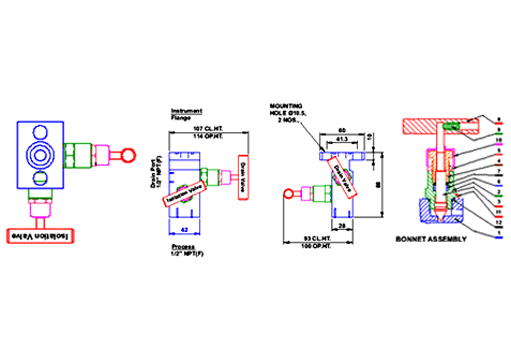

Specification for Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves
| Tee Type | |||||||||||
| NO | DESCRIPTION | QTY | MATERIAL | ||||||||
| 1 | BODY | 1 | SS 316 | ||||||||
| 2 | BONNET | 1 | SS 316 | ||||||||
| 3 | STEM | 1 | SS 316 | ||||||||
| 4 | BONNET PUSHER | 1 | SS316 | ||||||||
| 5 | LOCK NUT | 1 | SS 316 | ||||||||
| 6 | PACKING | 1 | PTFE | ||||||||
| 7 | WASHER | 1 | SS 316 | ||||||||
| 8 | HANDLE | 1 | SS 304 |
||||||||
| 9 | GRUB SCREW | 1 | SS | ||||||||
| 10 | DUST CAP | 1 | PLASTIC | ||||||||
| 11 | LOCKING PIN | 1 | SS 304 | ||||||||
| 12 | BONNET SEAL | 1 | PTFE | ||||||||
Features of Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves
2 VALVE MANIFOLDS (TEE TYPE)2 valve manifolds are intended for direct mounting. Interfacing from process side1/2" NPT (F) and Instrument side Flange association on reasonable for DP transmitter. Interfacing framework motivation lines and transmitters, having straightforward two valves setup which takes into consideration simple square or Isolate, Bleed or Vent valve adjustment of a static weight transmitter or gauge.
Drain/vent association with s.s. attachment will be given on demand.
Rough weight : xxx Kg (xxx Lbs.).
Warm code traceability
Screwed Bonnet Design.
Bonnet situated victory verification.
Spindle-Ground and string rolled.
Spindle tip-Non pivoting tip close off sort - stellited,Regulating-stellited and delicate situated.
Bonnet pusher - silver plated for hostile to annoying solidifying for expanded stem cycle life.
Tidy top shields stem strings from facades pollution.
Release tight seal with low working torque.
Specification for Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves
| Size : | 1/4", 1/2" |
| End connection : | NPT,BSPT,Socket weld. |
| Working Pressure : | 6000 Psi (413 Bar) |
| Temperature Rating : | PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F(371 Deg. C) |
| Material of construction : | SS 316, SS 304, Monel,C.S. |
| Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75 |
|
| Stem packing : | PTFE, Grafoil. |
| Orifice : | Dia. 4.0 |
| All valves are 100% Factory tested prior to shipment. | |
Exports for Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves
Metal Ministry inc. exports Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Stainless Steel, Nickel Alloy 2 Valve Tee Manifold Valves feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
