Stainless Steel 304/304L,316/316L,904L 2 Valve Manifold Valve Manufacturer
Inconel Alloy 600/625, Incoloy 800/800H, Monel Alloy 400/K500, Nickel Alloy 200/201, Hastelloy C22, C276 2 Valve Manifold Valve Manufacturer & Exporter
Duplex Steel 2205 2 Valve Manifold Valve, Super Duplex Steel 2507 2 Valve Manifold Valve Supplier & Trader
Advance, it offers the rearrangements of associations between instruments, for example, weight gages, weight switches, weight transmitters, markers and recorders. Notwithstanding this, our produced Stainless Steel, Nickel Alloy 2 Valve Manifold Valves offers the cut-off and focusing of instruments. These Stainless Steel, Nickel Alloy 2 Valve Manifold Valves are exceedingly valued by our customers for the elements like simple establishment, conservative and savvy. These are broadly utilized for applications like instrumentation, process and control frameworks. Additionally, these can be profited at sensible rates.
Stainless Steel 304/304L 2 Valve Manifold Valves, Stainless Steel 316/316L 2 Valve Manifold Valves, Stainless Steel 904L 2 Valve Manifold Valves, Nickel Alloy 200 2 Valve Manifold Valve, Nickel Alloy 201 2 Valve Manifold Valve, Inconel Alloy 600 2 Valve Manifold Valve, Inconel Alloy 625 2 Valve Manifold Valve, Incoloy 800/800H 2 Valve Manifold Valve, Hastelloy C22 2 Valve Manifold Valve, Hastelloy C276 2 Valve Manifold Valve, Monel Alloy 400 2 Valve Manifold Valve, Monel Alloy K500 2 Valve Manifold Valve, Titanium Alloy Gr1 2 Valve Manifold Valve, Titanium Alloy Gr2 2 Valve Manifold Valve, Titanium Alloy Gr5 2 Valve Manifold Valve, Titanium Alloy Gr7 2 Valve Manifold Valve.
Types of Stainless Steel, Nickel Alloy 2 Valve Manifold Valves
Specification for Stainless Steel, Nickel Alloy 2 Valve Manifold Valves

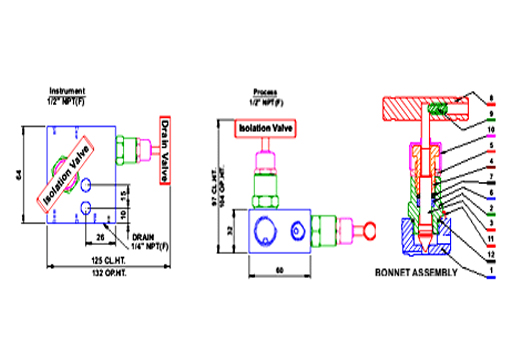

| Straight Type | |||||||||||
| NO | DESCRIPTION | QTY | MATERIAL | ||||||||
| 1 | BODY | 1 | SS 316 | ||||||||
| 2 | BONNET | 1 | SS 316 | ||||||||
| 3 | STEM | 1 | SS 316 | ||||||||
| 4 | BONNET PUSHER | 1 | SS316 | ||||||||
| 5 | LOCK NUT | 1 | SS 316 | ||||||||
| 6 | PACKING | 1 | PTFE | ||||||||
| 7 | WASHER | 1 | SS 316 | ||||||||
| 8 | HANDLE | 1 | SS 304 |
||||||||
| 9 | GRUB SCREW | 1 | SS | ||||||||
| 10 | DUST CAP | 1 | PLASTIC | ||||||||
| 11 | LOCKING PIN | 1 | SS 304 | ||||||||
| 12 | BONNET SEAL | 1 | PTFE | ||||||||
Features of Stainless Steel, Nickel Alloy 2 Valve Manifold Valves
2 VALVE MANIFOLDS (STRAIGHT TYPE)2 valve manifolds are intended for remote or separate mounting. Associating from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting framework drive lines and transmitters, having basic two valves arrangement which takes into consideration simple piece or Isolate, Bleed or Vent valve adjustment of a static weight transmitter or gauge.
Drain/vent association with s.s. attachment will be given on demand.
Estimated weight : 0.95 Kg (2.1 Lbs.).
Warm code traceability
Screwed Bonnet Design.
Bonnet situated victory verification.
Spindle-Ground and string rolled.
Spindle tip-Non pivoting tip close off sort - stellited,Regulating-stellited and delicate situated.
Bonnet pusher - silver plated for hostile to annoying solidifying for expanded stem cycle life.
Tidy top shields stem strings from facades pollution.
Release tight seal with low working torque.
Specification for Stainless Steel, Nickel Alloy 2 Valve Manifold Valves
| Size : | 1/4", 1/2" |
| End connection : | NPT,BSPT,Socket weld. |
| Working Pressure : | 6000 Psi (413 Bar) |
| Temperature Rating : | PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F(371 Deg. C) |
| Material of construction : | SS 316, SS 304, Monel,C.S. |
| Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75 |
|
| Stem packing : | PTFE, Grafoil. |
| Orifice : | Dia. 4.0 |
| All valves are 100% Factory tested prior to shipment. | |
Exports for Stainless Steel, Nickel Alloy 2 Valve Manifold Valves
Metal Ministry inc. exports Stainless Steel, Nickel Alloy 2 Valve Manifold Valves in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.
Metal Ministry inc. exports Stainless Steel, Nickel Alloy 2 Valve Manifold Valves in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.
If you have any enquiries related to Stainless Steel, Nickel Alloy 2 Valve Manifold Valves feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
