37 Degree Flare Male Connectors

Stainless Steel 304/304L,316/316L,904L 37 Degree Flare Male Connector Manufacturer

Inconel 600/625, Incoloy 800/800H, Monel 400/K500, Nickel 200/201, Hastelloy C22, C276 37 Degree Flare Male Connector Fittings Manufacturer & Exporter

Duplex Steel 2205, Brass Alloy Instrumentation 37 Degree Flare Male Connectors Fittings Supplier & Trader

METAL MINISTRY INC. is one of the leading 37 Degree Flare Male Connector Fittings Manufacturer, Exporter & Supplier. We are the main producer of a broad scope of great Male Connectors offered by us to our customers. These connectors are made with high thickness materials, for example, metal, stainless steel, plastics and copper. These Male Connectors have tough and minimally planned needle valves and offer in an extensive variety of sizes, setups, end associations, weight and temperature appraisals. These are additionally accessible in assortment of materials and particular according to the prerequisite of the customer.
37 Degree Flare Male Connector Exporter

Stainless Steel 304/304L 37 Degree Flare Male Connector, Stainless Steel 316/316L 37 Degree Flare Male Connector, Stainless Steel 904L 37 Degree Flare Male Connector, Inconel 600 37 Degree Flare Male Connector, Inconel 625 37 Degree Flare Male Connector, Incoloy 800/800H 37 Degree Flare Male Connector, Monel 400 37 Degree Flare Male Connector, Monel K500 37 Degree Flare Male Connector, Nickel 200 37 Degree Flare Male Connector, Nickel 201 37 Degree Flare Male Connector, Hastelloy C22 37 Degree Flare Male Connector, Hastelloy C276 37 Degree Flare Male Connector, Duplex Steel 2205 37 Degree Flare Male Connectors, Brass Alloy 37 Degree Flare Male Connector

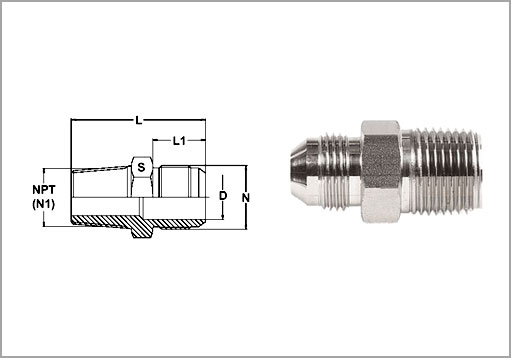

Specification for 37 Degree Flare Male Connector

Male Connector Stud End Thread : NPT
TUBE OD THREAD
UN / UNF		 THREAD
NPT/NPTF		 S L L1 D PART
NO.
mm inch N N1 mm mm mm mm
6 1/4 7/16 -20 1/8 -27 13 31 14 4.4 4-2F-MCN
6 1/4 7/16 -20 1/4 -18 14 36 14 4.4 4F-MCN
6 1/4 7/16 -20 3/8 -18 19 37 14 4.4 4-6F-MCN
6 1/4 7/16 -20 1/2 -14 22 43 14 4.4 4-8F-MCN
8 5/16 1/2 -20 1/8 -27 14 31 14 6 5-2F-MCN
8 5/16 1/2 -20 1/4 -18 14 36 14 6 5-4F-MCN
10 3/8 9/16 -18 1/8 -27 16 32 14.1 7.5 6-2F-MCN
10 3/8 9/16 -18 1/4 -18 16 36.3 14.1 7.5 6-4F-MCN
10 3/8 9/16 -18 3/8 -18 19 36.4 14.1 7.5 6F-MCN
10 3/8 9/16 -18 1/2 -14 22 42.9 14.1 7.5 6-8F-MCN
12 1/2 3/4 -16 1/4 -18 19 38.9 16.7 9.9 8-4F-MCN
12 1/2 3/4 -16 3/8 -18 19 38.9 16.7 9.9 8-6F-MCN
12 1/2 3/4 -16 1/2 -14 22 45.5 16.7 9.9 8F-MCN
12 1/2 3/4 -16 3/4 -14 27 47 16.7 9.9 8-12F-MCN
14/15/16 5/8 7/8 -14 3/8 -18 24 43.2 19.3 12.3 10-6F-MCN
14/15/16 5/8 7/8 -14 1/2 -14 24 48 19.3 12.3 10-8F-MCN
14/15/16 5/8 7/8 -14 3/4 -14 27 49.5 19.3 12.3 10-12F-MCN
18/20 3/4 1 1/16 -12 1/2 -14 27 52.3 21.9 15.5 12-8F-MCN
18/20 3/4 1 1/16 -12 3/4 -14 27 52.3 21.9 15.5 12F-MCN
18/20 3/4 1 1/16 -12 1 -11.5 36 57.1 21.9 15.5 12-16F-MCN
25 1 1 5/16 -12 3/4 -14 36 53.6 23.1 21.5 16-12F-MCN
25 1 1 5/16 -12 1 -11.5 36 58.4 23.1 21.5 16F-MCN
28/30/32 1 1/4 1 5/8 -12 1 -11.5 46 61.4 24.3 27.5 20-16F-MCN
28/30/32 1 1/4 1 5/8 -12 1 1/4 -11.5 46 62.2 24.3 27.5 20F-MCN
35/38 1 1/2 1 7/8 -12 1 1/4 -11.5 50 67.3 27.5 33 24-20F-MCN
35/38 1 1/2 1 7/8 -12 1 1/2 -11.5 50 68.1 27.5 33 24F-MCN

Male Connector Stud End Thread : BSPT
TUBE OD THREAD
UN / UNF		 THREAD
NPT/NPTF		 S L L1 D PART
NO.
mm inch N N1 mm mm mm mm
6 1/4 7/16 -20 1/8 -28 13 30.7 14 4.4 4-2F-MCR
6 1/4 7/16 -20 1/4 -19 14 35.3 14 4.4 4F-MCR
8 5/16 1/2 -20 1/8 -28 14 30.7 14 6 5-2F-MCR
8 5/16 1/2 -20 1/4 -19 14 35.3 14 6 5-4F-MCR
10 3/8 9/16 -18 1/4 -19 16 35.6 14.1 7.5 6-4F-MCR
10 3/8 9/16 -18 3/8 -19 19 35.6 14.1 7.5 6F-MCR
10 3/8 9/16 -18 1/2 -14 22 41.1 14.1 7.5 6-8F-MCR
12 1/2 3/4 -16 1/4 -19 19 38.1 16.7 9.9 8-4F-MCR
12 1/2 3/4 -16 3/8 -19 19 38.1 16.7 9.9 8-6F-MCR
12 1/2 3/4 -16 1/2 -14 22 43.7 16.7 9.9 8F-MCR
14/15/16 5/8 7/8 -14 3/8 -19 24 41.9 19.3 12.3 10-6F-MCR
14/15/16 5/8 7/8 -14 1/2 -14 24 46.7 19.3 12.3 10-8F-MCR
14/15/16 5/8 7/8 -14 3/4 -14 27 48.3 19.3 12.3 10-12F-MCR
18/20 3/4 1 1/16 -12 1/2 -14 27 20.8 21.9 15.5 12-8F-MCR
18/20 3/4 1 1/16 -12 3/4 -14 27 50.8 21.9 15.5 12F-MCR
18/20 3/4 1 1/16 -12 1 -11 36 56.6 21.9 15.5 12-16F-MCR
25 1 1 5/16 -12 3/4 -14 36 53.1 23.1 21.5 16-12F-MCR
25 1 1 5/16 -12 1 -11 36 57.9 23.1 21.5 16F-MCR
28/30/32 1 1/4 1 5/8 -12 1 -11 46 60.2 24.3 27.5 20-16F-MCR
28/30/32 1 1/4 1 5/8 -12 1 1/4 -11 46 61 24.3 27.5 20F-MCR
35/38 1 1/2 1 7/8 -12 1 1/4 -11 50 65.5 27.5 33 24-20F-MCR
35/38 1 1/2 1 7/8 -12 1 1/2 -11 50 66.3 27.5 33 24F-MCR

Male Connector Stud End Thread : BSP
TUBE OD THREAD
UN / UNF		 THREAD BSPT S L L1 D PART
NO.
mm inch N N1 mm mm mm mm
6 1/4 7/16 -20 1/8 -28 16 28.7 22.5 4.4 4-2F-MCG
6 1/4 7/16 -20 1/4 -19 19 32 22.7 4.4 4F-MCG
6 1/4 7/16 -20 3/8 -19 22 33 23.7 4.4 4-6F-MCG
6 1/4 7/16 -20 1/2 -14 30 38.6 26 4.4 4-8F-MCG
8 5/16 1/2 -20 1/8 -28 16 28.7 22.5 6 5-2F-MCG
8 5/16 1/2 -20 1/4 -19 19 32 22.7 6 5-4F-MCG
8 5/16 1/2 -20 3/8 -19 22 33 23.7 6 5-6F-MCG
10 3/8 9/16 -18 1/8 -28 16 28.7 22.5 7.5 6-2F-MCG
10 3/8 9/16 -18 1/4 -19 19 32 22.7 7.5 6-4F-MCG
10 3/8 9/16 -18 3/8 -19 22 33 23.7 7.5 6F-MCG
10 3/8 9/16 -18 1/2 -14 30 38.6 26 7.5 6-8F-MCG
12 1/2 3/4 -16 1/4 -19 19 35 25.7 9.9 8-4F-MCG
12 1/2 3/4 -16 3/8 -19 22 36 26.7 9.9 8-6F-MCG
12 1/2 3/4 -16 1/2 -14 30 41.4 28.8 9.9 8F-MCG
12 1/2 3/4 -16 3/4 -14 36 42.4 29.8 9.9 8-12F-MCG
14/15/16 5/8 7/8 -14 3/8 -19 24 39.1 29.8 12.3 10-6F-MCG
14/15/16 5/8 7/8 -14 1/2 -14 30 43.9 31.3 12.3 10-8F-MCG
14/15/16 5/8 7/8 -14 3/4 -14 36 45 32.4 12.3 10-12F-MCG
18/20 3/4 1 1/16 -12 1/2 -14 30 46.7 34.1 15.5 12-8F-MCG
18/20 3/4 1 1/16 -12 3/4 -14 36 47.5 34.9 15.5 12F-MCG
18/20 3/4 1 1/16 -12 1 -11 46 52.6 36.7 15.5 12-16F-MCG
25 1 1 5/16 -12 3/4 -14 36 48.5 35.9 21.5 16-12F-MCG
25 1 1 5/16 -12 1 -11 46 53.6 37.7 21.5 16F-MCG
25 1 1 5/16 -12 1 1/4 -11 50 55.1 39.7 21.5 16-20F-MCG
28/30/32 1 1/4 1 5/8 -12 1 1/4 -11 50 56.8 40.9 27.5 20F-MCG
28/30/32 1 1/4 1 5/8 -12 1 1/2 -11 55 56.9 41 27.5 20-24F-MCG
35/38 1 1/2 1 7/8 -12 1 1/4 -11 50 60.4 44.5 33 24-20F-MCG
35/38 1 1/2 1 7/8 -12 1 1/2 -11 55 61 45.1 33 24F-MCG

Male Connector Stud End Thread :UNF
TUBE OD THREAD
UN / UNF		 THREAD
UN / UNF		 S L L1 D PART
NO.
mm inch N N1 mm mm mm mm
6 1/4 7/16 -20 7/16 -20 14 31.2 22 4.4 4-7F-MCU
6 1/4 7/16 -20 1/2 -20 17 31.2 22 4.4 4-8F-MCU
6 1/4 7/16 -20 9/16 -18 17 32.7 22.8 4.4 4-9F-MCU
6 1/4 7/16 -20 3/4 -16 22 35 23.9 4.4 4-12F-MCU
8 5/16 1/2 -20 1/2 -20 17 31.2 22 6 5-8F-MCU
8 5/16 1/2 -20 9/16 -18 17 33 23 6 5-9F-MCU
10 3/8 9/16 -18 7/16 -20 17 32.2 23 7.5 5-7F-MCU
10 3/8 9/16 -18 1/2 -20 17 32.2 23 7.5 6-8F-MCU
10 3/8 9/16 -18 9/16 -18 17 33 23 7.5 6-9F-MCU
10 3/8 9/16 -18 3/4 -16 22 35.1 24 7.5 6-12F-MCU
10 3/8 9/16 -18 7/8 -14 27 35 25.4 7.5 6-14F-MCU
12 1/2 3/4 -16 9/16 -18 22 36.6 26.7 9.9 8-9F-MCU
12 1/2 3/4 -16 3/4 -16 22 38.1 26.4 9.9 8-12F-MCU
12 1/2 3/4 -16 7/8 -14 27 40.7 28 9.9 8-14F-MCU
12 1/2 3/4 -16 1 1/16 -12 32 44.7 29.6 9.9 8-17F-MCU
14/15/16 5/8 7/8 -14 3/4 -16 27 41.7 30.6 12.3 10-12F-MCU
14/15/16 5/8 7/8 -14 7/8 -14 27 43.2 30.5 12.3 10-14F-MCU
14/15/16 5/8 7/8 -14 1 1/16 -12 32 47.2 32.1 12.3 10-17F-MCU
18/20 3/4 1 1/16 -12 3/4 -16 27 49.2 38 15.5 12F-MCU
18/20 3/4 1 1/16 -12 7/8 -14 27 47.7 35 15.5 12-14F-MCU
18/20 3/4 1 1/16 -12 1 1/16 -12 32 50 34.9 15.5 12-17F-MCU
18/20 3/4 1 1/16 -12 1 5/16 -12 41 50.5 35.4 15.5 12-21F-MCU
25 1 1 5/16 -12 7/8 -14 36 52.8 39.9 21.5 16-14F-MCU
25 1 1 5/16 -12 1 1/16 -12 36 50.5 36.6 21.5 16-17F-MCU
25 1 1 5/16 -12 1 3/16 -12 36 52 37.1 21.5 16-19F-MCU
25 1 1 5/16 -12 1 5/16 -12 41 52 37 21.5 16-21F-MCU
25 1 1 5/16 -12 1 5/8 -12 50 54.1 39.1 21.5 16-26F-MCU
28/30/32 1 1/4 1 5/8 -12 1 5/16 -12 46 59.1 44.2 27.5 20-21F-MCU
28/30/32 1 1/4 1 5/8 -12 1 5/8 -12 50 55.1 40.1 27.5 20-26F-MCU
35/38 1 1/2 1 7/8 -12 1 5/8 -12 55 60.4 45.5 33 24-26F-MCU
35/38 1 1/2 1 7/8 -12 1 7/8 -12 55 64.3 49.3 33 24-30F-MCU

Exports for 37 Degree Flare Male Connector

Metal Ministry inc. exports 37 Degree Flare Male Connector in various countries like India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia.

Metal Ministry inc. exports 37 Degree Flare Male Connector in various cities like Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo.

If you have any enquiries related to 37 Degree Flare Male Connector feel free to get back to us on :- Telephone : +91-22-66109947 / +919892171042, Email : enquiry@metalministry.in
